Service & Repair
Stock these before you need them. Repair kit 905279 covers all items marked * in the full parts list.
| Part # | Description | Covers | |
|---|---|---|---|
| 905279 | Spray Gun Repair Kit ★ Repair Kit | Items 10, 12, 16, 17, 20, 22, 24, 29, 37, 39 | |
| 905206 | Seal and Pin Kit (Kit of 5) Kit of 5 | Items 32, 34, 36 | |
| 905286 | Spray Head & Seal Kit | Items 9, 11 | |
| 905294 | Packing, Spring & Packing Nut Kit | Items 26, 27, 28 | |
| 905293 | Air Valve Assembly | Items 30–34 | |
| 905327 | Fluid Adjusting Knob, Spring & Pad Kit | Items 16, 17, 18 | |
| 905328 | Spreader Valve Assembly | Items 23, 24, 25 | |
| 905288 | Trigger, Stud & Screw Kit | Items 37, 38, 39 | |
| 905295 | Stud & Screw Kit (Kit of 5) Kit of 5 | Items 37, 39 |
Atomization
Each assembly includes the air cap and retaining ring. HE caps for maximum transfer efficiency; HVLP for ≤10 PSI at the horns; Conventional for high-CFM output.
| Part # | Air Cap | Type | CFM | Inlet PSI | Fan Pattern | |
|---|---|---|---|---|---|---|
| 905226 | 7E7 | High Efficiency | 10.8 | 22 PSI | 240–265mm | |
| 905229 | GPG1 | High Efficiency | 9.5 | 29 PSI | 270–290mm | |
| 905230 | GPG2 | HVLP | 15.9 | 26 PSI | 290–310mm | |
| 905235 | C86 | Conventional | 10.6 | 29 PSI | 275–290mm | |
| 905231 | C30 | Conventional | 10.8 | 29 PSI | 240–265mm | |
| 905209 | PR10 | Primer HE | 12.0 | 29 PSI | 265–305mm | |
| 905210 | PR30 | Primer HVLP | 16.0 | 21 PSI | 280–330mm |
Fluid Delivery
Always replace nozzle and needle as a matched pair. Three nozzle families: HE/HVLP for basecoat & clearcoat, Conventional for heavier materials, and Primer for PR10/PR30 caps.
HE / HVLP — Basecoat & Clearcoat (7E7, GPG1, GPG2 Caps)
| Size | Nozzle # | Needle # | |
|---|---|---|---|
| 1.2mm | 905259 | 905267 | |
| 1.3mm | 905261 | 905267 | |
| 1.4mm | 905261 | 905267 | |
| 1.5mm | 905261 | 905267 | |
| 1.6mm | 905263 | 905268 | |
| 1.8mm | 905264 | 905268 | |
| 2.0mm | 905265 | 905269 | |
| 2.2mm | 905331 | 905269 |
Conventional — C86 & C30 Caps
Primer — PR10 & PR30 Caps
| Size | Nozzle # | Needle # | |
|---|---|---|---|
| 1.4mm | 905213 | 905218 | |
| 1.6mm | 905214 | 905218 | |
| 1.8mm | 905215 | 905218 | |
| 2.0mm | 905216 | 905218 | |
| 2.5mm | 905217 | 905218 |
UV Primer — PR10 & PR30 Caps
Accessories
Gravity cups, air adjustment valves, adaptors, and ancillary items for the GPG platform.
| Part # | Description | |
|---|---|---|
| HAV-555 | Air Inlet Adjustment Valve with Digital Readout | |
| HAV-511 | Air Inlet Adjustment Valve with Analog Readout | |
| HAV-501 | Air Adjusting Valve & Gauge | |
| 905204 | Acetal Gravity Cup — 560mL | |
| 702576 | Aluminum Gravity Cup — 900mL | |
| 905205 | UV Gravity Cup — 560mL (Black) | |
| 802200 | DPC-43 DeKups® Adaptor | |
| SNF-43 | SNAP N FLOW™ Adaptor | |
| PRO-46-K3 | Protective Air Cap Cover for UV Materials (Kit of 3) |
Technical Reference

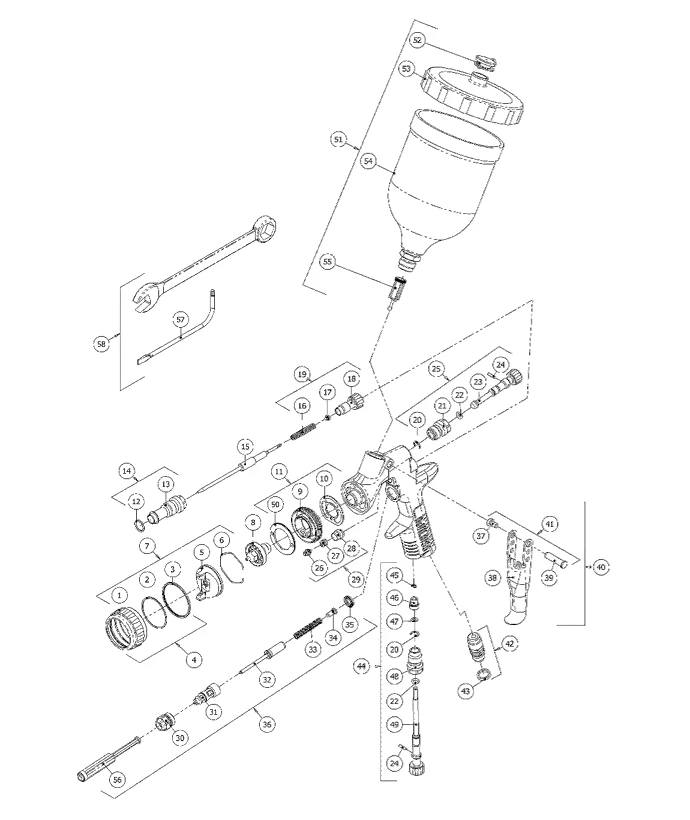

Reference item numbers against the All Parts table below. Items marked * are included in repair kit 905279.
Complete Reference
Every orderable spare part for the GPG. Items marked * are included in repair kit 905279.
| Item | Part # | Description | |
|---|---|---|---|
| 1 | — | Retaining Ring | |
| 2 | — | Slip Ring | |
| 3 | — | Retaining Ring Sub Assembly | |
| 4 | 905329 | Retaining Ring Sub Assembly | |
| 5 | — | Air Cap (see Air Caps section) | |
| 6 | 905208 | Spring Clip (Kit of 5) | |
| 7 | — | Air Cap & Retaining Ring (see Air Caps section) | |
| 8 | — | Fluid Nozzle (see Nozzles section) | |
| 9 | — | Spray Head | |
| 10 | 905287 | Gasket (Kit of 2) * | |
| 11 | 905286 | Spray Head Kit | |
| 12 | — | Body Bushing Seal * | |
| 13 | — | Body Bushing | |
| 14 | 905300 | Body Bushing & Seal | |
| 15 | — | Fluid Needle (see Nozzles section) | |
| 16 | — | Needle Spring * | |
| 17 | — | Spring Pad * | |
| 18 | — | Fluid Adjusting Knob | |
| 19 | 905327 | Fluid Adjusting Knob, Spring & Pad Kit | |
| 20 | — | Circlip * | |
| 21 | — | Valve Body | |
| 22 | — | O-Ring * | |
| 23 | — | Spreader Valve Adjusting Knob | |
| 24 | — | Spreader Valve Pin * | |
| 25 | 905328 | Spreader Valve Assembly | |
| 26 | — | Needle Packing | |
| 27 | — | Packing Spring | |
| 28 | — | Packing Nut | |
| 29 | 905294 | Packing, Spring & Packing Nut Kit * | |
| 30 | — | Air Valve Body | |
| 31 | — | Air Valve Cage | |
| 32 | — | Air Valve Poppet | |
| 33 | — | Air Valve Spring | |
| 34 | — | Air Valve Spring Pad | |
| 35 | 905290 | Air Valve Seal | |
| 36 | 905293 | Air Valve Assembly | |
| 37 | — | Trigger Screw * | |
| 38 | — | Trigger | |
| 39 | — | Trigger Stud * | |
| 40 | 905288 | Trigger, Stud & Screw Kit | |
| 41 | 905295 | Stud & Screw Kit (Kit of 5) | |
| 42 | 905305 | Air Inlet | |
| 43 | 905289 | Color ID Ring (4 Colors) | |
| 44 | 905277 | Airflow Valve | |
| 45 | 905200 | Circlip (Kit of 5) | |
| 46 | — | Valve Head | |
| 47 | — | Washer | |
| 48 | — | Valve Body | |
| 49 | — | Valve Adjusting Knob | |
| 50 | 905297 | Baffle Plate | |
| 51a | 905204 | Plastic Cup Kit (560mL) | |
| 51b | 702576 | Aluminium Cup Kit (900mL) | |
| 52 | 905202 | Drip Check Lid (Kit of 5) | |
| 53 | 905203 | Gravity Cup Lid | |
| 54 | — | Gravity Cup | |
| 55 | 905207 | Filter, 50 Mesh (Kit of 5) | |
| 56 | — | Air Valve Service Tool | |
| 57 | 905307 | Torx Driver (Kit of 2) | |
| 58 | 905296 | Tool Kit |
