DeVilbiss GPG Gravity Spray Gun

(Showing 13 of 13)



DeVilbiss · Automotive Refinishing · Authorized Distributor

DeVilbiss GPG Gravity Spray Gun
Multi-Purpose Professional Spray Gun · 13 Kit Configurations

Basecoat · Clearcoat · Primer · UV Primer · Solvent & Waterborne · 6 Air Cap Options · Anodized Drop-Forged Aluminum Body

HVLP & High Efficiency 6 Air Cap Options 500g Gun Body 1/4” Universal Inlet
 DeVilbiss GPG Gravity Spray Gun
Need help selecting the right GPG kit, air cap, or nozzle size for your application?   CET’s technical team will confirm the right configuration before you order. 586-210-0555 sales@cetinc.com
500g
Gun Weight
6
Air Cap Options
13
Kit Configurations
1.2 – 2.5mm
Full Nozzle Range
HVLP & HE
Atomization Types
1/4” Universal
Air Inlet Thread

Overview

Solid Performance.
Exceptional Value. Every Application.

The DeVilbiss GPG Gravity Spray Gun addresses the market’s demand for a cost-effective, multi-purpose spray gun without compromising the atomization quality that professional automotive refinishers depend on. Built on an anodized, drop-forged aluminum body with lightweight aluminum controls and smooth trigger action, the GPG delivers the legendary DeVilbiss fit, feel, and performance at an accessible price point.

The GPG is engineered around a comprehensive air cap system — six caps covering high-efficiency, HVLP, and conventional atomization across basecoat, clearcoat, primer, and UV primer applications. The large array of fluid nozzles (1.2mm through 2.5mm) and three needle families offer precise flow rate matching for every material viscosity, from thin waterborne basecoats to thick UV primers. A wide range of kit configurations allows shops to spec exactly the setup they need.

Suitable for all primers including the latest generation waterborne and UV materials. Available as a complete kit with your choice of aluminum or acetal gravity cup, HAV-501 or HAV-555 air inlet gauge, and either the GPG2 HVLP or 7E7 High Efficiency air cap.

Key Features

Built for the Body Shop.
Configured for Every Job.

Anodized Drop-Forged Aluminum Body Rugged anodized and forged aluminum gun body with lightweight aluminum controls for a long working life — the same construction quality that defines DeVilbiss professional refinishing guns.
Six Air Cap Options — Every Application Covered High-efficiency (7E7, GPG1), HVLP (GPG2, PR30), and conventional (C86, C30) caps cover basecoats, clearcoats, primers, and UV primers. Each delivers optimized atomization for its specific material category and viscosity range.
Ultra High Flow Fluid Nozzles Seven HE/HVLP nozzle sizes (1.2–2.2mm), three conventional nozzle sizes (1.4–1.8mm), five primer nozzle sizes (1.4–2.5mm), and UV primer nozzles. Three needle families match every nozzle range.
Smooth Air Valve — Greater Blend Control Robust and smooth air valve design provides greater air and paint control to help ease fade-outs and blend-ins — critical for seamless spot repair and panel-to-panel blending on complex refinish jobs.

Air Cap Selection

Air Cap Performance Guide

Six air caps available for the GPG — choose based on atomization type, application, and required inlet pressure. All are available individually for replacement or retooling an existing gun.

Basecoat & Clearcoat Caps

Air CapPart No.TypeInlet PSIAir (SCFM)Fan PatternNozzle Sizes
7E7 905226 High Efficiency 16–22 PSI 10.8 SCFM (305 l/min) 9.5–10.5” 1.2–1.4mm
GPG1 905229 High Efficiency 29 PSI 9.5 SCFM (270 l/min) 10.6–11.4” See nozzle table
GPG2 905230 HVLP 22–26 PSI 15.9 SCFM (450 l/min) 11.5–12.0” 1.2–2.2mm
C86 905235 Conventional 29–44 PSI 10.6 SCFM (300 l/min) 10.5–11.5” 1.4–1.8mm
C30 905231 Conventional 29–58 PSI 10.8 SCFM (305 l/min) 9.5–10.5” 1.4–1.8mm

Primer Caps

Air CapPart No.TypeInlet PSIAir (SCFM)Fan PatternNozzle Sizes
PR10 905209 High Efficiency 26–29 PSI 12.0 SCFM (340 l/min) 10.5–12.0” 1.4–2.5mm, UV1, UV2
PR30 905210 HVLP 17–21 PSI 16.0 SCFM (450 l/min) 11.0–13.0” 1.4–2.5mm, UV1, UV2

Kit Configurations

13 Complete Kit Configurations

All kits include the GPG gun body. Select based on your primary application, preferred air cap, and cup type. HAV-501 is an analog gauge; HAV-555 is digital readout.

HVLP — GPG2 Air Cap — Basecoat / Clearcoat

Kit No.Air CapNozzle SizesCupGauge

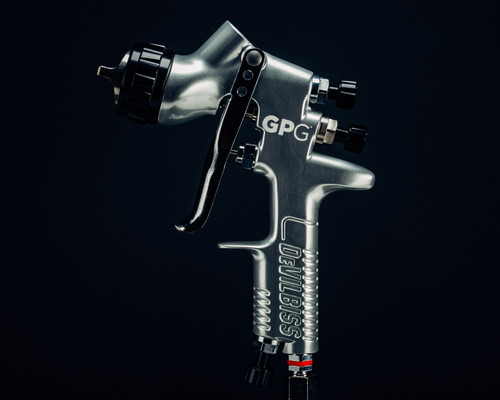

905016 GPG2 HVLP 1.3, 1.4, 1.5mm 900ml Aluminum HAV-501
905012 GPG2 HVLP 1.3, 1.5, 1.8mm 900ml Aluminum HAV-501
905013 GPG2 HVLP 1.3, 1.5, 1.8mm 560ml Acetal HAV-501
905014 GPG2 HVLP 1.8, 2.2mm 560ml Acetal No gauge

High Efficiency — 7E7 Air Cap — Basecoat / Clearcoat

Kit No.Air CapNozzle SizesCupGauge
905015 7E7 HE 1.2, 1.3, 1.4mm 900ml Aluminum HAV-501
905019 7E7 HE 1.3, 1.4mm No cup HAV-555 Digital
905020 7E7 HE 1.3, 1.4mm 900ml Aluminum HAV-555 Digital
905021 7E7 HE 1.2, 1.3mm No cup HAV-555 Digital
905022 7E7 HE 1.2, 1.3mm 900ml Aluminum HAV-555 Digital

Primer & UV Primer Kits — PR10 & PR30 Air Caps

Kit No.Air CapsNozzle SizesCupGauge
905026 PR10 & PR30 1.4, 1.6mm (each) 900ml Aluminum No gauge
905027 PR10 & PR30 1.8, 2.0mm (each) 900ml Aluminum No gauge
905028 PR10 & PR30 2.5mm (each) 900ml Aluminum No gauge

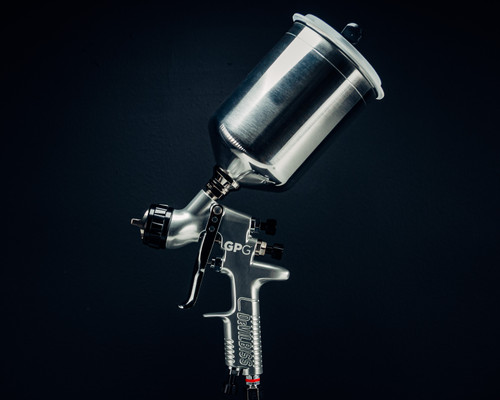

905036 PR10 & PR30 UV1, UV2 (each) 560ml UV Cup No gauge

Fluid Nozzles & Needles

Fluid Nozzle & Needle Reference

Three needle families cover the full nozzle range. Always confirm needle compatibility before ordering replacement nozzles.

HE / HVLP Nozzles (7E7, GPG1, GPG2)

Part No.SizeNeedle
905259 1.2mm 905267
905261 1.3mm 905267
905261 1.4mm 905267
905261 1.5mm 905267
905263 1.6mm 905268
905264 1.8mm 905268
905265 2.0mm 905269
905331 2.2mm 905269

Conventional Nozzles (C86, C30)

Part No.SizeNeedle
905223 1.4mm 905267
905224 1.6mm 905268
905225 1.8mm 905268

Primer Nozzles (PR10, PR30)

Part No.SizeNeedle
905213 1.4mm 905218
905214 1.6mm 905218
905215 1.8mm 905218
905216 2.0mm 905218
905217 2.5mm 905218
905211 UV1 905219
905212 UV2 905219

Spare Parts & Service

GPG Spare Parts, Exploded View & Full Parts List

Service kits, air cap assemblies, fluid nozzles, needles, cups, accessories & all individual spare parts with item numbers. Includes exploded view diagram for reference.

 View All Spare Parts →

DeVilbiss GPG — Brochure & Manual

Full product brochure with specifications, air cap performance guide, and complete downloadable service manual with exploded view and all part numbers.

 → GPG Brochure ↓ Download Manual

CET is an authorized DeVilbiss distributor. Need help selecting the right GPG kit, confirming the correct air cap and nozzle combination for your coating, or sourcing a spare part? Call or text 586-210-0555  ·  sales@cetinc.com  ·  Based on over 20 years of finishing equipment experience.
