What air caps does the CAT-X use?

A pressure-reduced cap 24-1352 (1.0-1.7 mm orifices, 11 CFM) and an HVLP cap 24-1411 (full 0.8-2.2 mm range, 13.5 CFM). The 1.9 mm and 2.2 mm nozzles require the HVLP cap.

Which repair kit fits the CAT-X?

Kit 10-161 covers the soft-seal and wear items: O-rings, needle seal, packing spring and nut, needle return spring, spring seat and air-valve seals.

C.A. Technologies CAT-X Gravity Feed Spray Gun Spare Parts & Exploded Diagram

01. Gun Breakdown

Interactive exploded view of the complete CAT-X gun. Click a numbered dot on the diagram, or find a part in the table.

C.A. Technologies CAT-X exploded parts diagram

Click a numbered dot to view the part & add it to your cart

Item	Part No.	Description	Order
1	See Chart	Air Cap Assembly (see Air-Cap Selector) See Chart	Select Size
5	98-8028	O-Ring In Repair Kit
6	See Chart	Fluid Nozzle (see Nozzle Selector) See Chart	Select Size
7	60-1360	Nozzle Body
8	60-1386	Air Baffle
9	98-8011	O-Ring (2 req'd) In Repair Kit
10	60-1362	Nozzle Body Carrier
11	60-1365	Needle Seal In Repair Kit
12	60-1366	Packing Spring In Repair Kit
13	60-1364	Packing Nut In Repair Kit	In Repair Kit
14	60-1378	Trigger Pivot Screw
15	60-1363	Fluid Inlet Insert
16	98-8014	O-Ring In Repair Kit
17	See Chart	Fluid Needle (see Needle Selector) See Chart	Select Size
18	60-204	Needle Return Spring In Repair Kit
19	60-205	Spring Seat In Repair Kit
20	60-1377	Material Control Locknut
21	60-1376	Material Control Knob
22	60-1375	Rear Cap In Repair Kit
23	61-1003	Air Valve Spring In Repair Kit
24	98-5125	O-Ring In Repair Kit
25	61-1032	Air Valve Poppet
26	60-1371	Air Valve Stem
27	98-8012	O-Ring In Repair Kit
28	60-1379	Air Valve Assembly
29	60-1368	Trigger Pivot Pin
32	60-1385	Fan Control Assembly
33	98-5110	O-Ring In Repair Kit
34	60-1369	Trigger Barrel
35	See Outfits	Machined Handle (Black PTFE / Classic finishes) In CAT-Pack	See Outfits
36	60-104	Air Inlet Fitting
37	60-1319	Air Control Assembly
38	60-1370	Trigger
39	98-7013	O-Ring In Repair Kit

02. Air Caps & Fluid Nozzles

Items 1, 6 and 17 are selected to match your material. Pick an air cap by compliance need, then a fluid nozzle & needle set by orifice size.

Air Caps (Item 1)

Part No.	Type	Orifice Range	Max Pattern	Air Use	Order
24-1352	Pressure-Reduced	1.0–1.7 mm	up to 14"	11 CFM @ 35 PSI
24-1411	HVLP Compliant	0.8–2.2 mm	up to 13"	13.5 CFM @ 29 PSI

Fluid Nozzle & Needle Sets (Items 6 & 17)

Orifice	Fluid Nozzle	Fluid Needle
0.8 mm	33-0208	40-1408
1.0 mm	33-0210	40-1410
1.2 mm	33-0212	40-1412
1.3 mm	33-0213	40-1413
1.4 mm	33-0214	40-1414
1.5 mm	33-0215	40-1415
1.7 mm	33-0217	40-1417
1.9 mm HVLP cap only	33-0219	40-1419
2.2 mm HVLP cap only	33-0222	40-1422

03. Repair Kit

Keep the CAT-X sealing and spraying with the factory rebuild kit.

10-161

CAT-X Repair Kit

The factory soft-seal / wear kit for the CAT-X — every item marked “In Repair Kit” in the breakdown above (incl. the packing nut, item 13).

Kit Contents

What It Replaces

O-Ring
O-Ring (2 req'd)
Needle Seal
Packing Spring
Packing Nut
O-Ring
Needle Return Spring
Spring Seat
Rear Cap
Air Valve Spring
O-Ring
O-Ring
O-Ring
O-Ring

04. Complete Outfits (CAT-Packs)

Prefer a ready-to-spray package? The CAT-X ships as CAT-Pack outfits (Black PTFE or Classic handle, aluminum or PPS cup, automotive or wood setup).

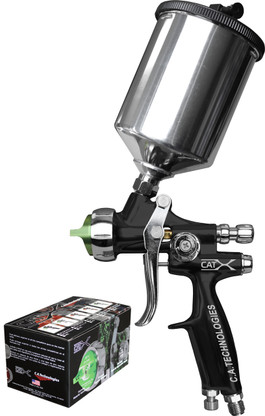

CAT-X-B-A

Cat-X CAT PACK w/ Aluminum Cup, Black PTFE Design, Auto Setup (1.3,1.4,1.5 Tips) (CAT-X-B-A)

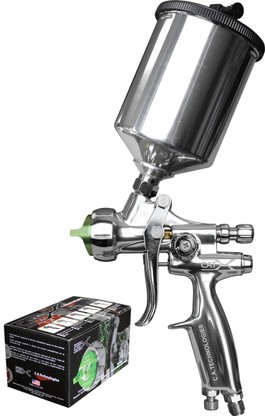

CAT-X-C-A

Cat-X CAT PACK w/ Aluminum Cup, Classic Design, Auto Setup (1.3,1.4,1.5 Tips) (CAT-X-C-A)

CAT-X-B-A-PPS

Cat-X CAT PACK w/ PPS Cup Kit, Black Teflon Design, Auto Setup (1.3,1.4,1.5 Tips) (CAT-X-B-A-PPS)

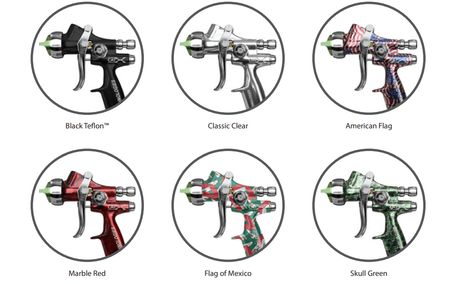

CAT-X-C-A-PPS

Cat-X CAT PACK w/ PPS Cup Kit, Classic Design, Auto Setup (1.3,1.4,1.5 Tips) (CAT-X-C-A-PPS)

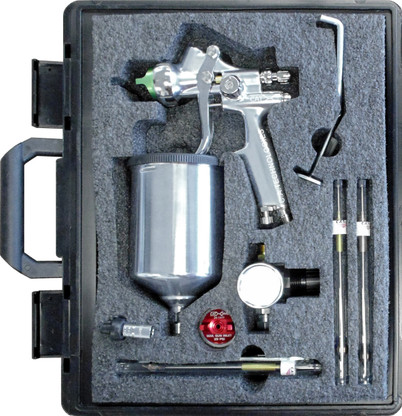

CAT-X-B-W

Cat-X CAT PACK w/ Aluminum Cup, Black Teflon Design, Wood Setup (1.0,1.3,1.5,1.7 Tips) (CAT-X-B-W)

CAT-X-C-W

Cat-X CAT PACK w/ Aluminum Cup, Classic Design, Wood Setup (1.0, 1.3, 1.5, 1.7 Tips) (CAT-X-C-W)

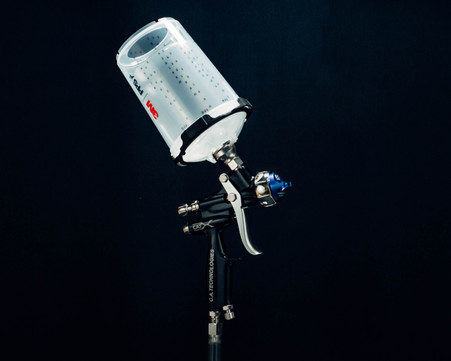

CAT-X-B-W-PPS

Cat-X CAT PACK w/ PPS Kit, Black Teflon Design, Wood Setup (1.0, 1.3, 1.5, 1.7 Tips) (CAT-X-B-W-PPS)

CAT-X-C-W-PPS

Cat-X CAT PACK w/ PPS Kit, Classic Design, Wood Setup (1.0, 1.3, 1.5, 1.7 Tips) (CAT-X-C-W-PPS)
