Description
Schulz Piston Compressor 580VV20X-1 (932.9339-0)
Schulz 580VV20X-1 Industrial Air Compressor: Engineered for Reliable Performance
The Schulz 580VV20X-1 industrial air compressor is a powerful solution for professional and industrial use. With a robust 5 HP motor and an 80-gallon vertical ASME-certified tank, this compressor provides consistent airflow and reliable performance for a wide range of applications.
Why Choose the Schulz 580VV20X-1 Industrial Air Compressor?
- Durable Build: Constructed with heavy-duty cast iron and a powder-coated tank for maximum durability.
- High-Performance Output: Operates at a maximum pressure of 175 PSI, delivering 15.6 CFM of consistent airflow.
- Safety First: Equipped with ASME-certified safety relief valves, a pressure gauge, and a manual condensate drain.
- Ease of Maintenance: Features balanced drive pulleys and an enclosed metal belt guard for safe and simple upkeep.
Specifications
- Motor: 5 HP single-phase, 230V
- Maximum Pressure: 175 PSI
- Flow Rate: 15.6 CFM
- Tank Size: 80-gallon vertical ASME-certified
- Dimensions: 31.5" x 25.2" x 78"
- Weight: 480 lbs
1. Built to Last
Designed with rugged materials, the Schulz 580VV20X-1 ensures durability and reliable operation in demanding industrial environments.
2. Efficient Performance
The 5 HP motor and vertical tank design offer consistent airflow, making it ideal for powering heavy-duty tools and processes.
3. Safe and Easy to Maintain
ASME-certified components and user-friendly features, like the manual condensate drain, make maintenance straightforward and ensure secure operation.
Industrial Power You Can Depend On
Whether in workshops, manufacturing plants, or service stations, the Schulz 580VV20X-1 industrial air compressor delivers exceptional reliability and performance. Backed by CET’s fastest shipping and best customer service, this compressor is the perfect choice for your business needs.
Shipping Disclaimer
Shipping times vary by location. Contact CET for expedited delivery and installation support.
Related Models
Other Schulz Piston Air Compressors
Compare the Schulz Piston compressor range below — every model is CET Verified and supported by our technical team. Need help choosing? Ask for a CET sizing match.
| Motor | Displacement | FAD @ Max | Tank | Power | View |
|---|---|---|---|---|---|

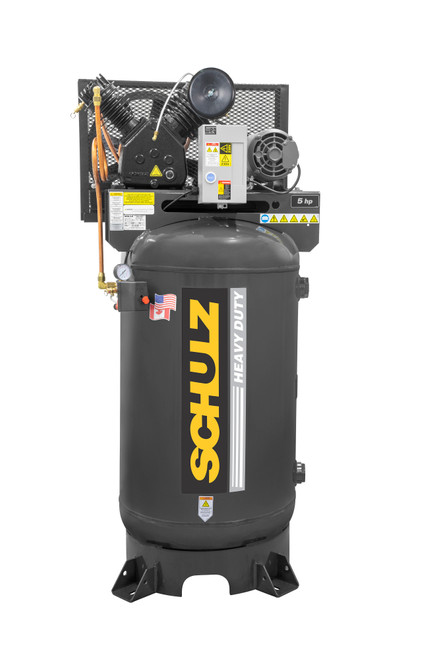

| 5 HP | 20 CFM | 15.6 CFM | 80 Vertical | 3-PHASE | View |
| 5 HP | 20 CFM | 15.6 CFM | 80 Vertical | 1-PHASE | Current |
| 5 HP | 20 CFM | 15.9 CFM | 80 Vertical | 3-PHASE | View |

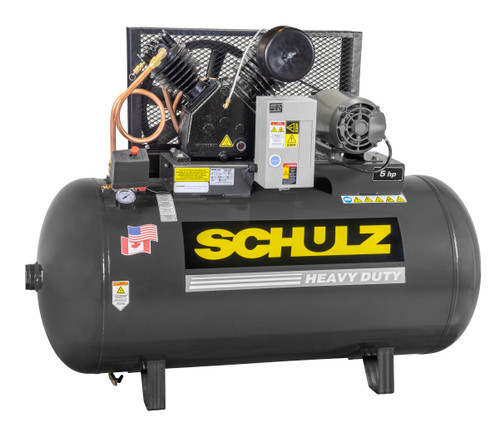

| 5 HP | 20 CFM | 15.6 CFM | 80 Horizontal | 3-PHASE | View |
| 5 HP | 20 CFM | 15.9 CFM | 80 Vertical | 1-PHASE | View |
| 5 HP | 20 CFM | 14.2 CFM | Vertical | 3-PHASE | View |
| 5 HP | 20 CFM | 14.2 CFM | Horizontal | 1-PHASE | View |
| 5 HP | 20 CFM | 15.6 CFM | 80 Horizontal | 1-PHASE | View |
| 5 HP | 20 CFM | 15.8 CFM | 80 Vertical | 1-PHASE | View |
| 5 HP | 20 CFM | 14.2 CFM | Vertical | 1-PHASE | View |
| 5 HP | 20 CFM | 14.2 CFM | Horizontal | 3-PHASE | View |
| 7.5 HP | 30 CFM | 20.1 CFM | 80 Horizontal | 3-PHASE | View |
| 7.5 HP | 30 CFM | 20.1 CFM | 80 Horizontal | 1-PHASE | View |

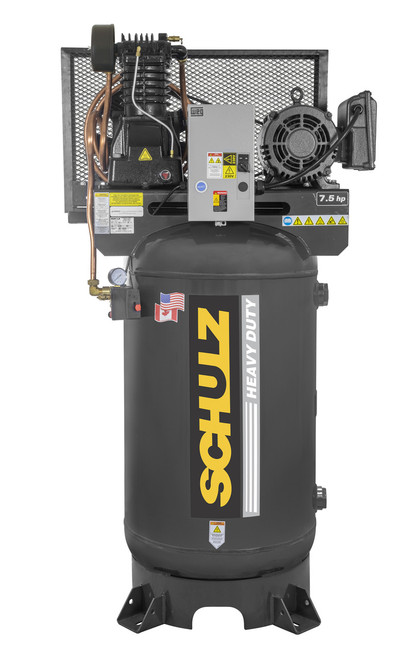

| 7.5 HP | 30 CFM | 20.1 CFM | 80 Vertical | 1-PHASE | View |
| 7.5 HP | 30 CFM | 21.6 CFM | 80 Vertical | 1-PHASE | View |
| 7.5 HP | 30 CFM | 20.1 CFM | 80 Vertical | 3-PHASE | View |
| 7.5 HP | 30 CFM | 21.6 CFM | 80 Vertical | 3-PHASE | View |
| 10 HP | 40 CFM | 28 CFM | 120 Vertical | 3-PHASE | View |
| 10 HP | 40 CFM | 28 CFM | 120 Horizontal | 3-PHASE | View |
| 10 HP | 40 CFM | 28.4 CFM | 120 Horizontal | 3-PHASE | View |
| 15 HP | 60 CFM | 45.2 CFM | 120 Horizontal | 3-PHASE | View |
| 15 HP | 60 CFM | 45.2 CFM | 120 Vertical | 3-PHASE | View |
| 20 HP | 80 CFM | 58 CFM | 102 Horizontal | 3-PHASE | View |
| 20 HP | 80 CFM | 58.4 CFM | 120 Horizontal | 3-PHASE | View |
Not sure which Schulz Piston compressor fits your shop? Call or text 586-210-0555 for a CET sizing match.
Common Questions
Frequently Asked Questions
- How much CFM do I actually need?
- Add up the air demand of every tool that runs at once and add headroom for leaks and growth. This model delivers 15.6 CFM (FAD) at 175 psig. Undersizing causes pressure drops; oversizing wastes energy. Call or text 586-210-0555 with your tool list and CET will size it.
- Single-phase or three-phase — which do I need?
- This unit is wired single-phase, common in small shops. Confirm your building’s available service before ordering — voltage and phase must match. Unsure? Call or text 586-210-0555.
- Piston or rotary screw — which is right for me?
- Piston (reciprocating) compressors are ideal for intermittent duty and lower cost of entry. If you run air most of the day, a rotary screw is better for continuous duty. CET carries both — call or text 586-210-0555 to compare.
- Do I need an air dryer with it?
- For finishing, painting, and instrument air, yes — a refrigerated dryer removes moisture that rusts piping and ruins finishes. CET can match a Schulz ADS dryer to this compressor’s output; call or text 586-210-0555.
