Description

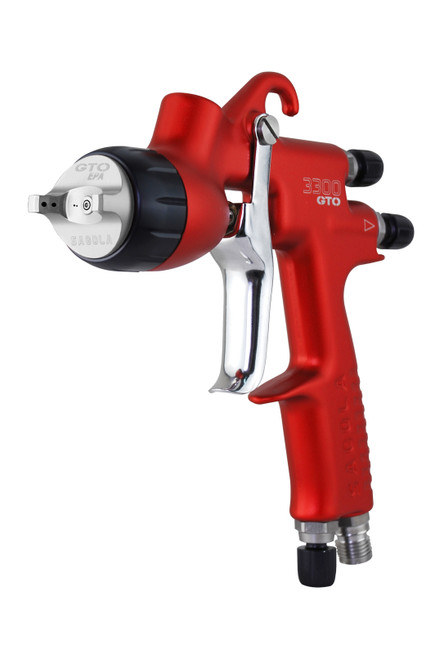

Sagola 3300 GTO 1.40 mm EPA Spray Gun
1.40 mm · EPA
EPA — 1.40 mm
Emissions-compliant primer cap for primers and HS primers.
Mid-high range, competitively priced
The result of fusing two of Sagola's most renowned guns — built to the highest standards with strict emissions compliance.
Highest standards, best warranty
The highest Sagola manufacturing standards and a superb 3-year warranty, in strict compliance with the most demanding emissions standards via EPA and HVLP systems.
The fusion of two legends
The 3300 GTO is the result of merging two of Sagola's most renowned products: the 3300 PRO (industry) and the 4100 GTO (bodyshop).
Versatile, wide range of solutions
At the forefront of ergonomics, balance and comfort. A light but robust aluminium and stainless body for maximum robustness and minimum maintenance.
Anodized, anti-corrosive
High-resistance anodizing with anti-corrosive protection, for an easier cleaning and maintenance process.
Every cap in the Sagola 3300 GTO range
Five GTO caps span primer, high-build and finish work — EPA and HVLP for compliant primers, 64S and 62S for high-thickness fillers, and EVO for wet-on-wet primers and finishes.
Compliant primers
Emissions-compliant primer cap for primers and HS primers.
HVLP primers
HVLP-compliant primer cap for maximum transfer efficiency.
Wet-on-wet & finishes
Wet-on-wet primers and industrial finishes, with high application speed on large surfaces.
High-build primers
A high-thickness primer cap for heavy build.
Fillers
A spray-gun filler cap for the heaviest materials.
Technical data
| Weight without cup | 474.8 g. |
|---|---|
| Dimensions without cup | 18.2 x 1.9 x 17.8 cm. |
| Air inlet couplings | BSP 1/4” M |
| Cup capacity | 650 ml |
| Cup | Removable anti-drip system |
| Maximum design pressure | 8 bar |
| Air inlet pressure max | 2 bar |
| Maximum recommended application distance GTO EPA | 18 - 20 cm. |
| Maximum recommended application distance GTO HVLP | 12 - 15 cm. |
| Average paint output flow (nozzle 1.4 mm. 20”) GTO EPA | 179 g/min |
| Average paint output flow (nozzle 1.4 mm. 20”) GTO HVLP | 145 g/min |
| Average paint output flow (nozzle 1.4 mm. 20”) GTO EVO | 179 g/min |
| Air consumption (2 bar inlet) GTO EPA | 250 L/min |
| Air consumption (2 bar inlet) GTO HVLP | 360 L/min |
| Air consumption (2 bar inlet) GTO EVO | 255 L/min |
| Fan size GTO EPA [1.8] | 250 mm. |
| Fan size GTO HVLP [1.8] | 250 mm. |
| Fan size GTO EVO [1.4] | 280 mm. |
| Average sound pressure level | 80 dB |
Parts diagram, manuals & spares
Exploded parts breakdown for the Sagola 3300 GTO, downloadable manuals & brochures, and every needle, nozzle and air cap available as a spare.
