3300 GTO

(Showing 10 of 10)
Sagola
Automotive Refinishing · Spray Guns
3300GTO
The versatile all-rounder.

Sagola's mid-high range, reborn — the fusion of the 3300 PRO and 4100 GTO. A forged, anodized body with EPA and HVLP compliant caps, backed by a 3-year warranty.

3-yrWarranty
EPA + HVLPCompliant
650 mlAnti-drip cup
Sagola 3300 GTO spray gun
Why the 3300 GTO

Mid-high range, competitively priced

The result of fusing two of Sagola's most renowned guns — built to the highest standards with strict emissions compliance.

Highest standards, best warranty

The highest Sagola manufacturing standards and a superb 3-year warranty, in strict compliance with the most demanding emissions standards via EPA and HVLP systems.

The fusion of two legends

The 3300 GTO is the result of merging two of Sagola's most renowned products: the 3300 PRO (industry) and the 4100 GTO (bodyshop).

Versatile, wide range of solutions

At the forefront of ergonomics, balance and comfort. A light but robust aluminium and stainless body for maximum robustness and minimum maintenance.

Anodized, anti-corrosive

High-resistance anodizing with anti-corrosive protection, for an easier cleaning and maintenance process.

Sagola 3300 GTO cutaway section
Inside the 3300 GTO — the fusion of the 3300 PRO and 4100 GTO
Forged anodized body
Aluminium + stainless
Anti-corrosive protection
8 bar max design
3-year warranty
19 configurations
Engineered detail

Built into the 3300 GTO

New regulators, a one-piece automatic packing gland, ultra-fine-atomization aircaps and the single-axis system inherited from the Xtreme range.

New Regulators design

New Regulators design

Modern design. Without sharp edges. Better regulation precision. It avoids working loose unwittingly.

Paint packing gland

Paint packing gland

One single piece automatic Paint packing gland. It avoids manipulation and breakage of the glands and makes easier to remove it for a thorough cleaning.

Aircaps

Aircaps

Ultra-fine atomization and larger fans. Designed for the best response at any pressure.

Single axis system

Single axis system

Inherited directly from the Xtreme range, simplified design. Maximum reduction of components  and maintenance.

The GTO air-cap system

Matched to what you spray

Five GTO caps span primer, high-build and finish work — EPA and HVLP for compliant primers, 64S and 62S for high-thickness fillers, and EVO for wet-on-wet primers and finishes.

Sagola GTO EPA air cap
GTO EPA

Compliant primers

Emissions-compliant primer cap for primers and HS primers.

Best forPrimers, HS primers
Nozzles1.40 · 1.60 · 1.80
Sagola GTO HVLP air cap
GTO HVLP

HVLP primers

HVLP-compliant primer cap for maximum transfer efficiency.

Best forPrimers (HVLP compliant)
Nozzles1.40 · 1.60 · 1.80
Sagola GTO EVO air cap
GTO EVO

Wet-on-wet & finishes

Wet-on-wet primers and industrial finishes, with high application speed on large surfaces.

Best forWet/wet primers & finishes
Nozzles1.30 · 1.40 · 1.60
Sagola GTO 64S air cap
GTO 64S

High-build primers

A high-thickness primer cap for heavy build.

Best forHigh-thickness primers
Nozzles2.20
Sagola GTO 62S air cap
GTO 62S

Fillers

A spray-gun filler cap for the heaviest materials.

Best forSpray-gun fillers
Nozzles2.80
Specifications

Technical data

Weight without cup474.8 g.
Dimensions without cup18.2 x 1.9 x 17.8 cm.
Air inlet couplingsBSP 1/4” M
Cup capacity650 ml
CupRemovable anti-drip system
Maximum design pressure8 bar
Air inlet pressure max2 bar
Maximum recommended application distance GTO EPA18 - 20 cm.
Maximum recommended application distance GTO HVLP12 - 15 cm.
Average paint output flow (nozzle 1.4 mm. 20”) GTO EPA179 g/min
Average paint output flow (nozzle 1.4 mm. 20”) GTO HVLP145 g/min
Average paint output flow (nozzle 1.4 mm. 20”) GTO EVO179 g/min
Air consumption (2 bar inlet) GTO EPA250 L/min
Air consumption (2 bar inlet) GTO HVLP360 L/min
Air consumption (2 bar inlet) GTO EVO255 L/min
Fan size GTO EPA [1.8]250 mm.
Fan size GTO HVLP [1.8]250 mm.
Fan size GTO EVO [1.4]280 mm.
Average sound pressure level80 dB
Sagola 3300 GTO · configurations

Find your exact gun

Each row is a stocked configuration — the whole row links to that product. All 10 configurations shown.

NozzleFinishSKUBest for
1.30 mmEVO10141559Wet-on-wet primers & finishes
1.40 mmEPA10141562Primers, HS primers (compliant)
1.40 mmEVO10141560Wet-on-wet primers & finishes
1.40 mmHVLP10141555Primers (HVLP compliant)
1.60 mmEPA10141563Primers, HS primers (compliant)
1.60 mmHVLP10141556Primers (HVLP compliant)
1.80 mmEPA10141564Primers, HS primers (compliant)
1.80 mmHVLP10141557Primers (HVLP compliant)
2.20 mm64S10141572High-thickness primers
2.80 mm62S10141574Spray-gun fillers

ⓘ SKUs are Sagola item numbers — each becomes its own product. Price lives on the product page.

Sagola 3300 GTO Black Racing limited edition
Special edition

3300 GTO Black Racing

A limited edition inspired by 1980s sports-car design — a black forged-aluminium body with the air cap and regulators finished in orange.

See the Black Racing

Manuals, spares & support

Exploded diagram, needle & nozzle kits and GTO air caps for every 3300 GTO configuration.

Shop the 3300 GTO Downloads & manuals
  • Sagola 3300 GTO 1.40 mm EPA Spray Gun
    Quick view

    SKU: 10141562

    Sagola 3300 GTO 1.40 mm EPA Spray Gun

    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.40 mm
    Air Cap: EPA
    Best For: Primers, HS primers (compliant)
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141562
    $485.00
  • Sagola 3300 GTO 1.40 mm HVLP Spray Gun
    Quick view

    SKU: 10141555

    Sagola 3300 GTO 1.40 mm HVLP Spray Gun

    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.40 mm
    Air Cap: HVLP
    Best For: Primers (HVLP compliant)
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141555
    $485.00

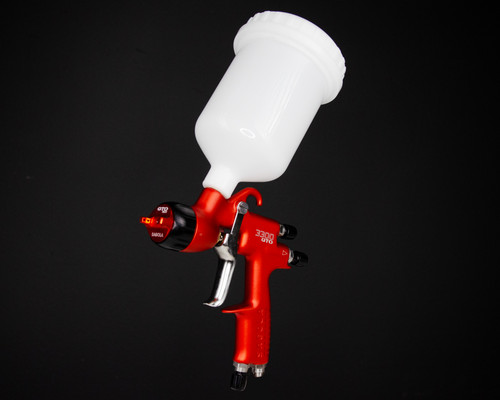

  • Sagola 3300 GTO 2.80 mm 62S Spray Gun
    Quick view

    SG

    SKU: 10141574

    Sagola 3300 GTO 2.80 mm 62S Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 2.80 mm
    Air Cap: 62S
    Best For: Spray-gun fillers
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141574
    $485.00
  • Sagola 3300 GTO 2.20 mm 64S Spray Gun
    Quick view

    SG

    SKU: 10141572

    Sagola 3300 GTO 2.20 mm 64S Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 2.20 mm
    Air Cap: 64S
    Best For: High-thickness primers
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141572
    $485.00
  • Sagola 3300 GTO 1.80 mm EPA Spray Gun
    Quick view

    SG

    SKU: 10141564

    Sagola 3300 GTO 1.80 mm EPA Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.80 mm
    Air Cap: EPA
    Best For: Primers, HS primers (compliant)
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141564
    $485.00
  • Sagola 3300 GTO 1.60 mm EPA Spray Gun
    Quick view

    SG

    SKU: 10141563

    Sagola 3300 GTO 1.60 mm EPA Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.60 mm
    Air Cap: EPA
    Best For: Primers, HS primers (compliant)
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141563
    $485.00
  • Sagola 3300 GTO 1.40 mm EVO Spray Gun
    Quick view

    SG

    SKU: 10141560

    Sagola 3300 GTO 1.40 mm EVO Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.40 mm
    Air Cap: EVO
    Best For: Wet-on-wet primers & finishes
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141560
    $485.00
  • Sagola 3300 GTO 1.30 mm EVO Spray Gun
    Quick view

    SG

    SKU: 10141559

    Sagola 3300 GTO 1.30 mm EVO Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.30 mm
    Air Cap: EVO
    Best For: Wet-on-wet primers & finishes
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141559
    $485.00
  • Sagola 3300 GTO 1.80 mm HVLP Spray Gun
    Quick view

    SG

    SKU: 10141557

    Sagola 3300 GTO 1.80 mm HVLP Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.80 mm
    Air Cap: HVLP
    Best For: Primers (HVLP compliant)
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141557
    $485.00
  • Sagola 3300 GTO 1.60 mm HVLP Spray Gun
    Quick view

    SG

    SKU: 10141556

    Sagola 3300 GTO 1.60 mm HVLP Spray Gun

    Dimensions: 178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”)
    Weight: 474g (1.04lbs)
    Air Inlet Coupling: 6.35mm (1/4”) BSP Male
    Product Inlet Coupling: 9.5mm (3/8”) BSP Male
    Design Pressure: 8bar (116psi)
    Working Pressure: 2 - 3bar (29 - 43.5psi)
    Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)
    Brand: Sagola
    Series: 3300 GTO
    Nozzle Size: 1.60 mm
    Air Cap: HVLP
    Best For: Primers (HVLP compliant)
    Feed Type: Gravity
    Cup Capacity: 650 ml
    Warranty: 3 years
    Sagola Item #: 10141556
    $485.00
