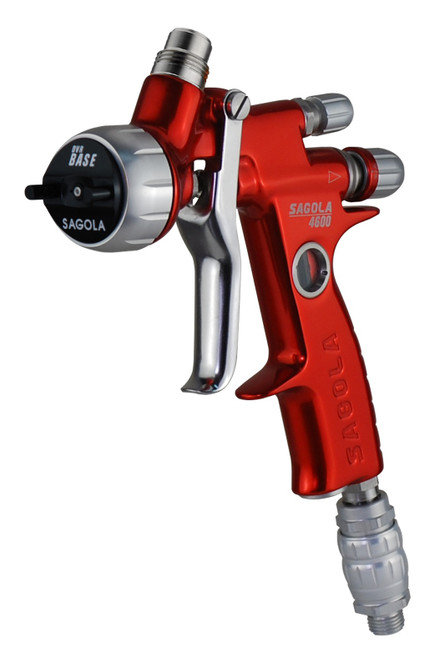

Sagola 4600 Digital (BAR) 1.20 mm HVLP Spray Gun
Integrated digital pressure gauge · reads in bar
The Digital in the name means this 4600 carries an integrated digital air-pressure gauge at the inlet — set and repeat your working pressure exactly, with the readout displayed in bar. Otherwise identical to the 4600 platform (DFT + M2M).
1.20 mm · HVLP
HVLP — 1.20 mm
HVLP geometry: maximum transfer efficiency at low cap pressure for basecoats and specialist coatings where emissions rules apply.
The flagship platform
Every 4600 — standard, Digital, HEX or Overland — is built on the same two advances that define the range.
Precise atomization, lower pressure
Reworked internal air and fluid passages deliver a finer, more uniform pattern even at low pressures — markedly less overspray and bounce-back.
Fewer seals, easier service
A metal-to-metal seat replaces wearing seals: fewer service parts, longer intervals between rebuilds, and consistent trigger feel over the life of the gun.
Every cap in the Sagola 4600 range
Each cap is colour-coded on the gun. Pick the cap for your product family, then the nozzle for its viscosity.
Basecoats
The everyday colour cap. High-efficiency atomization tuned for waterborne and solvent basecoats.
Compliant
HVLP geometry: maximum transfer efficiency at low cap pressure for basecoats and specialist coatings where emissions rules apply.
Clearcoats
Tuned for clears: low-viscosity quick-dry systems through HS & UHS clearcoats and single-stage.
High gloss
The premium clear cap — high-gloss, express-dry clearcoats and single-stage paints for show-quality flow-out.
Technical data
| Weight, with cup | 666 g |
|---|---|
| Weight, without cup | 471 g |
| Cup capacity | 650 ml |
| Working pressure | 2 bar |
| Air inlet | BSP 1/4" |
| Paint filter | 80 mesh |
| Air cap system | DVR + digital |
| Configurations | 60 |
Parts diagram, manuals & spares
Exploded parts breakdown for the Sagola 4600, downloadable manuals & brochures, and every needle, nozzle and air cap available as a spare.
