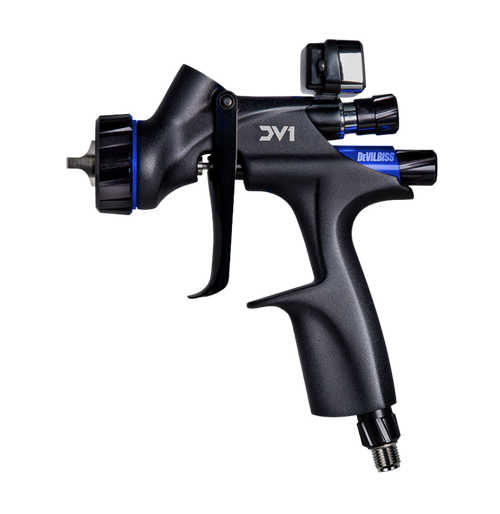

The DeVilbiss DV1 Basecoat Kit 704528 is the dedicated waterborne configuration of the DV1 Basecoat platform. Built around the DV1-1+A HVLP specialty air cap, this kit is purpose-built for shops that run exclusively waterborne basecoat systems and want a gun optimized for that application from the factory. The kit includes a single 1.4mm fluid tip, the Digital DGI PRO Air Gauge, and DPC Adapter.

The DV1-1+A HVLP air cap is a specialty waterborne cap engineered for the specific atomization characteristics of water-based basecoat systems — delivering the same DV1 hallmarks of reduced mottling, balanced spray pattern, and stabilized air distribution that the platform is known for, tuned for the flow behavior of waterborne materials. At 11.1 SCFM @ 22 PSI digital with a 12.2” pattern, it operates at a slightly higher air volume than the B+ cap for optimal waterborne atomization.

If your shop runs both solvent and waterborne systems, the 704504 kit with the DV1-B+ HVLP Plus cap covers both. Kit 704528 is for dedicated waterborne operations. Call or text 586-210-0555 to confirm the right kit for your shop.

Air Cap

DV1-1+A HVLP

Order No. 704445 · 12.2” pattern · 11.1 SCFM @ 22 PSI digital / 29 PSI handle

Specialty waterborne basecoat air cap engineered for water-based material atomization characteristics. Delivers the DV1’s balanced spray pattern and reduced mottling specifically tuned for waterborne systems. Not sold separately — available as part of this kit.

Fluid Tip (1 Included)

1.4mm DV1-B Tip

Order No. 704414 · waterborne compatible

The 1.4mm tip handles most waterborne basecoat viscosities at standard reduction ratios. All sizes in the DV1-B tip range from 0.9mm to 1.5mm are compatible with the DV1-1+A air cap and available separately. All tips share the DV1-300 Needle (704416).

Accessories Included

Digital DGI PRO Gauge

FM Approved — Order No. 704427 · DPC Adapter included

The Digital DGI PRO Air Gauge provides precise, repeatable inlet pressure readings at eye-level — critical for consistent waterborne color matching where air pressure variations produce visible color shift on metallic and pearl systems. FM Approved for North America.

Service Kits & Key Spare Parts

Full breakdown with all 60+ item numbers: DV1 B Breakdown →

What makes the DV1-1+A cap different from the DV1-B+ cap?

The DV1-1+A is a specialty cap engineered specifically for waterborne basecoat systems, tuned for the surface tension and flow behavior of water-based materials. The DV1-B+ HVLP Plus cap in Kit 704504 handles both solvent and waterborne. If your shop runs both systems, Kit 704504 is more flexible. Kit 704528 with the DV1-1+A is for waterborne-dedicated operations. Call 586-210-0555 to confirm the right choice.

Can I use different tip sizes with the DV1-1+A air cap?

Yes — all DV1-B fluid tips from 0.9mm (704409) through 1.5mm (704415) are compatible with the DV1-1+A cap. The 1.4mm is included in this kit. Additional sizes are available separately. All tips use the shared DV1-300 Needle (704416). Please check product pages for current stock status.

Why does waterborne need more SCFM than solvent?

Waterborne materials have higher surface tension than solvent-based coatings, requiring slightly more air energy to break the fluid apart into fine droplets at equivalent pressure. The DV1-1+A cap in this kit draws 11.1 SCFM vs 10.5 SCFM for the B+ cap — tuned to provide the atomization quality waterborne materials need for consistent coverage and color match.

Are the service kits the same as for Kit 704504?

Yes — the gun body is identical across both Basecoat kits. The Minor Service Kit (704430) and Major Service Kit (704431) apply to both 704528 and 704504. All individual spare parts are also shared. See the DV1 B Breakdown page for the complete parts list.

My shop is transitioning to waterborne — which kit should I buy?

If you’re transitioning and will still spray some solvent work during the changeover, the 704504 with DV1-B+ HVLP Plus handles both systems and includes three tips. If you’ve fully committed to waterborne, Kit 704528 with the DV1-1+A specialty cap is the purpose-built choice. Call or text 586-210-0555 and we’ll help you confirm the right setup.

Where can I find the DV1 manual and full parts breakdown?

The full manual with exploded diagram, pressure settings, and service instructions is available via the download button below. The complete spare parts list with all item numbers and individual part links is at the DV1 B Breakdown page. CET includes documentation with every order.
