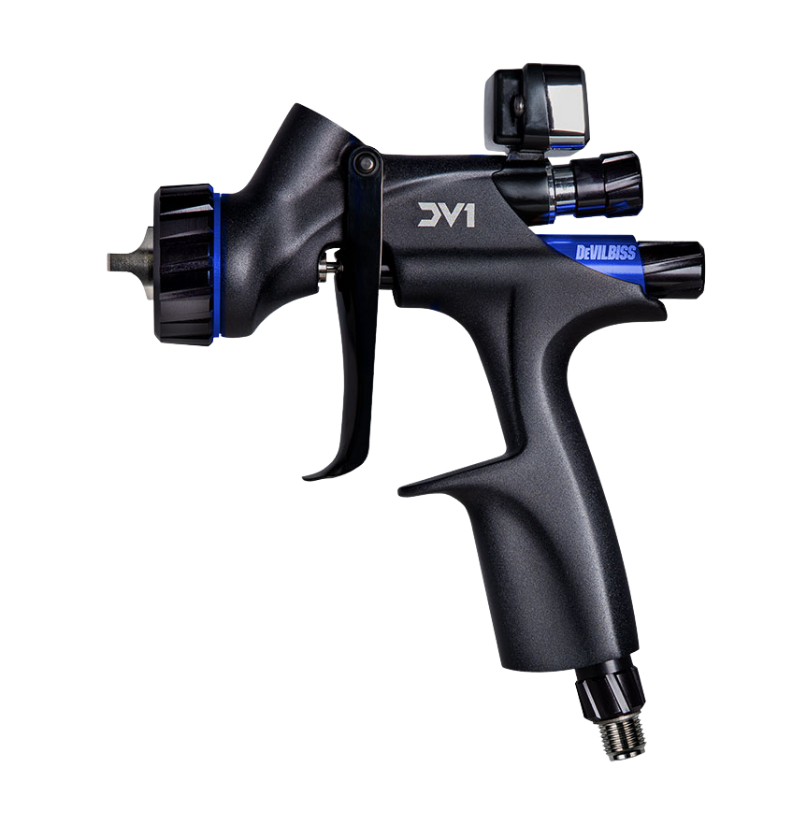

DeVilbiss DV1 Basecoat Spray Gun

(Showing 34 of 34)



DeVilbiss · Automotive Refinishing · Authorized Distributor

DeVilbiss DV1 Basecoat
Next-Generation HVLP Basecoat Spray Gun · Solvent & Waterborne

Two Kit Configurations · Digital DGI PRO Gauge Included · Superior Atomization · Optimal Color Match · Automotive Refinishing

HVLP Gravity Feed Digital Gauge Included Solvent & Waterborne 2 Kit Configurations
 DeVilbiss DV1 Basecoat Spray Gun
Not sure which DV1 Basecoat kit is right for your shop?   CET’s technical team will confirm the right configuration for your paint system and application. 586-210-0555 sales@cetinc.com

The DV1 Basecoat Platform

Engineered for Painters
Who Demand More.

The DeVilbiss DV1 Basecoat is the product of direct collaboration between DeVilbiss’ leading engineers and the professional painters who use their tools every day. The result is a spray gun designed from the ground up for consistent, exceptional basecoat results — reducing mottling, balancing the spray pattern, stabilizing air distribution, and delivering superior transfer efficiency from the first trigger pull.

At the heart of the DV1 Basecoat is the integrated digital DGI PRO gauge at eye-level — giving painters exact inlet pressure readings for repeatable color matching across every vehicle, every job, every technician. The co-axial air adjusting valve with 12x sensitivity gives painters fine control over air delivery without shifting hand position during application.

Two kit configurations are available. Kit 704504 includes the DV1-B+ HVLP Plus air cap and three tips (1.2, 1.3, 1.4mm) for both solvent and waterborne systems. Kit 704528 includes the DV1-1+A specialty waterborne cap and a 1.4mm tip for dedicated waterborne operations. Both include the Digital DGI PRO Air Gauge and DPC Adapter.

Key Features

What Makes the DV1
Different.

Precision Digital Gauge at Eye-Level Integrated DGI PRO digital gauge positioned in-line at eye-level for exact inlet pressure readings — the key to repeatable color matching job to job, especially on metallic and pearl basecoats.
Co-Axial Air Valve — 12x Sensitivity Reconfigured co-axial air inlet and adjusting valve delivers 12x more sensitivity for precise air control in an ergonomic location that doesn’t require repositioning grip during application.
Less Mottling — Balanced Spray Pattern Stabilized air distribution reduces mottling on metallic and pearl basecoats, delivering a balanced, consistent spray pattern across the full fan width for better first-pass results and less re-work.
Superior Transfer Efficiency Advanced atomization engineering maximizes the percentage of material that reaches the panel surface, reducing material waste and improving shop profitability on every job.

Choose Your Configuration

DV1 Basecoat Kit Comparison

Both kits include the Digital DGI PRO Air Gauge and DPC Adapter. The difference is the air cap configuration. Choose based on your primary paint system.

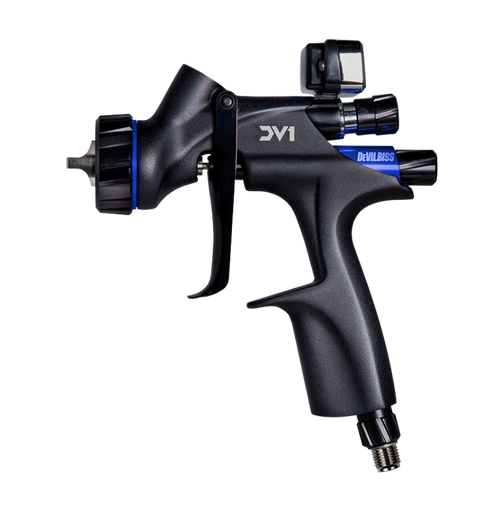

Kit 704504 — Most Popular

DV1 Basecoat

Solvent & waterborne · DV1-B+ HVLP Plus cap · Three tips included

Air Cap DV1-B+ HVLP Plus (704408)
Pattern 12.8”
Air @ Digital 10.5 SCFM @ 22 PSI
Tips Included 1.2mm · 1.3mm · 1.4mm
Gauge Digital DGI PRO (704427)
Best For Solvent & waterborne — all-around

Kit 704528 — Waterborne Dedicated

DV1 Basecoat Waterborne

Waterborne-only · DV1-1+A specialty HVLP cap · One tip included

Air Cap DV1-1+A HVLP (704445)
Pattern 12.2”
Air @ Digital 11.1 SCFM @ 22 PSI
Tip Included 1.4mm (704414)
Gauge Digital DGI PRO (704427)
Best For Dedicated waterborne-only shops

Which Kit Is Right for Your Shop?

Choose Kit 704504 if…

Your shop sprays both solvent and waterborne basecoats, or you’re unsure which system you’ll be running. The DV1-B+ HVLP Plus cap handles both, the kit includes three tips for different material viscosities, and it’s the best all-around value in the DV1 Basecoat range.

Choose Kit 704528 if…

Your shop has fully committed to waterborne basecoat systems and you want a gun with a specialty cap engineered for waterborne atomization characteristics. The DV1-1+A HVLP cap is purpose-built for waterborne material flow and surface tension — not a compromise cap that handles both.

Not sure? Call or text 586-210-0555 and CET’s technical team will confirm the right kit for your shop and paint brands before you order.

Air Cap Options

All Three DV1 Basecoat Air Caps

All three air caps are available individually for replacement or to add a second cap option to an existing setup.

Air CapOrder No.SCFM & PSI (Digital)PatternApplication
DV1-B+ HVLP Plus — in Kit 704504 704408 10.5 SCFM @ 22 PSI 12.8” Solvent & waterborne — most popular
DV1-B HVLP 704407 14.1 SCFM @ 15 PSI 13” Solvent & waterborne — wider pattern, lower pressure
DV1-1+A HVLP — in Kit 704528 704445 11.1 SCFM @ 22 PSI 12.2” Dedicated waterborne specialty cap

Fluid Tips

DV1-B Fluid Tips — Full Range

All seven DV1-B tip sizes are available individually. All share the DV1-300 Needle (704416). Tips in bold are included in Kit 704504.

Tip SizeOrder No.ApplicationIncluded In
0.9mm 704409 Very thin or highly diluted waterborne basecoats Individual only
1.0mm 704410 Low-viscosity solvent & waterborne Individual only
1.1mm 704411 Standard waterborne, medium-viscosity solvent Individual only
1.2mm 704412 Most solvent basecoats — PPG, Axalta, Spies Hecker standard Kit 704504
1.3mm 704413 Most common — metallics, pearls, high-solid basecoats Kit 704504
1.4mm 704414 Higher-viscosity solvent basecoats, heavier coverage Kits 704504 & 704528
1.5mm 704415 Maximum viscosity basecoats Individual only

Spare Parts & Service

DV1 Basecoat Spare Parts

Complete DV1 Basecoat spare parts list. All part numbers verified from the DV1 B Breakdown.

Service Sets

Part No.DescriptionContents
704430 Minor Service Kit Includes parts 23, 25, 35, 49, 51, 53 — Front cage assembly, air valve spring, needle spring kit, spreader valve pin, O-rings
704431 Major Service Kit Includes parts 10, 12, 17, 28, 35, 49, 51, 53 — Screw kit, gasket kit, packing/spring/nut kit, air valve assembly, needle spring kit, spreader valve pin, O-rings

Air Caps, Fluid Tips & Needles

Part No.Description
704407 DV1-B HVLP Air Cap — 13” pattern, 14.1 SCFM @ 15 PSI digital
704408 DV1-B+ HVLP Plus Air Cap — 12.8” pattern, 10.5 SCFM @ 22 PSI digital
704409 DV1-0.9 B, 0.9mm Fluid Tip
704410 DV1-1.0 B, 1.0mm Fluid Tip
704411 DV1-1.1 B, 1.1mm Fluid Tip
704412 DV1-1.2 B, 1.2mm Fluid Tip
704413 DV1-1.3 B, 1.3mm Fluid Tip
704414 DV1-1.4 B, 1.4mm Fluid Tip
704415 DV1-1.5 B, 1.5mm Fluid Tip
704416 DV1-300 Needle — shared across all DV1-B fluid tips

Exploded View — Item Numbers Reference the Parts Table Below

DeVilbiss DV1 Basecoat Spray Gun Exploded View — Spare Parts Breakdown

Individual Spare Parts

ItemPart No.Description
4 704425 Retaining Ring Sub Assembly
9 704402 Deflector Plate
10 704403 Screw Kit of 3
12 704401 Gasket Kit of 2
13 704400 Spray Head Kit
17 702731 Packing, Spring and Packing Nut Kit
23 704422 Front Cage Assembly
27 704423 Rear Seal Assembly
28 704424 Air Valve Assembly
31 704428 Sleeve Kit
35 704405 Needle Spring Kit
36 704404 Fluid Adjusting Knob
41 704417 Inline Flow Valve
47 704406 Trigger, Stud, Spring and Screw Kit
56 704418 Spreader Valve Assembly
60 704429 Tool Kit — Valve tool, Torx driver & tip wrench
62 704427 Digital Pressure Gauge — FM Approved (North America)
55 704419 Spreader Knob Kit — Not for use with Digital Gauge

DeVilbiss DV1 Basecoat — Manual & Parts Breakdown

Full exploded diagram, all part numbers, pressure settings & service instructions. CET includes documentation with every order.

 ↓ Download Manual View Parts Breakdown →

CET is an authorized DeVilbiss distributor. Need help selecting the right DV1 Basecoat kit, confirming tip size for your paint brand, or sourcing a spare part? Call or text 586-210-0555  ·  sales@cetinc.com  ·  Based on over 20 years of finishing equipment experience.
