Manual powder coating system · WACON Sprint 2 XE control · Quick-Link injector · PEM-X1 gun
System Overview

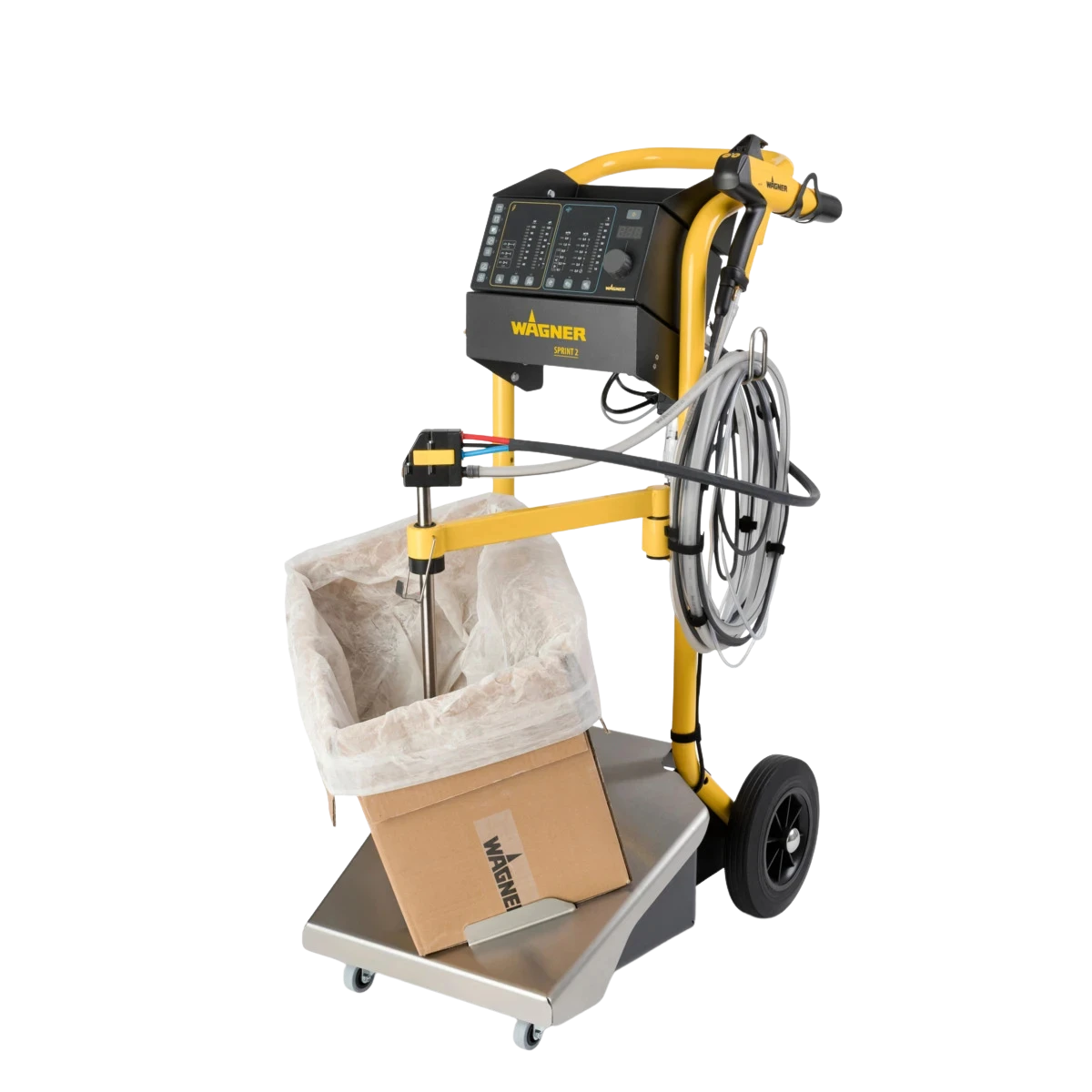

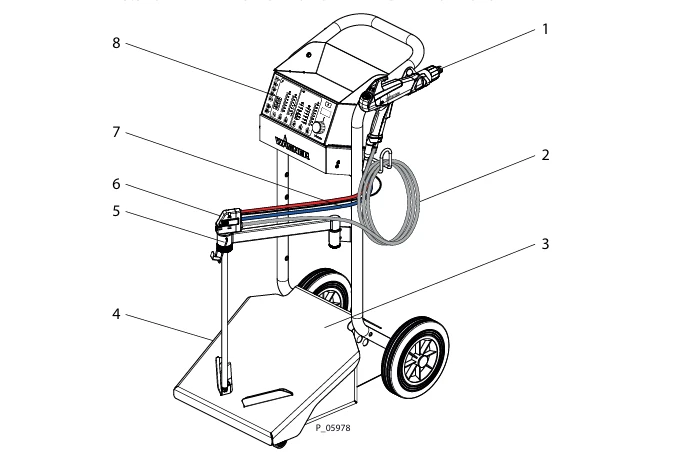

Main assemblies for the SPRINT 2 B box feed manual powder coating system (US version).
| Item | Part # | Description | |
|---|---|---|---|
| — | 2466208 | Sprint 2 B Manual System (US Version, Complete) | |
| 1 | 2322587 | PEM-X1 Manual Gun | |
| 2 | 2466676 | Powder Hose Set, d10-5.5m POE | |
| 3 | 2355338 | Vibrator Motor, 115V/60Hz (US) | |
| 4 | — | Sprint 2 Mobile Base | |
| 5 | 2466049 | Swivel Arm Set | |
| 6 | 2466079 | Quick-Link Powder Injector (Box Feed) | |
| 7 | 2466207 | Hose Set | |
| 8 | 2463347 | WACON Sprint 2 XE Control Unit | |
| — | 9951116 | Slow-Acting Fuse, 2A (for WACON) Wear Part | |
| 9 | 130215 | Grounding Cable, 10m | |
| 10 | 264626 | Mains Cable (USA) |
Powder Delivery
Four injector configurations: standard and Hi-Coat, for box feed and hopper feed. All share the same injector head set and wear part kits.
| Item | Part # | Description | Variant | |
|---|---|---|---|---|
| 1 | 2466079 | Powder Injector, Complete | Box Feed | |
| 1 | 2466080 | Powder Injector, Complete | Hopper Feed | |
| 1 | 2467892 | Powder Injector, Complete | Hi-Coat Box | |
| 1 | 2467893 | Powder Injector, Complete | Hi-Coat Hopper | |
| 2 | 2468008 | Hose Connector (Coupling Piece) | Box Feed | |
| 2 | 2468010 | Hose Connector (Coupling Piece) | Hopper Feed | |
| 3 | 2467983 | Injector Head Set Kit | All Variants | |
| 4 | 2357262 | Collector Nozzle (Venturi) Wear Part | Standard | |
| 4 | 2368035 | Collector Nozzle (Venturi) Wear Part | Hi-Coat | |
| 5 | 2366797 | Air Nozzle Wear Part | Standard | |
| 5 | 2368888 | Air Nozzle Wear Part | Hi-Coat | |
| 6 | 2468004 | Suction Lance, Outer Pipe | Box Feed | |
| 7 | 2468006 | Suction Lance, Inner Pipe | Box Feed | |
| 8 | 2466796 | Locking Latch Set Kit | All Variants | |
| 9 | 2466809 | O-Ring Set Wear Part | All Variants | |
| 10 | 2466811 | Non-Return Valve Set Wear Part | All Variants | |
| 11 | 2466792 | Fluid Ring & Crown Set Wear Part | Box Feed | |
| 12 | 2468013 | Suction Connector Set | Hopper Feed | |
| 13 | 9974023 | O-Ring, Electrically Conductive Wear Part | Hopper Feed |
Swivel Arm
Powder suction lance guide arm with replaceable bushings and sealing components.
Vibration Table
Vibrating powder fluidization table with replaceable motor and pipe clamps.
Full operator & service manual covering Sprint 2 B (box feed) and Sprint 2 H (hopper feed) systems, with all exploded diagrams and maintenance procedures.
⇩ Download Manual (PDF)Looking for PEM-X1 gun parts (nozzles, electrodes, deflector cones)?
