Mini Xtreme

(Showing 11 of 11)
Sagola Industrial · Mini spray guns
Mini
Xtreme

Small gun, industrial reach.

A compact pressure-feed mini spray gun for detail, touch-up and small-part work where a full-size gun will not fit. Product is supplied from a pressure pot or pump; pick the air cap for your material, then the nozzle for its viscosity.

Sagola Mini Xtreme spray gun
11Configurations listed below
CETStocked & supported
FeedPressure feed — product comes from a pot or pump, so the gun stays light however much material you move.
Air capsMini Aqua, HVLP, EPA and TECH — one cap family per application.
Nozzles0.60 to 1.30 mm across the stocked configurations.
Weight347 g — small enough to work with all day.
Where it is usedAutomotive, wood and plastics — detail, touch-up and small-part work where a full-size gun will not fit.
ATEXII 2G T4 x, Directive 2014/34/UE (non-electric). Classified areas need earthing and/or static-free hoses.

Parts, diagram and manuals

Exploded parts diagram, downloadable manuals and every part number linked to its product.

Open the parts pageBack to all spray guns
  • Sagola Mini Xtreme Gravity, Mini TECH Aircap 1.0mm (10111812)
    Quick view

    Sagola

    SKU: 10111812

    Sagola Mini Xtreme Pressure, Mini TECH Aircap 1.00mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini TECH Aircap-0.60mm (10111811)
    Quick view

    Sagola

    SKU: 10111811

    Sagola Mini Xtreme Pressure, Mini TECH Aircap 0.60mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini HVLP Aircap-1.20mm (10111810)
    Quick view

    Sagola

    SKU: 10111810

    Sagola Mini Xtreme Pressure, Mini HVLP Aircap 1.20mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini HVLP Aircap-1.00mm (10111809)
    Quick view

    Sagola

    SKU: 10111809

    Sagola Mini Xtreme Pressure, Mini HVLP Aircap 1.00mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini EPA Aircap-1.20mm (10111808)
    Quick view

    Sagola

    SKU: 10111808

    Sagola Mini Xtreme Pressure, Mini EPA Aircap 1.20mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini EPA Aircap-1.00mm (10111807)
    Quick view

    Sagola

    SKU: 10111807

    Sagola Mini Xtreme Pressure, Mini EPA Aircap 1.00mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini EPA Aircap-0.80mm (10111806)
    Quick view

    Sagola

    SKU: 10111806

    Sagola Mini Xtreme Pressure, Mini EPA Aircap 0.80mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00

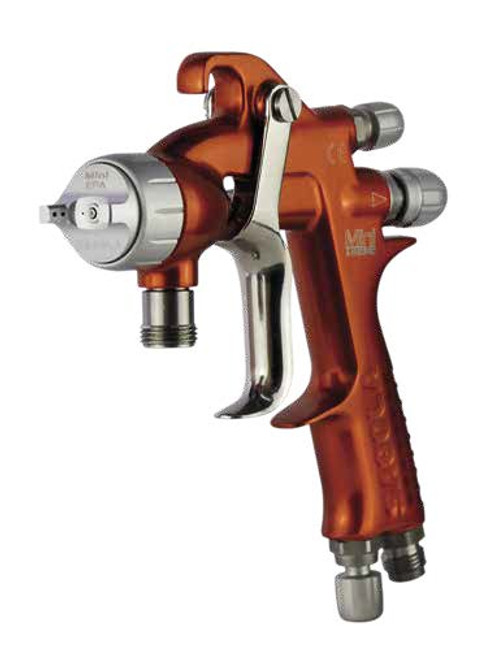

  • Sagola Mini Xtreme Gravity, Mini HVLP Aircap-1.30mm (10111804)
    Quick view

    Sagola

    SKU: 10111804

    Sagola Mini Xtreme Pressure, Mini HVLP Aircap 1.30mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini Aqua Aircap-1.20mm (10111803)
    Quick view

    Sagola

    SKU: 10111803

    Sagola Mini Xtreme Pressure, Mini Aqua Aircap 1.20mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini Aqua Aircap-1.00mm (10111802)
    Quick view

    Sagola

    SKU: 10111802

    Sagola Mini Xtreme Pressure, Mini Aqua Aircap 1.00mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
  • Sagola Mini Xtreme Gravity, Mini Aqua Aircap-0.80mm (10111801)
    Quick view

    Sagola

    SKU: 10111801

    Sagola Mini Xtreme Pressure, Mini Aqua Aircap 0.80mm

    Dimensions: 158 x 18 x 165mm (6.22 x 0.71 x 6.5")
    Weight: 347g (0.76lbs)
    Air Inlet Coupling: 6.35mm (1/4") BSP Male
    Product Inlet Coupling: 9.5mm (3/8") BSP Male
    Design Pressure: 4bar (58psi) maximum air pressure
    Working Pressure: 1.4 - 2.2bar (20.3 - 31.9psi)
    Compliance: ATEX II 2G T4 x (Directive 2014/34/UE)
    Temperature Range: 0 - 60C (32 - 122F)
    Materials in Contact with Product: Anodized aluminium, stainless steel, PTFE, POM, polyamide
    $525.00
