Wagner PEM-X1 Powder Coating Gun

(Showing 3 of 3)



Wagner · Authorized Distributor

PEM-X1
Manual Powder Spray Gun

Corona Charging · Flat & Round Spray · 100kV Cascade · ATEX Certified

490g450 g/minATEX

Need help configuring your PEM-X1?  CET stocks guns, nozzles, extensions, and spare parts.

586-210-0555✉ sales@cetinc.com
490g
Weight
100kV
Cascade
450
g/min
50
Recipes
ATEX
Certified

Shop PEM-X1

Choose Your Configuration

Wagner PEM-X1 Wide Spray Powder Gun
Wide Spray450 g/min

PEM-X1 Wide Spray

2322587 · Gun Only

Flat spray nozzle for wide, even coverage on panels and flat surfaces. Includes electrode holder F, protective wedge, gun hook.

View Wide Spray

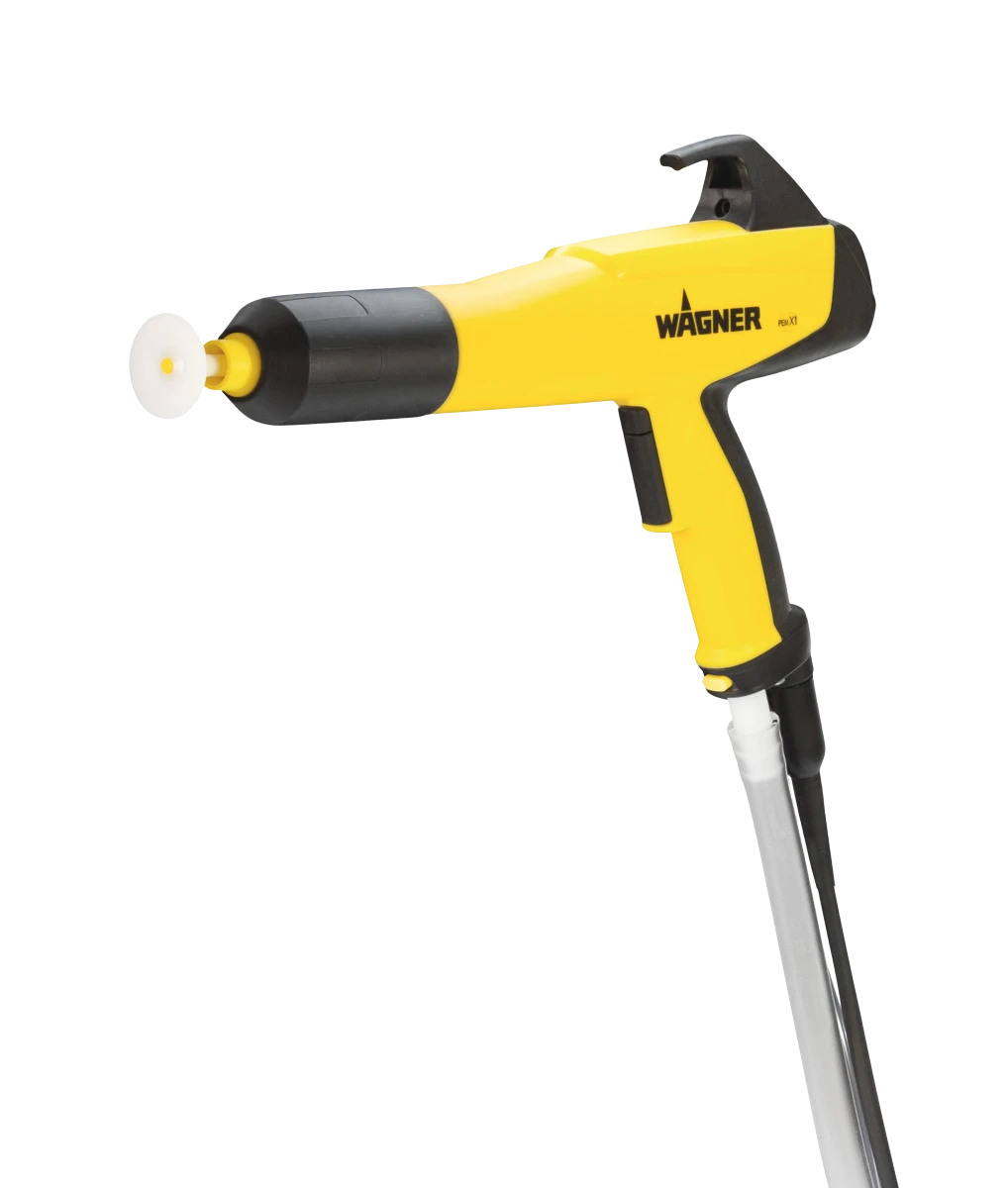

Wagner PEM-X1 Round Spray Powder Gun
Round Spray450 g/min

PEM-X1 Round Spray

2335844 · Gun Only

Deflector cones (D18/D25/D34) for 360° conical pattern on complex shapes, recesses, Faraday cage areas.

View Round Spray
Wagner PEM-X1 Spray Pack Manual Powder Set
Spray PackComplete Set

PEM-X1 Spray Pack

2467124 · Gun + Control + Hose

Manual powder set: PEM-X1 gun, WACON Sprint 2 X control unit, PI-F1 injector, and powder hose set. Core components for building a system or adding a pre/post-coat station.

View Spray Pack

Overview

Lightweight.
Powerful.
Ergonomic.

The Wagner PEM-X1 is a lightweight corona manual powder coating spray gun at just 490 grams, delivering up to 450 g/min with a stable 100kV high-power cascade that handles even difficult-to-charge powders like effects and acrylics.

Available as flat spray (2322587) for wide coverage, round spray with deflector cones (2335844) for complex shapes, or the complete Spray Pack (2467124) with control unit, injector, and hose set.

Integrated remote trigger adjusts powder quantity without returning to the control unit. Double-click for instant recipe switching. Pairs with the EPG Sprint XE with Wagner AFC technology across up to 50 stored recipes.

Technical Data

Key Specifications

Charging Corona — 100kV cascade
Output Up to 450 g/min
Weight 490g / 530g (CG)
Nozzles Flat, Round, Angled (30°/45°/60°), Cross 90°
Extensions VL 150, 300, 500, 750
Cables 6m / 15m
Control EPG Sprint XE — 50 recipes, AFC
ATEX PTB 12 ATEX 5002 EN50050-2
Mfg J. Wagner GmbH — Markdorf, DE

Key Features

Engineered for Production Powder Coating

Ergonomic & Lightweight

490g enables fatigue-free all-day operation. Ergonomic grip reduces strain in extended shifts.

100kV Cascade

Stable voltage at 100kV. Cascade curve adjustment handles effects and acrylic powders.

Trigger Remote

Adjust powder from the trigger. Double-click for instant recipe switching.

AFC Air Flow Control

Closed-loop system continuously measures and regulates air volume for uniform powder cloud.

CoronaStar

Plug-in CoronaStar (2322868) for smoother surfaces. No tools.

Replaceable Wedge

Wedge (2320488) replaces instead of full electrode — cuts wearing parts cost.

Configuration Space

Nozzles & Extensions

Flat spray, round spray, angled, cross-spray, plus four extension lengths.

Nozzles & Electrode Holders

ComponentPart No.Pattern
Flat Spray Nozzle X1 2321976 Wide flat
Flat Spray F1 2420243 Alternate flat
Cross Spray 90° 2428515 90° cross
Angled 30° / 45° / 60° 2428283 / 2428284 / 2428285 Angled spray
Electrode Holder F 2322529 For flat nozzles
Electrode Holder R 2322490 For deflector cones
Deflector Cones D18 / D25 / D34 18/25/34mm cones
CoronaStar 2322868 Smoother finishes

Nozzle Extensions

ExtensionPart No.LengthBest For
VL 150 2323366 150mm Shallow recesses
VL 300 2323356 300mm Cabinets
VL 500 2323338 500mm Radiators
VL 750 2330497 750mm Max reach


PEM-X1 Spare Parts & Breakdown

Nozzles, electrodes, cones, wedges, cables, retrofit kits.

View Spare Parts

Compatible Systems

Sprint 2 Systems

Sprint 2 B

Box feed with vibrating table. WACON Sprint 2 XE, Quick-Link B injector. US 115V.

View System

Sprint 2 H

Hopper feed for 25L/60L tanks. WACON Sprint 2 XE, Quick-Link H injector. US 115V.

View System

PEM-X1 CG Cup Gun

Portable case set for small batches and lab work. Super-fast cup changes. 200 g/min.

View Cup Gun

Common Questions

Frequently Asked Questions

Flat vs. round spray?

Flat spray (2322587) for wide coverage. Round spray (2335844) with deflector cones for 360° pattern on complex shapes.

Extensions?

VL 150, VL 300, VL 500, VL 750 — 150mm to 750mm for deep-reach.

CoronaStar?

CoronaStar (2322868) — plug-in for smoother surfaces. Electrode (2322835) available separately.

Cables?

6m standard. 15m for extended reach.

Wearing parts?

Wedge (2320488), electrode holders, nozzles/cones. View all spare parts.

ATEX?

Yes. PTB 12 ATEX 5002 EN50050-2, rated II 2D, 2mJ max spark energy.
