Need a portable powder coating solution? CET stocks the cup gun, case set, cups, and all spare parts.
Overview
The Wagner PEM-X1 CG is the cup-fed variant of the PEM-X1, designed for operations where portability, fast color changes, and small-batch flexibility matter more than high-volume output. At 530 grams (without cup), it delivers 200 g/min with the same 100kV cascade as the standard PEM-X1.
The cup change concept is the key advantage: swap the powder cup, purge briefly, spray the next color. No hose flushing, no hopper cleaning. Stock individual cups (2324139) or 5-packs (2324140) for pre-loading multiple colors.
Available as gun only (2322588) or the complete Sprint 2 Case Set (2467115) with EPG Sprint XE control, cable, and carrying case that doubles as a stand.
Technical Data
| Feed Type | Cup-Fed |
| Charging | Corona — 100kV cascade |
| Output | 200 g/min |
| Weight | 530g (without cup) |
| Dimensions | 365 mm |
| Nozzles | Same as PEM-X1: flat, round, angled, cross |
| Control Unit | EPG Sprint XE — 50 recipes, AFC |
| ATEX | PTB 12 ATEX 5002 EN50050-2 |
| Best For | Single parts, small batches, lab/R&D, color changes |
Why the Cup Gun
Super-Fast Color Changes
Swap the powder cup, purge, spray. Pre-load 5-packs for instant switching.
Compact & Portable
The case set contains everything — gun, control unit, cable — in a case that doubles as a stand.
Full PEM-X1 Ecosystem
Same nozzles, electrode holders, CoronaStar, deflector cones, and extensions as the standard PEM-X1.
100kV Cascade
Same high-power cascade as the standard PEM-X1. Stable charging at 100kV even with effects and acrylics.
Lab & Development
Ideal for R&D, color matching, quality testing, sample coating. Small cup = minimal powder waste per trial.
EPG Sprint XE Control
Wagner AFC closed-loop air control. 50 recipes, 4 quick-select. Double-click trigger for instant recipe switching.
Available Configurations
Key Components
Cup-gun-specific parts plus shared PEM-X1 accessories. All linked to CET store pages.
| Component | Part No. | Notes |
|---|---|---|
| CUP GUN SPECIFIC | ||
| Powder Cup (single) | 2324139 | Cup with cover |
| Powder Cup (5-pack) | 2324140 | Pre-load multiple colors |
| Cup Lid | 2322906 | Replacement cover |
| Connecting Tube ET | 2324135 | Cup-to-gun tube |
| Collector Nozzle ET | 2324133 | Cup assembly nozzle |
| Connecting Part ET | 2324132 | Cup assembly connection |
| Non-Return Valve | 2324223 | Complete valve |
| SHARED WITH PEM-X1 | ||
| Flat Spray Nozzle | 2321976 | Wide flat spray |
| Electrode Holder F | 2322529 | For flat spray |
| Electrode Holder R | 2322490 | For deflector cones |
| Deflector Cones | D18 / D25 / D34 | 18/25/34mm cones |
| Protective Wedge | 2320488 | Replaceable wearing part |
| CoronaStar | 2322868 | Smoother finishes |
Common Questions
Cup gun vs. standard PEM-X1?
The CG draws powder from a cup on the gun (200 g/min) vs. the standard PEM-X1 which draws from a hopper/box via powder hose (450 g/min). Same cascade, same nozzle ecosystem. The CG trades output volume for portability and instant color changes.
What is in the case set?

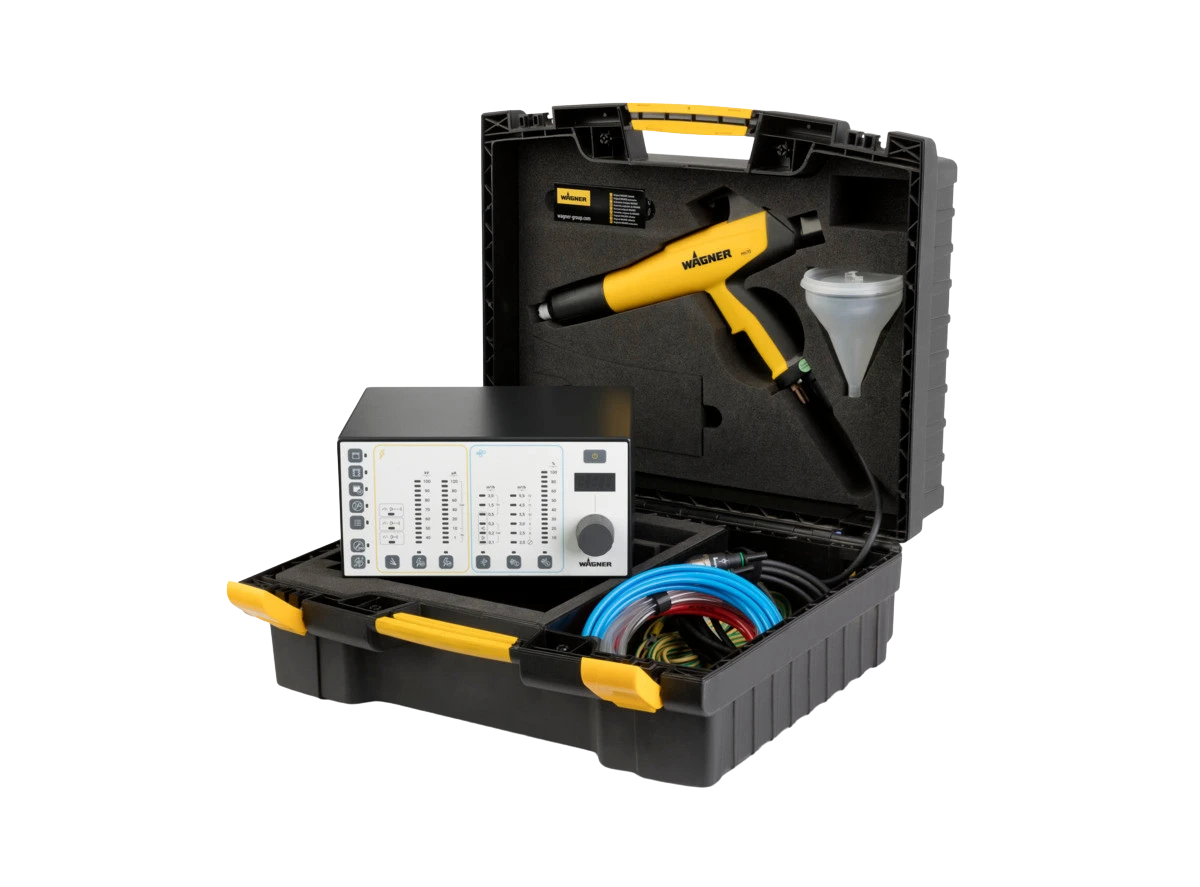

The Sprint 2 Case Set (2467115) includes the PEM-X1 CG cup gun, EPG Sprint XE control unit with AFC, gun cable, and carrying case that doubles as a stand system. Plug in and start coating.
Same nozzles and accessories?
Yes. The CG accepts the same flat spray nozzles, electrode holders, deflector cones (D18/D25/D34), CoronaStar, nozzle extensions, and protective wedges as the standard PEM-X1.
How fast are color changes?
Swap the cup, purge briefly, spray. No hose flushing or hopper cleaning. Pre-load 5-packs of cups with different colors for instant switching between jobs.
Why Buy From CET
Authorized Wagner Distributor
Genuine Wagner parts, factory support, US-based fulfillment on every order.
Full Parts Stocking
Cups, nozzles, connecting parts, electrode holders, CoronaStar — all CG spare parts stocked for fast shipping.
Technical Support
Call or text 586-210-0555 for configuration help and parts availability.
Operating manual covering both PEM-X1 and PEM-X1 CG configurations.
Contact CET for PEM-X1 CG cup gun availability, case set pricing, or spare parts. 586-210-0555 · sales@cetinc.com
