Binks Trophy Conventional

(Showing 20 of 20)



Binks Trophy · High-Pressure Atomization · Authorized Distributor

Binks Trophy Conventional
Professional Conventional Spray Guns · Gravity, Pressure & Siphon Feed

19 Configurations Nozzles 1.0 – 2.6mm Air Caps: 16 · 11-C · 12-C · 14-C Gravity / Pressure / Siphon Feed

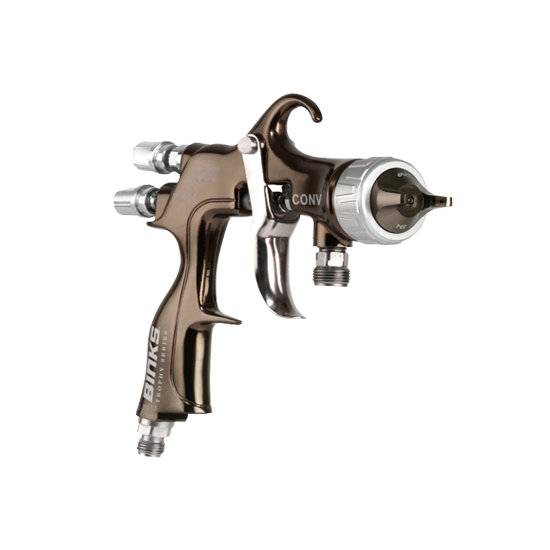

Binks Trophy Conventional Spray Gun

Not sure which Trophy Conventional setup fits your coating?   CET’s technical team will spec the right nozzle, cap and feed for your material.

586-210-0555 sales@cetinc.com

The Trophy Conventional Platform

Why Conventional?

Binks Trophy Conventional spray guns deliver the finest atomization and the fastest application speed in the Trophy line. For shops with ample compressed air, conventional (high-pressure) atomization produces an exceptionally fine, uniform finish across a huge range of materials — from low-viscosity stains and dyes to heavy high-build primers, adhesives and vitreous (porcelain) enamel.

CET stocks the full Conventional range in gravity, pressure and siphon feed, with 11-C, 12-C, 14-C and 16 air caps and fluid nozzles from 1.0 to 2.6mm. A pre-matched starter kit (2465-CN1) ships with 1.0, 1.4 and 1.8mm nozzles for a ready-to-spray setup.

Key Advantages

Conventional at a Glance.

Finest Atomization Conventional caps break material into the finest, most uniform particle size in the Trophy range — for the smoothest possible finish when air supply isn't the constraint.
Widest Material Range Fluid nozzles up to 2.6mm handle the heaviest high-build primers, adhesives and vitreous enamels that compliant caps can't deliver.
Fastest Application High atomizing pressure lays material down quickly, maximizing throughput on jobs where speed and finish quality come before transfer efficiency.
Three Feed Options Available in gravity, pressure and siphon feed to match your material delivery, volume and shop setup.

Choose Your Configuration

Trophy Conventional Spray Guns

Every gun below is configured with a Conventional air cap and a matched fluid nozzle and needle. Pick by feed type and nozzle size, or start with a pre-matched kit.

Gravity Feed — 3 configurations

NozzleAir CapSKUPrice
1.4mm12-C2466-14CN-12SG$863View →
1.6mm12-C2466-16CN-12SG$863View →
1.8mm12-C2466-18CN-12SG$863View →

Pressure Feed — 14 configurations

NozzleAir CapSKUPrice
1.0mm11-C2465-10CN-11S0$834View →
1.2mm11-C2465-12CN-11S0$834View →
1.2mm162465-12CN-16S0$834View →
1.4mm11-C2465-14CN-11S0$834View →
1.4mm14-C2465-14CN-14V0$1050View →
1.6mm11-C2465-16CN-11S0$834View →
1.6mm12-C2465-16CN-12S0$834View →
1.8mm11-C2465-18CN-11S0$834View →
1.8mm12-C2465-18CN-12S0$834View →
1.8mm14-C2465-18CN-14V0$1050View →
2.0mm14-C2465-20CN-14S0$834View →
2.2mm14-C2465-22CN-14S0$834View →
2.2mm14-C Vitreous2465-22CN-14V0$1050View →
2.6mm14-C Vitreous2465-26CN-14V0$1050View →

Siphon Cup — 2 configurations

NozzleAir CapSKUPrice
1.6mm12-C2465-16CN-12SS$866View →
1.8mm12-C2465-18CN-12SS$866View →

Air Caps

Trophy Conventional Air Caps

The Conventional air caps available in the current Trophy lineup, with the feed types and nozzle sizes each is offered with. Air cap, fluid nozzle and needle are a matched set — order them together.

Air CapFeed TypesNozzle Sizes Offered
16Pressure1.2mm
11-CPressure1.0mm · 1.2mm · 1.4mm · 1.6mm · 1.8mm
12-CGravity · Pressure · Siphon1.4mm · 1.6mm · 1.8mm
14-CPressure1.4mm · 1.8mm · 2.0mm · 2.2mm · 2.6mm

Spare Parts & Service

Trophy Conventional Spare Parts & Manuals

Full exploded diagrams, part numbers, air-cap charts and service instructions are organized by feed type. Choose the breakdown that matches your gun.

Need Help Speccing Your Trophy Conventional?

CET is an authorized Binks distributor. We’ll confirm the right nozzle, cap, needle and feed for your coating and ship documentation with every order.

CET is an authorized Binks distributor with over 20 years of finishing-equipment experience. Call or text 586-210-0555  ·  sales@cetinc.com
