Binks Trophy LVMP

(Showing 16 of 16)



Binks Trophy · Low Volume, Medium Pressure · Authorized Distributor

Binks Trophy LVMP
Professional LVMP Spray Guns · Gravity, Pressure & Siphon Feed

14 Configurations Nozzles 0.85 – 1.8mm Air Caps: 22-L · 23-H · 23-L · 25-H · 25-L Gravity / Pressure / Siphon Feed

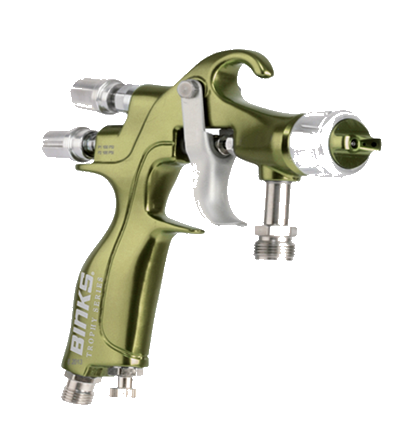

Binks Trophy LVMP Spray Gun

Not sure which Trophy LVMP setup fits your coating?   CET’s technical team will spec the right nozzle, cap and feed for your material.

586-210-0555 sales@cetinc.com

The Trophy LVMP Platform

Why LVMP?

Binks Trophy LVMP (Low Volume, Medium Pressure) spray guns combine high transfer efficiency and a fine finish with noticeably lower air consumption and faster application than HVLP. LVMP is the best all-round balance in the Trophy line — compliant-level efficiency without needing a large compressor.

CET stocks the full LVMP range in gravity, pressure and siphon feed, with 22-L, 23-L and 25-L air caps and fluid nozzles from 0.85 to 1.8mm. Pre-matched starter kits are available in gravity (2466-LV1) and pressure (2465-LV1) feed.

Key Advantages

LVMP at a Glance.

Lower Air Consumption Sprays at medium pressure with less CFM than HVLP, so it runs comfortably on smaller compressors without sacrificing efficiency.
High Transfer Efficiency Keeps material on the part and overspray down — close to HVLP efficiency with more usable speed.
Faster Application Higher atomizing pressure than HVLP lays material down more quickly for better production throughput.
Three Feed Options Available in gravity, pressure and siphon feed to match your material delivery, volume and shop setup.

Choose Your Configuration

Trophy LVMP Spray Guns

Every gun below is configured with a LVMP air cap and a matched fluid nozzle and needle. Pick by feed type and nozzle size, or start with a pre-matched kit.

Gravity Feed — 2 configurations

NozzleAir CapSKUPrice
1.2mm23-L2466-12LV-23SG$863View →
1.4mm23-L2466-14LV-23SG$863View →

Pressure Feed — 11 configurations

NozzleAir CapSKUPrice
0.85mm22-L2465-85LV-22S0$834View →
0.85mm25-L2465-85LV-25S0$834View →
1.0mm22-L2465-10LV-22S0$834View →
1.0mm23-L2465-10LV-23S0$834View →
1.0mm25-L2465-10LV-25S0$834View →
1.2mm23-H2465-12LV-23S0$834View →
1.2mm25-H2465-12LV-25S0$834View →
1.4mm23-L2465-14LV-23S0$834View →
1.4mm25-L2465-14LV-25S0$834View →
1.6mm23-L2465-16LV-23S0$834View →
1.8mm25-L2465-18LV-25S0$834View →

Siphon Cup — 1 configurations

NozzleAir CapSKUPrice
1.8mm23-L2465-18LV-23SS$893View →

Air Caps

Trophy LVMP Air Caps

The LVMP air caps available in the current Trophy lineup, with the feed types and nozzle sizes each is offered with. Air cap, fluid nozzle and needle are a matched set — order them together.

Air CapFeed TypesNozzle Sizes Offered
22-LPressure0.85mm · 1.0mm
23-HPressure1.2mm
23-LGravity · Pressure · Siphon1.0mm · 1.2mm · 1.4mm · 1.6mm · 1.8mm
25-HPressure1.2mm
25-LPressure0.85mm · 1.0mm · 1.4mm · 1.8mm

Spare Parts & Service

Trophy LVMP Spare Parts & Manuals

Full exploded diagrams, part numbers, air-cap charts and service instructions are organized by feed type. Choose the breakdown that matches your gun.

Need Help Speccing Your Trophy LVMP?

CET is an authorized Binks distributor. We’ll confirm the right nozzle, cap, needle and feed for your coating and ship documentation with every order.

CET is an authorized Binks distributor with over 20 years of finishing-equipment experience. Call or text 586-210-0555  ·  sales@cetinc.com
