Binks Trophy HVLP

(Showing 23 of 23)



Binks Trophy · High Volume, Low Pressure — Compliant · Authorized Distributor

Binks Trophy HVLP
Professional HVLP Spray Guns · Gravity, Pressure & Siphon Feed

22 Configurations Nozzles 0.85 – 1.8mm Air Caps: 31-H · 32-H · 33-H · 39-H Gravity / Pressure / Siphon Feed

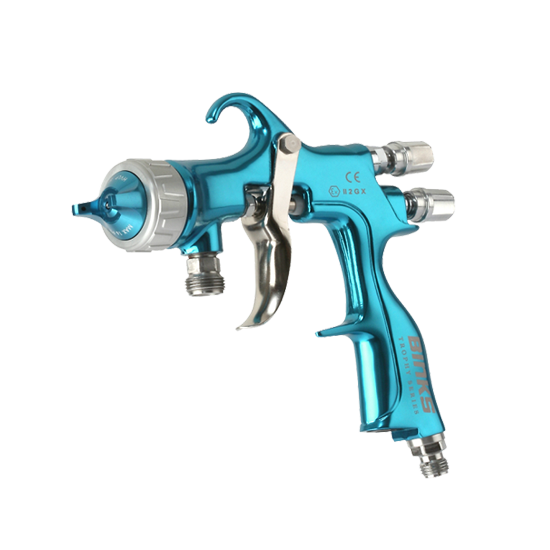

Binks Trophy HVLP Spray Gun

Not sure which Trophy HVLP setup fits your coating?   CET’s technical team will spec the right nozzle, cap and feed for your material.

586-210-0555 sales@cetinc.com

The Trophy HVLP Platform

Why HVLP?

Binks Trophy HVLP (High Volume, Low Pressure) spray guns atomize at low cap pressure to deliver high transfer efficiency and dramatically reduced overspray. HVLP is the compliant-gun standard — meeting transfer-efficiency requirements in regulated air districts while putting more material on the part and less into the air.

CET stocks the full HVLP range in gravity, pressure and siphon feed, with 31-H, 32-H, 33-H and 39-H air caps and fluid nozzles from 0.85 to 1.8mm. Pre-matched starter kits are available in gravity (2466-HV1) and pressure (2465-HV1) feed.

Key Advantages

HVLP at a Glance.

High Transfer Efficiency More of every gallon ends up on the part — cutting material cost, reducing overspray and improving shop profitability on every job.
Compliant Atomization Low cap pressure meets HVLP transfer-efficiency requirements for regulated air districts and emissions rules.
Reduced Overspray Less bounce-back means cleaner booths, less masking and a safer, lower-waste spray environment.
Three Feed Options Available in gravity, pressure and siphon feed to match your material delivery, volume and shop setup.

Choose Your Configuration

Trophy HVLP Spray Guns

Every gun below is configured with a HVLP air cap and a matched fluid nozzle and needle. Pick by feed type and nozzle size, or start with a pre-matched kit.

Gravity Feed — 3 configurations

NozzleAir CapSKUPrice
1.2mm32-H2466-12HV-32SG$863View →
1.4mm32-H2466-14HV-32SG$863View →
1.8mm32-H2466-18HV-32SG$863View →

Pressure Feed — 17 configurations

NozzleAir CapSKUPrice
0.85mm31-H2465-85HV-31P0CallView →
0.85mm32-H2465-85HV-32S0$834View →
0.85mm33-H2465-85HV-33S0$834View →
0.85mm39-H2465-85HV-39S0$834View →
1.0mm31-H2465-10HV-31P0$884View →
1.0mm32-H2465-10HV-32S0$834View →
1.0mm33-H2465-10HV-33S0$834View →
1.0mm39-H2465-10HV-39S0$834View →
1.2mm31-H2465-12HV-31P0$884View →
1.2mm32-H2465-12HV-32S0$834View →
1.2mm39-H2465-12HV-39S0$834View →
1.4mm31-H2465-14HV-31P0$884View →
1.4mm32-H2465-14HV-32S0$834View →
1.4mm39-H2465-14HV-39S0$834View →
1.6mm32-H2465-16HV-32S0$834View →
1.8mm32-H2465-18HV-32S0$834View →
1.8mm39-H2465-18HV-39S0$834View →

Siphon Cup — 2 configurations

NozzleAir CapSKUPrice
1.4mm32-H2465-14HV-32SS$893View →
1.8mm32-H2465-18HV-32SS$893View →

Air Caps

Trophy HVLP Air Caps

The HVLP air caps available in the current Trophy lineup, with the feed types and nozzle sizes each is offered with. Air cap, fluid nozzle and needle are a matched set — order them together.

Air CapFeed TypesNozzle Sizes Offered
31-HPressure0.85mm · 1.0mm · 1.2mm · 1.4mm
32-HGravity · Pressure · Siphon0.85mm · 1.0mm · 1.2mm · 1.4mm · 1.6mm · 1.8mm
33-HPressure0.85mm · 1.0mm
39-HPressure0.85mm · 1.0mm · 1.2mm · 1.4mm · 1.8mm

Spare Parts & Service

Trophy HVLP Spare Parts & Manuals

Full exploded diagrams, part numbers, air-cap charts and service instructions are organized by feed type. Choose the breakdown that matches your gun.

Need Help Speccing Your Trophy HVLP?

CET is an authorized Binks distributor. We’ll confirm the right nozzle, cap, needle and feed for your coating and ship documentation with every order.

CET is an authorized Binks distributor with over 20 years of finishing-equipment experience. Call or text 586-210-0555  ·  sales@cetinc.com
