Lynx L100C General Purpose Spray Gun

(Showing 40 of 40)






C.A. Technologies · Authorized Distributor

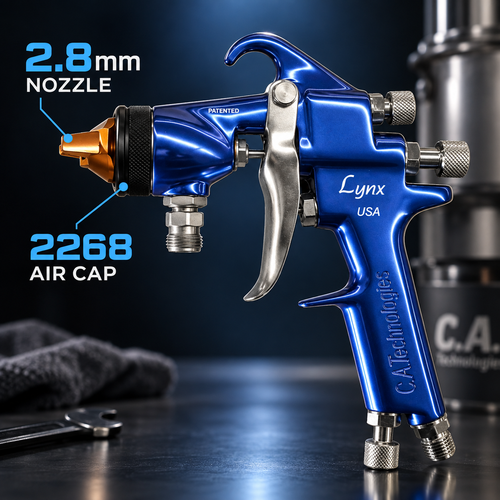

Lynx L100C
Conventional Spray Gun

General Purpose · Pressure · Siphon · Internal Mix · US Made

US Made 50 PSI Max 21 Air Caps

Need help selecting the right setup?  Our team will match you to the right configuration before you order.

? 586-210-0555 ✉ sales@cetinc.com
21
Air Caps
25
Configurations
2.8mm
Max Orifice
3
Feed Types
US
Made

Overview

One Gun.
Every Coating.

The C.A. Technologies Lynx L100C is a high-quality general-purpose conventional spray gun engineered for versatile applications across pressure feed, siphon feed, and internal mix configurations.

With all stainless steel fluid passages, compatibility with carbide-tipped and internal mix nozzles, and a selection of 21 air caps, the Lynx 100C handles everything from very thin inks and dyes to ultra-heavy body adhesives and high solid industrial coatings.

Built in the USA on a forged aluminum body — lightweight, durable, and production-ready at 50 PSI max.

Why Choose the Lynx 100C?

Built for
Production Finishing.

Heavy Industrial Coatings Heavy body primers, high solid enamels, and automotive coatings — especially with 1.8mm–2.8mm orifice and pressure feed.
Abrasive Materials Carbide-tipped fluid nozzle options resist premature wear when spraying abrasive or particle-laden coatings.
Full Viscosity Range From very thin inks at 0.8mm siphon to ultra-heavy adhesives at 2.8mm internal mix — all in a single gun platform.
Internal Mix Applications 21-200 and 21-2201 internal mix air caps enable spraying of latex and materials that can't be atomized externally.

Material Selection

Viscosity Selection Guide

Match your coating to the correct fluid orifice range, then use the variant table below to find your exact setup.

ViscosityZahn #2 RangeTypical MaterialsRecommended Orifice
Very Thin<16 sec.Inks, dyes, solvents, stains0.8mm – 1.0mm
Thin16–20 sec.Lacquers, enamels, primers, sealers1.0mm – 1.3mm
Medium21–30 sec.Automotive base coat, enamels, primers, epoxies, urethanes, clear coat1.3mm – 1.8mm
Heavy>30 sec.Heavy body primers, high solid enamels, adhesives1.8mm – 2.8mm

All Configurations

Find the Right Lynx 100C Setup

Match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.

SetupFeedOrificeAir CapCFMPatternBest For
SIPHON FEED
L100C-08-2466Siphon0.8mm21-24661513"Very thin — inks, dyes, stains at high siphon output
L100C-08-1590Siphon0.8mm21-1590Low—Very thin — restricted air supply or sensitive substrates
L100C-10-2466Siphon1.0mm21-24661513"Thin — lacquers, enamels, primers at high siphon output
L100C-12-2266Siphon1.2mm21-22661210"Base coat, enamels, lacquers — small shop / moderate compressor
L100C-15-2266Siphon1.5mm21-22661210"Medium body enamels, primers at controlled siphon output
L100C-18-2266Siphon1.8mm21-22661210"Heavy body siphon at tight 10" pattern — detail work, smaller parts
L100C-15-2366Siphon1.5mm21-23661214"Medium body siphon with wide 14" pattern — panels, flat surfaces
L100C-18-2366Siphon1.8mm21-23661214"Wide siphon for thick base coats, epoxy primers, urethanes
L100C-15-2466Siphon1.5mm21-24661513"High-output siphon for thick enamels, high-build primers, adhesives
L100C-18-2466Siphon1.8mm21-24661513"Max siphon output — heavy body coatings, thick primers, adhesives
L100C-18V-2466Siphon1.8mm Carbide21-24661513"Abrasive / particle-laden coatings — carbide tip resists wear
L100C-18-1590Siphon1.8mm21-1590Low—Heavy body — restricted air or low atomization pressure required
PRESSURE FEED
L100C-12-2263Pressure1.2mm21-22631414"Mid-output pressure feed — base coat, enamel, primer
L100C-13-2263Pressure1.3mm21-22631414"Automotive base coat, enamels, medium primers — pressure feed
L100C-18-2263Pressure1.8mm21-22631414"Heavy body pressure feed — thick primers, epoxies, urethanes
L100C-12-2266-3Pressure1.2mm21-2266-316.215"Max coverage — base coat, enamels, panels at production speed
L100C-13-2266-3Pressure1.3mm21-2266-316.215"High-output — base coat, single stage, production panel spraying
L100C-18-2266-3Pressure1.8mm21-2266-316.215"Max pressure output — heavy body primers, epoxies, urethanes at full pattern
L100C-18-2266-3TPressure1.8mm21-2266-3T16.215"Reactive coatings, 2K epoxies — Teflon cap resists material buildup
L100C-22-2167Pressure2.2mm21-216714.512"Very heavy body — high solid enamels, heavy primers, adhesives
L100C-22-2709Pressure2.2mm21-2709——Very heavy body — high solid coatings, thick adhesives
L100C-18-2709Pressure1.8mm21-2709——Heavy body pressure — epoxies, urethanes, high solid primers
INTERNAL MIX
L100C-18-201Internal Mix1.8mm21-2005.2—Internal mix at 1.8mm — heavy body coatings, Binks 200 replacement
L100C-22-201Internal Mix2.2mm21-22015.2—Max-flow internal mix — ultra-heavy body coatings, thick adhesives
L100C-28-201Internal Mix2.8mm21-2201 IM5.2—Max orifice internal mix — ultra-heavy body, thick adhesives, caulks

CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration.

Technical Data

Key Specifications

Air Inlet1/4” NPS (m)
Fluid Inlet3/8” NPS (m)
Weight20 oz.
Max Inlet Pressure50 PSI
Air Consumption5 CFM – 16.2 CFM (cap dependent)
BodyForged Aluminum
Fluid PassagesAll Stainless Steel
Feed OptionsPressure, Siphon, Internal Mix
Nozzle OptionsStainless Steel, Carbide-Tipped, Internal Mix
OriginUS Made
Repair Kit10-106

Complete Systems

Available Outfits

Part NumberTypeDescription
OL100C-303R21 QT Pressure CupLynx 100C with 1 QT aluminum pressure cup
OL100C-3011 QT Siphon CupLynx 100C with 1 QT aluminum siphon cup
OL100C-1302 Qt EconomyIncludes 5’ hose assemblies
OL100C-6002 Qt BanditIncludes 5’ hose assemblies
Tank Outfits2.5 – 15 Gallon25’ hose assemblies — continuous production runs

How Part Numbers Work

Every model number follows: GUN CODE – NOZZLE SIZE – AIR CAP

L100C - 18 - 2466
Lynx 100C 1.8mm nozzle 21-2466 air cap

Common Questions

Frequently Asked Questions

What is the Lynx 100C best for?

A general purpose conventional air spray gun for production use across industrial finishing, automotive refinishing, woodworking, and adhesive application. Handles materials from very thin inks to ultra-heavy body adhesives.

Siphon feed vs. pressure feed?

Siphon feed draws material up from a cup below the gun. Pressure feed pushes material under regulated pressure from a cup or pot. Pressure feed delivers more consistent flow on heavier materials and at higher production volumes.

What does internal mix mean?

Air and fluid combine inside the air cap before exiting the gun. Used for materials that can’t be atomized by conventional external mix caps — including very heavy body coatings, latex finishes, and architectural materials.

What fluid nozzle size do I need?

Very thin materials: 0.8mm–1.0mm. Thin to medium: 1.0mm–1.5mm. Heavy body and adhesives: 1.8mm–2.8mm. Contact CET with your material type and viscosity if unsure.

What repair kit does the Lynx 100C use?

All Lynx 100C configurations use repair kit 10-106 — includes all wear seals, o-rings, springs, and needle seal components for a complete rebuild.

Why Buy From CET

The CET Difference

20+ Years of Experience

CET has been matching customers to the right C.A. Technologies configuration for over 20 years. We know these guns and the applications they go into inside and out.

Real Technical Support

Call or text 586-210-0555 to reach CET's technical team. We'll confirm nozzle, air cap, and compressor requirements before you order — right the first time.

Verified Parts In Stock

Gun, repair kit 10-106, air caps, cups, and spare parts all in stock. You're never waiting on back-ordered components. Documentation included with every order.

Lynx L100C Parts Manual & Breakdown

Full exploded diagram, air cap chart, nozzle selection guide & replacement part numbers for every L100C configuration.

↓ Parts & Manual

Contact CET with your material type, viscosity, and compressor capacity — we'll confirm the correct Lynx 100C configuration before you order.  586-210-0555  ·  sales@cetinc.com
