Devilbiss
SKU: 905082

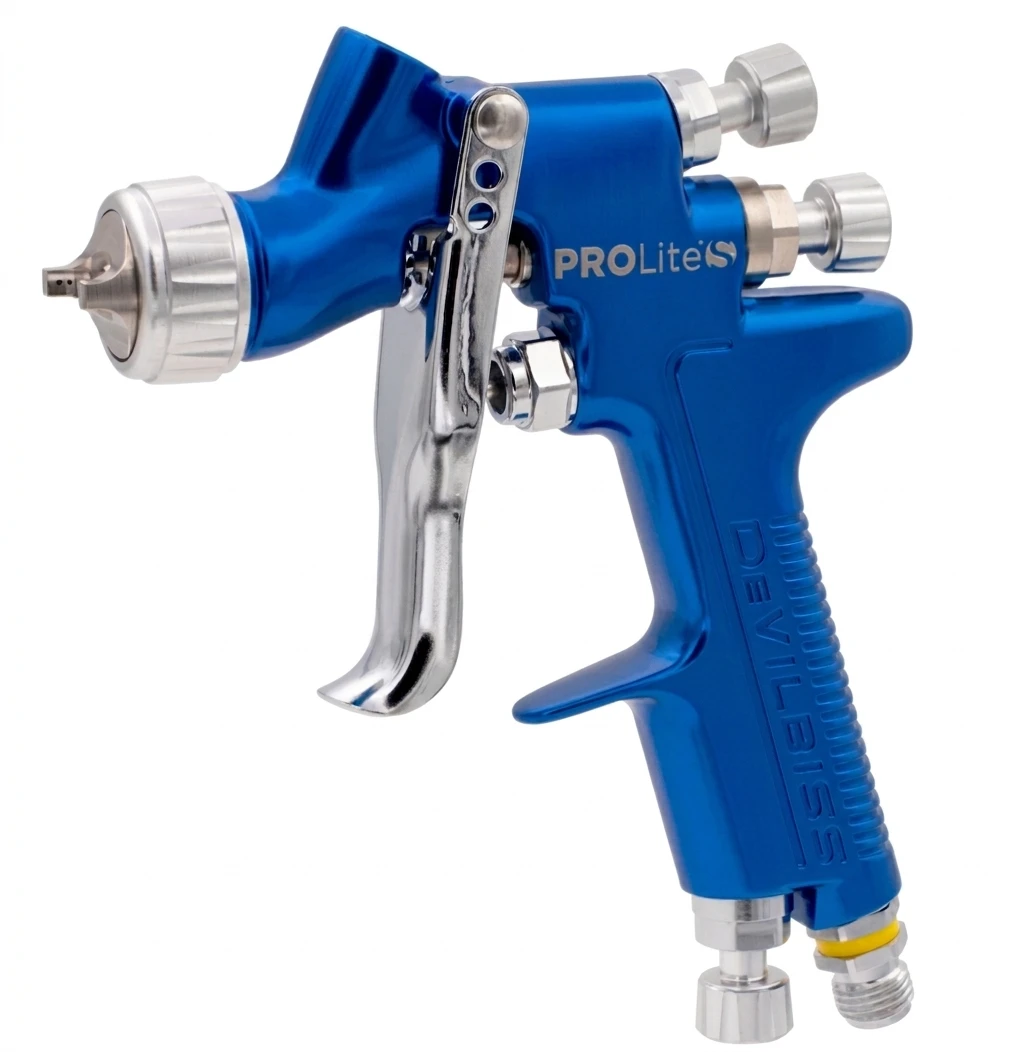

Devilbiss Prolite-S Gravity, HV5, TE5, 1.0mm, Cupped (905082)
$690.00
| ◆ Lightweight, precision-engineered trigger action for excellent control and superb feathering |
| ◆ Comprehensive range of air cap, fluid nozzle, and needle combinations for all waterborne and solventborne materials |
| ◆ Renowned DeVilbiss fit, feel, and balance — ergonomically designed anodized forged aluminum gun body |
| ◆ Combines full-size gun performance and durability with lightweight pinpoint delivery for spot repairs |
| ◆ Compact front end provides optimum visibility of the fan pattern — even in restricted spaces |
| ◆ Heavy-duty anodized finish built for high-throughput body shop durability |
| ◆ Successor to the DeVilbiss SRi-Pro Lite — same air cap compatibility, upgraded gun body |
| Specification | Value |
| Weight (Gun Only) | 395 g (14.0 oz) |
| Weight (with Cup) | 455 g (16.0 oz) |
| Cup Capacity | 125 mL (4.2 oz) Acetal Gravity Feed |
| Nozzle Range | 0.6 mm – 1.4 mm |
| Gun Body | Anodized Forged Aluminum |
| Fluid Nozzle / Needle | Stainless Steel |
| Air Cap | Plated Brass |
| Air Inlet Thread | 1/4" Universal (fits BSP & NPS) |
| Atomization Types | HVLP, High Efficiency |
| Applications | Spot Repair, Bumper Bars, Wheels, Touch-Up, Micro Repair, SMART Repair |
| Predecessor | DeVilbiss SRi-Pro Lite |
| Air Cap | Type | Inlet Pressure | Air Consumption | Fan Pattern | Nozzles |
| TE5 | High Efficiency | 29 psi (2.0 bar) | 3.5 cfm (100 L/min) | 180 mm (7.1") | 0.8–1.4 mm |
| HV5 | HVLP | 29 psi (2.0 bar) | 4.8 cfm (135 L/min) | 160 mm (6.3") | 0.8–1.4 mm |
| MC1 | High Efficiency (MICRO) | 15 psi (1.0 bar) | 1.8 cfm (50 L/min) | 25 mm (1.0") | 0.6 mm only |
| RS1 | High Efficiency (ROUND) | 29 psi (2.0 bar) | 1.9 cfm (55 L/min) | 25–50 mm (1–2") | 0.8–1.4 mm |
| Part No. | Description | Air Caps | Nozzle | Cup |
| 905081 | PROLite-S Gravity HVLP & HE Micro Kit | HV5 & MC1 | 0.6 mm | 125 mL Acetal |
| 905082 | PROLite-S Gravity HVLP & HE Kit | TE5 & HV5 | 1.0 mm | 125 mL Acetal |
Air Cap Assemblies
|
Fluid Nozzles & Needles
|
| PROLITE-S | Spray Gun Model |
| HV5 / TE5 / MC1 / RS1 | Air Cap (HVLP / High Efficiency / Micro / Round Spray) |
| 06 / 08 / 10 / 12 / 14 | Nozzle size (0.6 / 0.8 / 1.0 / 1.2 / 1.4 mm) |
| What’s the difference between the PROLite and the PROLite-S? The PROLite is a full-size professional basecoat/clearcoat spray gun designed for full panel and overall refinish work, with larger air caps (TE10, TE20, TE25, T110, HV30) and 1.1–1.5 mm nozzles. The PROLite-S is the compact touch-up and spot repair version with smaller air caps (TE5, HV5, MC1, RS1), a 125 mL cup, and nozzle range from 0.6–1.4 mm — purpose-built for SMART repairs, bumper work, and blending metallics over small areas. |
| Does the PROLite-S replace the SRi-Pro Lite? Yes. The PROLite-S is the factory successor to the DeVilbiss SRi-Pro Lite. It uses the same air caps (TE5, HV5, MC1, RS1) with an upgraded gun body, improved ergonomics, and the heavy-duty anodized finish from the PROLite platform. |
| Which air cap should I choose? For general spot repair and touch-up work on basecoats and clearcoats, the TE5 (High Efficiency) is the most versatile choice with the lowest air consumption at 3.5 cfm. The HV5 (HVLP) provides a slightly wider fan for larger spot repairs. The MC1 is a specialized micro cap for pinpoint repairs with a 25 mm (1") pattern — ideal for very small chips and blemishes. The RS1 delivers a round spray pattern for specialized applications. |
| Can I use the PROLite-S with waterborne coatings? Yes. The PROLite-S is specifically designed and precision-engineered for perfect atomization of all the latest waterborne and solventborne automotive refinish coatings, including low-VOC, high-solids, metallic, and special-effect materials. |
| Does CET carry parts for the PROLite-S? Yes. CET stocks PROLite-S air caps, fluid nozzles, needles, and repair kits. Contact us at 586-210-0555 (call or text) for availability and pricing on any PROLite-S part number. |
| PROLite Full-Size Basecoat / Clearcoat Gun Full-panel refinish, overall basecoat and clearcoat. 5 air caps (TE10, TE20, TE25, T110, HV30). Nozzle range 1.1–1.5 mm. 560 mL or 900 mL cup options. Shop PROLite → | PROLite-S YOU ARE HERE Touch-Up & Spot Repair Gun SMART repair, bumper bars, wheels, micro spot repair. 4 air caps (TE5, HV5, MC1, RS1). Nozzle range 0.6–1.4 mm. 125 mL cup. Successor to SRi-Pro Lite. |
| Need Help Choosing? Our team can help you select the right PROLite-S configuration for your application. Call 586-210-0555 View Full-Size PROLite → |
