Devilbiss Advance HD Conventional

(Showing 10 of 10)



DEVILBISS  |  INDUSTRIAL FINISHING

DeVilbiss Advance HD® Conventional Spray Guns

The all-purpose mid-sized spray gun for industrial finishing. The Advance HD Conventional range delivers high-output atomization through a balanced air valve design and high-capacity air passages, available in gravity, suction, and pressure feed configurations with six conventional air cap options covering everything from fine detail work to high-viscosity coatings.

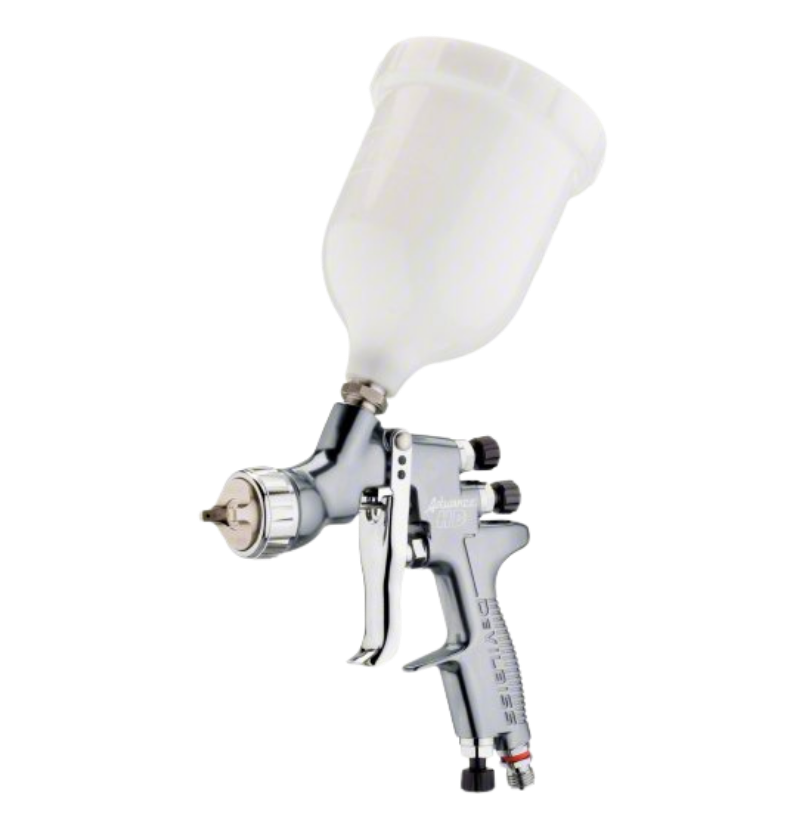

DeVilbiss Advance HD Conventional Gravity Feed Spray Gun with Cup

Gravity Feed

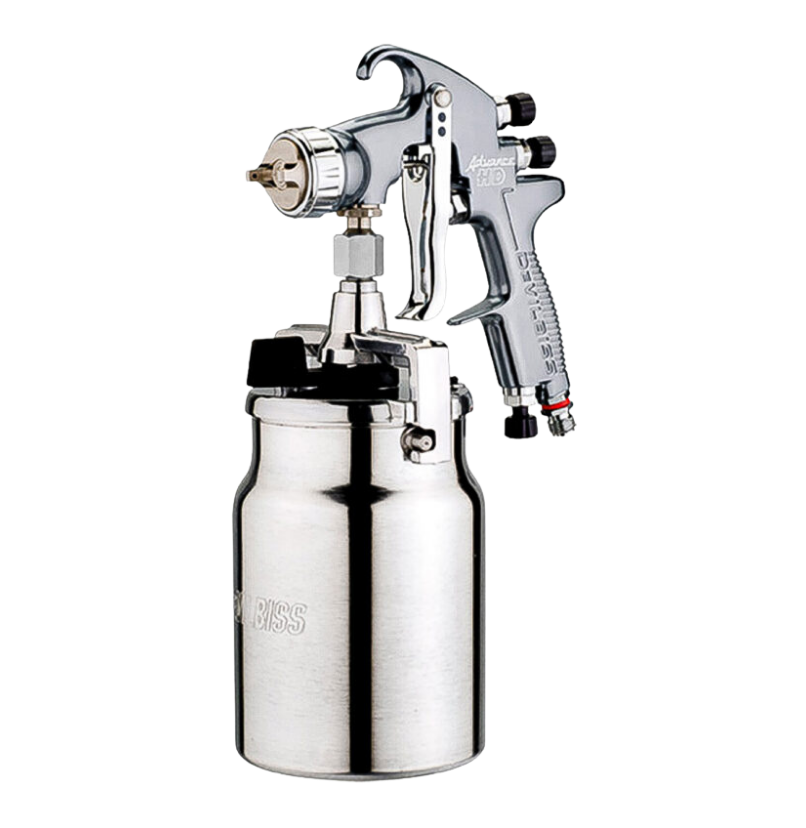

 DeVilbiss Advance HD Conventional Suction Feed Spray Gun with 1L Cup

Suction Feed

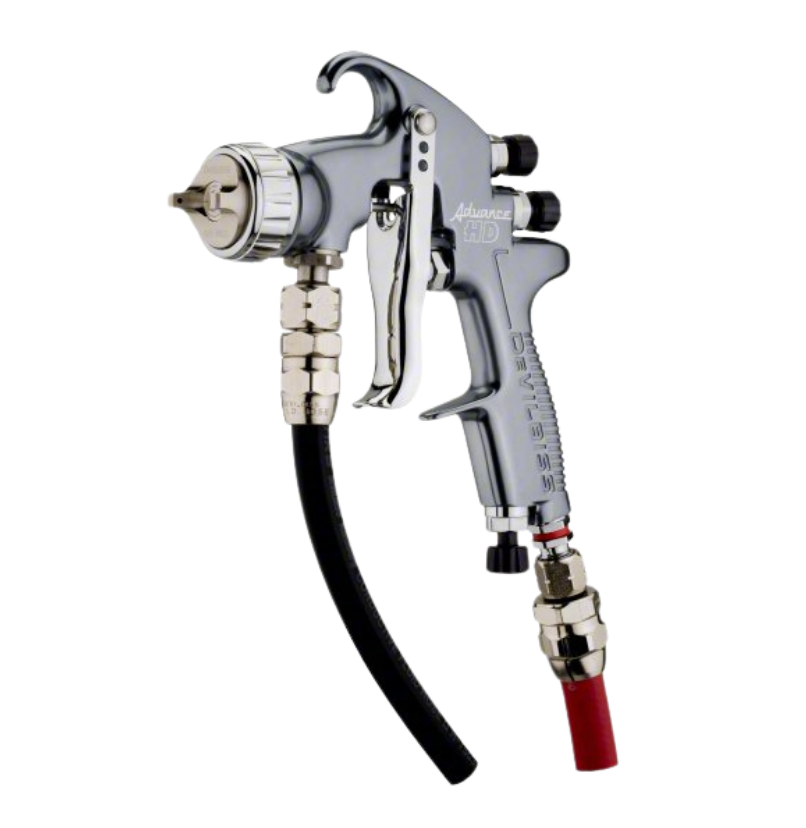

 DeVilbiss Advance HD Conventional Pressure Feed Spray Gun

Pressure Feed

6

Air Cap Options

3

Feed Types

0.85–2.8mm

Nozzle Range

45–50 PSI

Inlet Pressure

CE / ATEX

Approved

Features & Benefits

▶ Robust, lightweight design built for high-demand industrial output
▶ Contoured handle design greatly reduces RSI and operator fatigue
▶ Balanced air valve for lighter trigger pull and improved air flow
▶ Self-adjusting PTFE needle packing assembly
▶ Wide 1/2" (12mm) hook opening for easy hanging

Construction

▶ Heavily anodized aluminum alloy body
▶ Stainless steel tips, needles, and fluid passageways
▶ Plated hard brass conventional air caps
▶ Air inlet: 1/4" Universal (BSP & NPS)
▶ Fluid inlet: 3/8" Universal (BSP & NPS) — pressure models

Conventional Air Cap Comparison

All caps are conventional atomization. Fan pattern and fluid output vary by air cap — select based on your material viscosity and production requirements.

Air CapSCFMInlet PSIFluid Range (ml/min)Fan (mm)PressureGravitySuction
430 12.0 50 200–280 200 0.85–2.2mm 1.2–2.2mm 1.4–2.2mm
443 12.6 45 200–300 300 0.85–2.2mm 1.2–2.2mm 1.6–2.2mm
462 13.5 45 500–3000 450 2.2, 2.8mm* — —
470 16.4 45 500–1800 420 2.2, 2.8mm* — 2.8mm
477 17.0 45 200–800 430 0.85–2.2mm — —
497 18.0 50 200–600 380 0.85–2.2mm — —

* Ceramic material nozzles. Hardened & tungsten carbide tips and needles available in select sizes.

How Part Numbers Work

ADV–P430–14
ADV = Advance HD   |   P / G / S = Pressure / Gravity / Suction   |   430 = Air Cap   |   14 = 1.4mm Nozzle

Gravity Feed Kits

Includes gun body, air cap, fluid tip & needle, and 568mL gravity cup. Click any row for details and pricing.

Part NumberAir CapNozzleCup
ADV-G430-14 430 1.4mm 568mL
ADV-G430-18 430 1.8mm 568mL
ADV-G443-13 CONTACT CET 443 1.3mm 568mL
ADV-G443-18 CONTACT CET 443 1.8mm 568mL

Additional nozzle sizes available — call or text 586-210-0555 for configurations not shown.

Suction Feed Kits

Includes gun body, air cap, fluid tip & needle, and 1 liter suction cup.

Part NumberAir CapNozzleCup

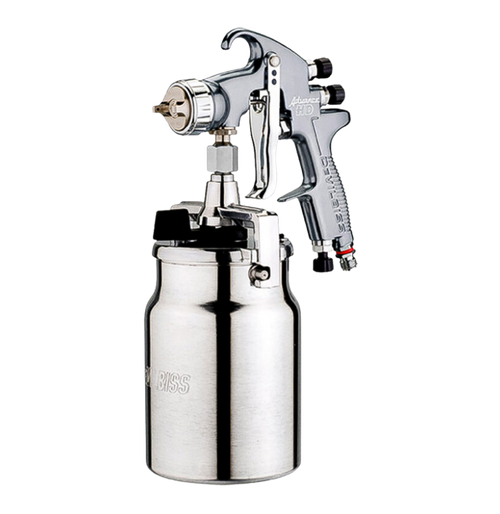

ADV-S430-18 430 1.8mm 1L
ADV-S430-16 CONTACT CET 430 1.6mm 1L
ADV-S443-16 CONTACT CET 443 1.6mm 1L
ADV-S443-20 CONTACT CET 443 2.0mm 1L

Additional nozzle sizes available — call or text 586-210-0555 for configurations not shown.

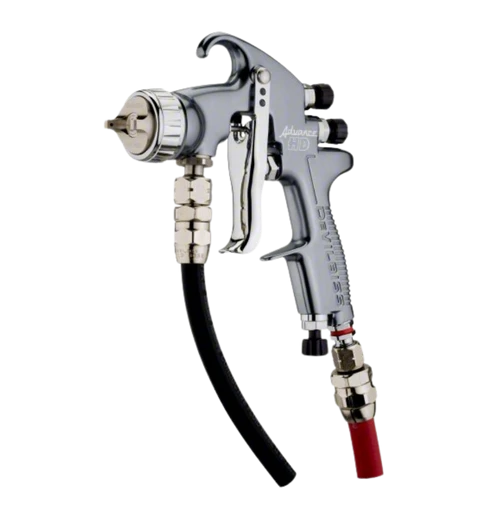

Pressure Feed Guns

Gun body only (no cup) — connects to external pressure pot or pump via 3/8" fluid inlet.

Part NumberAir CapNozzle
ADV-P430-085 430 0.85mm
ADV-P430-18 430 1.8mm
ADV-P497-10 497 1.0mm
ADV-P497-14 497 1.4mm
ADV-P477-18 CONTACT CET 477 1.8mm

Additional air cap / nozzle combinations available — call or text 586-210-0555 for configurations not shown.

Need Spare Parts or a Manual?

View the full Advance HD breakdown, spare parts list, and downloadable service manual.

 VIEW PARTS & MANUALS

Need help selecting the right configuration? Call or text 586-210-0555 — Coating Equipment Technology, factory-authorized DeVilbiss distributor since 1964.
