DeVilbiss Advance HD® Compliant Spray Guns

The Advance HD Compliant range features HVLP and Trans-Tech air cap technologies for high transfer efficiency and regulatory compliance. Available in gravity, suction, and pressure feed configurations with eleven compliant air cap options — from precision detail caps to high-output production caps — matched with stainless steel fluid components and plated hard brass air caps for a long working life.

Gravity Feed

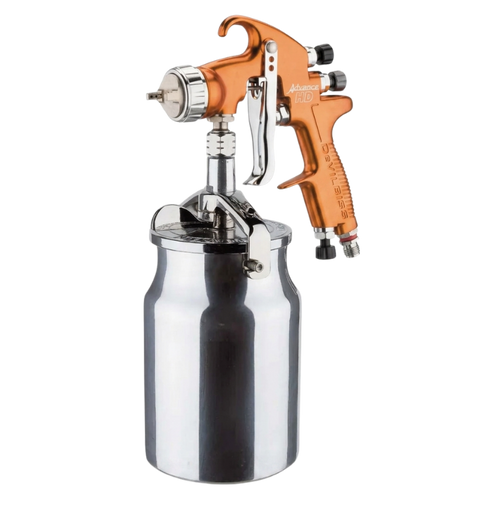

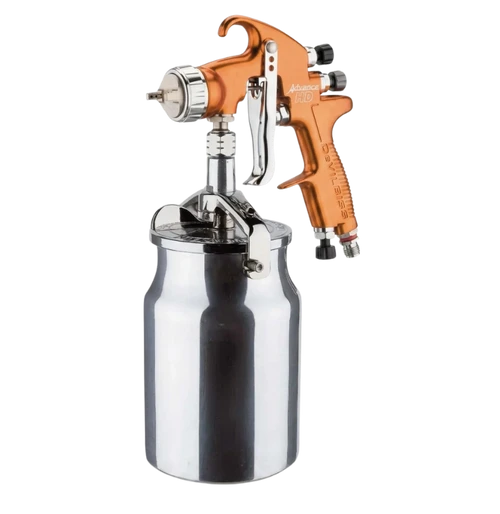

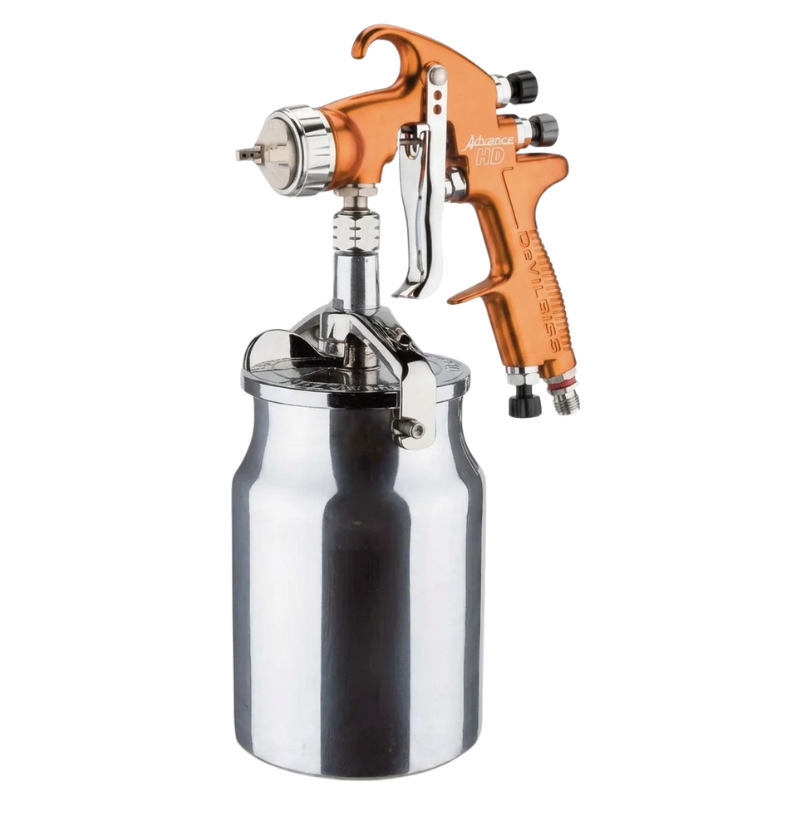

Suction Feed

Pressure Feed

Air Cap Options

Feed Types

0.5–2.8mm

Nozzle Range

HVLP & TT

Atomization Types

CE / ATEX

Approved

Features & Benefits

▶	HVLP and Trans-Tech compliant atomization for regulatory compliance
▶	High transfer efficiency for significant paint savings
▶	Contoured handle design greatly reduces RSI and operator fatigue
▶	Balanced air valve for lighter trigger pull and improved air flow
▶	Self-adjusting PTFE needle packing assembly

Construction

▶	Heavily anodized aluminum alloy body
▶	Stainless steel tips, needles, and fluid passageways
▶	Plated hard brass HVLP & Trans-Tech air caps
▶	Air inlet: 1/4" Universal (BSP & NPS)
▶	Fluid inlet: 3/8" Universal (BSP & NPS) — pressure models

Compliant Air Cap Comparison

HVLP caps operate at 0.7 bar (10 PSI) at the cap. Trans-Tech caps offer compliant transfer efficiency at higher working pressures. Select based on your regulatory requirements and production needs.

Air Cap	Type	SCFM	Inlet PSI	Fan (mm)	Pressure	Gravity	Suction
500R	HVLP	7.0	14	Round	0.85–2.2mm	1.3–2.2mm	1.6–2.2mm
505	HVLP	13.6	19	270	0.85–2.2mm	1.3–2.2mm	1.6–2.2mm
590HV	HVLP	7.1	14	120	Detail cap — 0.5, 0.7, 1.0mm (pressure feed only)
510	TRANS-TECH	10.0	29	270	0.85–2.2mm	1.3–2.2mm	1.6–2.2mm
513	TRANS-TECH	14.1	29	350	0.85–2.2mm	1.3–2.2mm	1.6–2.2mm
515	TRANS-TECH	12.9	29	320	Pressure feed only — 0.85–2.8mm
520	TRANS-TECH	10.0	29	280	Pressure feed only — 0.85–2.2mm
522	TRANS-TECH	14.5	29	350	Pressure feed only — 0.85–2.8mm
523	TRANS-TECH	14.5	29	300	Pressure feed only — 0.85–2.8mm
590	TRANS-TECH	7.8	29	150	Detail cap — 0.5, 0.7, 1.0mm (pressure feed only)
591	TRANS-TECH	7.8	29	150	Detail cap — 0.5, 0.7, 1.0mm (pressure feed only)

HVLP caps (500R, 505) operate at 0.7 bar (10 PSI) at the cap. All flow rates and fan sizes may vary by material viscosity and pressure.

How Part Numbers Work

ADV–G510–14

ADV = Advance HD | P / G / S = Pressure / Gravity / Suction | 510 = Air Cap | 14 = 1.4mm Nozzle

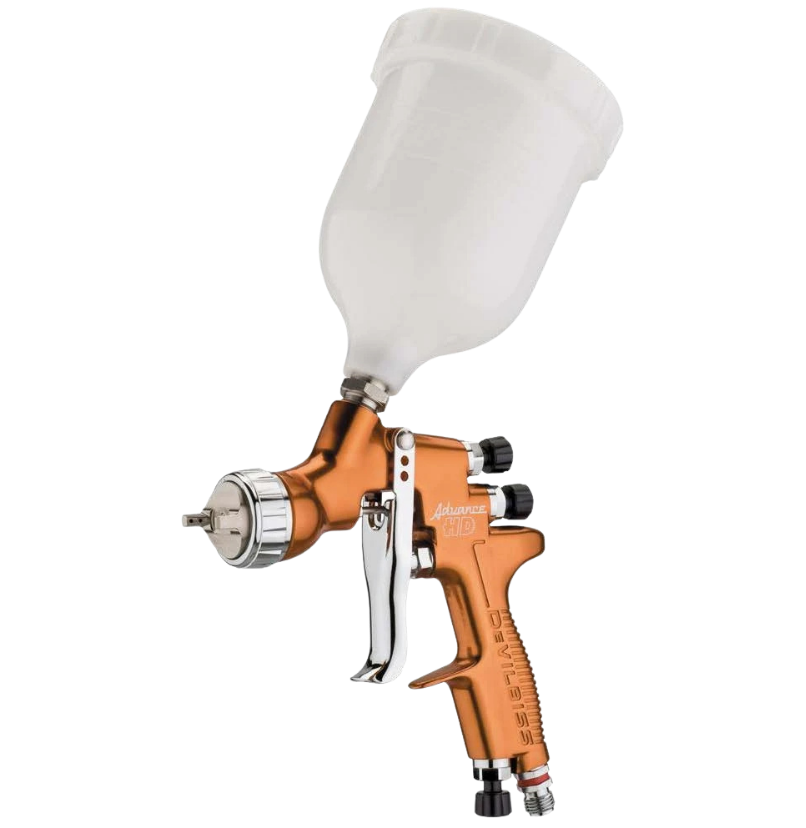

Gravity Feed Kits

Includes gun body, air cap, fluid tip & needle, and 568mL gravity cup. Click any row for details and pricing.

Part Number	Air Cap	Type	Nozzle	Cup
ADV-G506-14	505	HVLP	1.4mm	568mL
ADV-G506-18	505	HVLP	1.8mm	568mL
ADV-G507-14-DPC	505	HVLP	1.4mm	DeKups
ADV-G510-14	510	TRANS-TECH	1.4mm	568mL
ADV-G510-18	510	TRANS-TECH	1.8mm	568mL
ADV-G513-12	513	TRANS-TECH	1.2mm	568mL
ADV-G513-18	513	TRANS-TECH	1.8mm	568mL

Additional nozzle sizes available — call or text 586-210-0555 for configurations not shown.

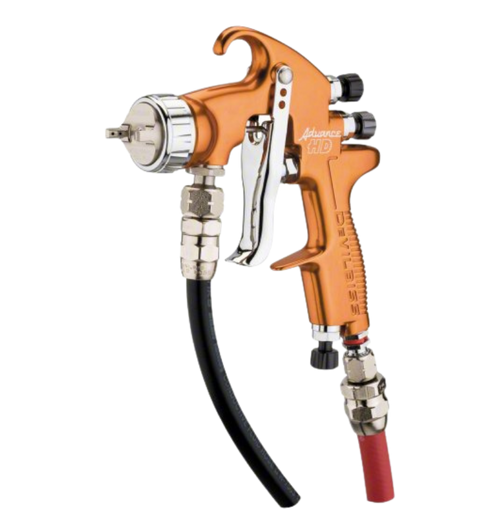

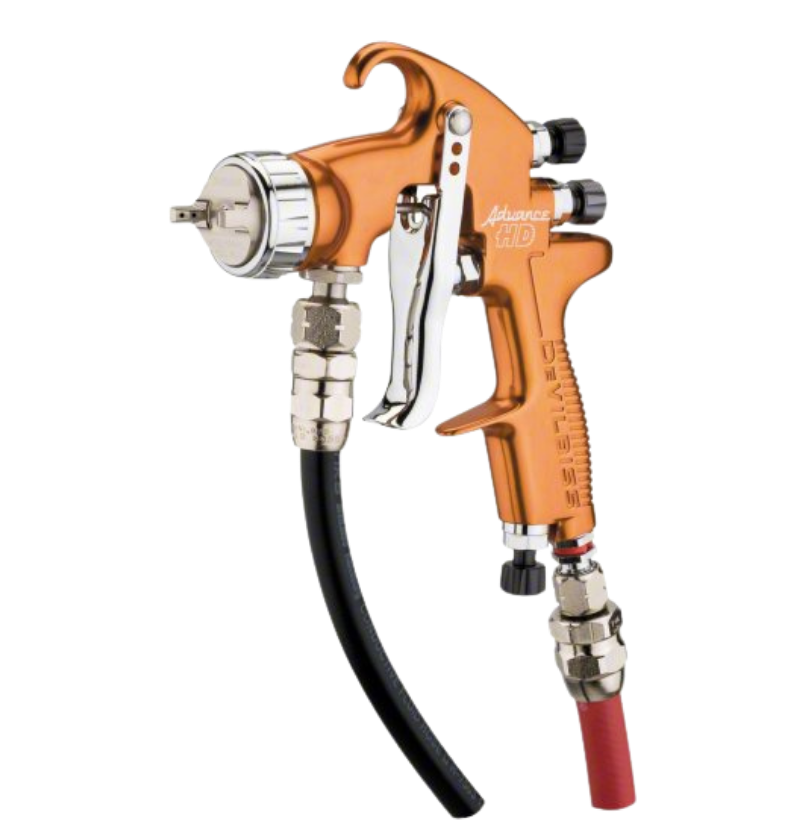

Pressure Feed Guns

Gun body only (no cup) — connects to external pressure pot or pump via 3/8" fluid inlet.

Part Number	Air Cap	Type	Nozzle

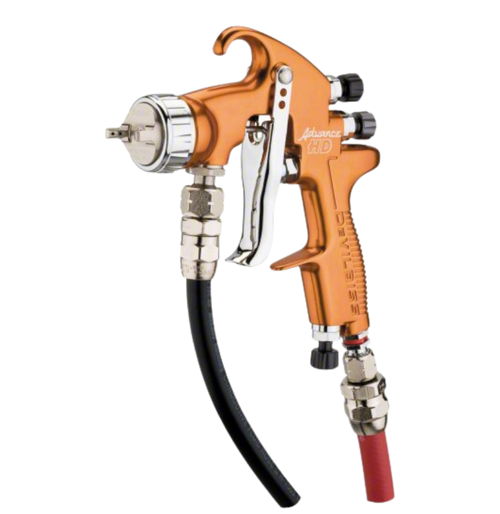

ADV-P507-22	505	HVLP	2.2mm
ADV-P510-085	510	TRANS-TECH	0.85mm
ADV-P510-10	510	TRANS-TECH	1.0mm
ADV-P510-14	510	TRANS-TECH	1.4mm
ADV-P510-18	510	TRANS-TECH	1.8mm
ADV-P522-085	522	TRANS-TECH	0.85mm

Additional air cap / nozzle combinations available — call or text 586-210-0555 for configurations not shown.

Need Spare Parts or a Manual?

View the full Advance HD breakdown, spare parts list, and downloadable service manual.

VIEW PARTS & MANUALS

Need help selecting the right configuration? Call or text 586-210-0555 — Coating Equipment Technology, factory-authorized DeVilbiss distributor since 1964.
