DEVILBISS  |  AUTOMOTIVE REFINISHING

DeVilbiss PROLite® Gravity Spray Guns

The DeVilbiss PROLite delivers exceptional atomization and color matching for today's automotive refinish coatings — including low VOC, high solids, pearls, and metallics. Precision-built with a drop-forged aluminum body, stainless steel fluid components, and nickel-plated brass air caps for professional-grade durability in demanding spray environments.

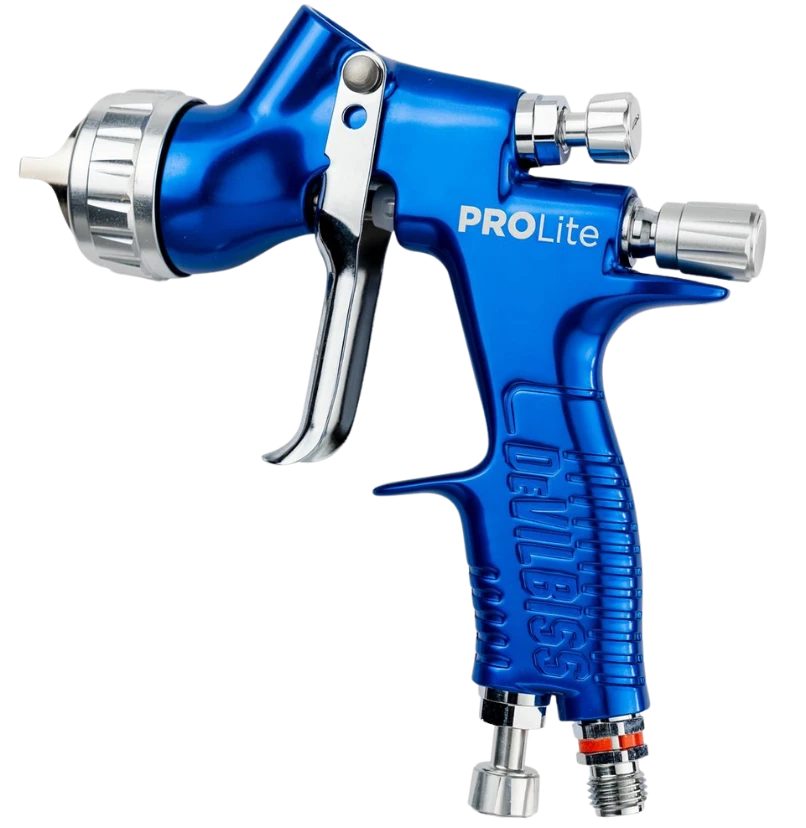

DeVilbiss PROLite Gravity Spray Gun - Blue Anodized Body

Gravity Feed

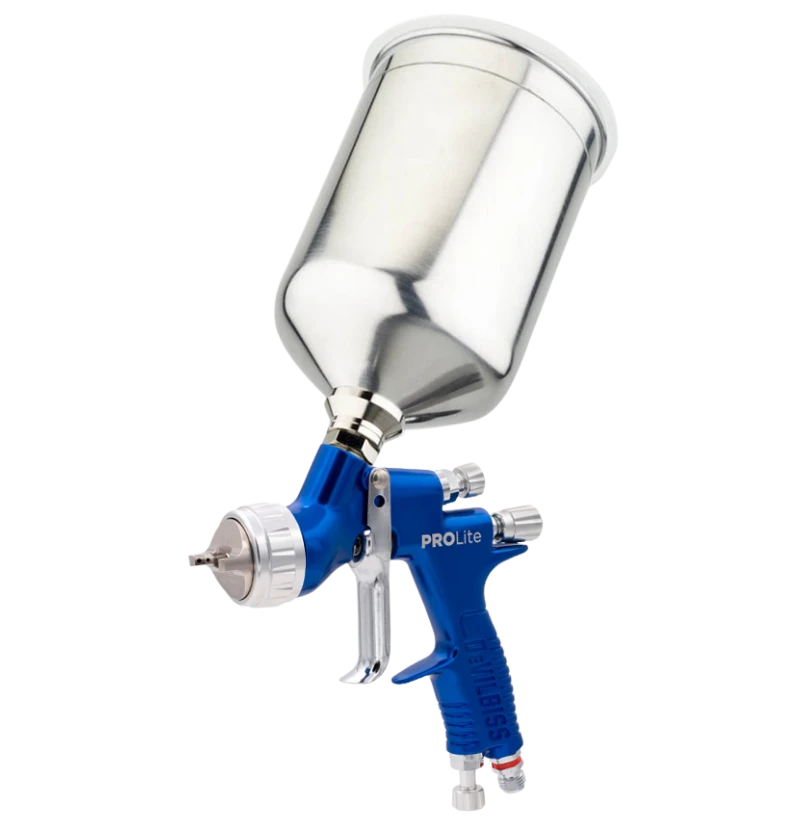

 DeVilbiss PROLite Gravity Spray Gun with 900mL Aluminum Cup

With 900mL Cup

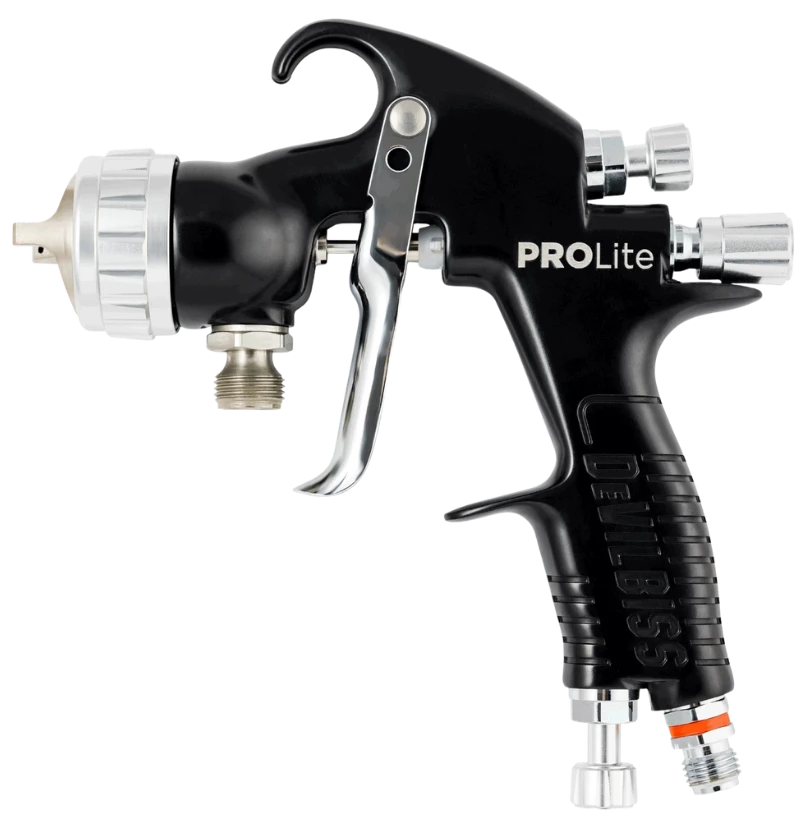

 DeVilbiss PROLite Pressure Feed Spray Gun - Black Body

Pressure Feed

445g

Gun Weight

5

Air Cap Options

1.1–1.5mm

Nozzle Range

HVLP & HE

Atomization Types

HAV-555

Digital Gauge

Features & Benefits

▶Lightweight design with uniform spray pattern and atomization distribution
▶Advanced air cap technologies for waterborne and solventborne coatings
▶Ergonomic handle with reduced trigger travel to decrease operator fatigue
▶High transfer efficiency for significant paint savings and compliance
▶Drop-forged aluminum body with removable air baffle for easy maintenance

Applications

▶Automotive basecoat application
▶Automotive clearcoat application
▶Waterborne refinish coatings
▶Solventborne refinish coatings
▶Low VOC, high solids, pearl & metallic materials

Select a kit below to match your air cap, nozzle, and cup configuration — or call/text 586-210-0555 for help choosing.

Devilbiss Prolite

(Showing 10 of 10)

Gun Specifications

Weight (gun only) 445g
Gun Body Anodized Aluminum (Drop-Forged)
Air Cap Nickel-Plated Brass
Air Cap Retaining Ring & Knobs Clear Anodized Aluminum
Fluid Nozzle Stainless Steel
Fluid Needle Stainless Steel
Air Inlet Thread 1/4" Universal
Service Bulletin SB-E-2-996

Air Cap Comparison

All air caps fit basecoat and clearcoat applications. Choose based on your preferred atomization type and air consumption requirements.

Air Cap Type Inlet PSI Inlet BAR SCFM SLPM Fan (in) Fan (mm) Nozzles
TE10 High Efficiency 20–35 1.4–2.4 10.9 310 11.0–12.0 285–300 1.1–1.5mm
TE20 High Efficiency 16–26 1.1–1.8 12.0 340 11.0–11.5 275–290 1.1–1.5mm
TE25 High Efficiency 22–29 1.5–2.0 12.4 350 10.5–11.0 270–285 1.1–1.5mm
T110 High Efficiency 22–29 1.5–2.0 9.4 265 11.0–12.0 285–300 1.1–1.5mm
HV30 HVLP 14–25 1.0–1.75 15.5 440 11.5–12.5 290–315 1.1–1.5mm

Kit Configurations

Each kit includes the PROLite gravity gun body, specified air cap(s), nozzle set(s), fluid needle, and HAV-555 digital gauge. Cup included where noted.

Part # Description Air Cap(s) Nozzle Sizes Cup
905038 PROLite Gravity HVLP Gun Kit HV30 1.2mm, 1.3mm —

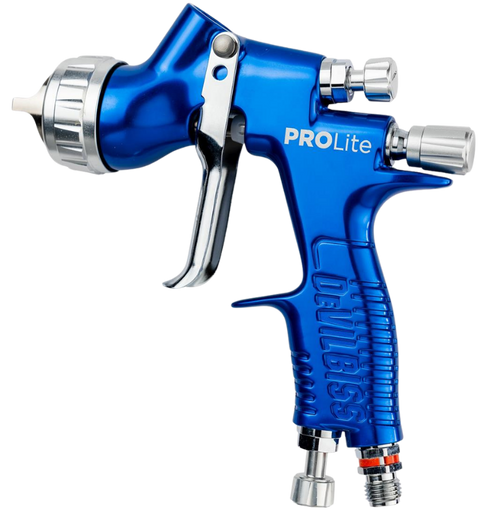

905039 PROLite Gravity HVLP Gun Kit HV30 1.3mm, 1.4mm —

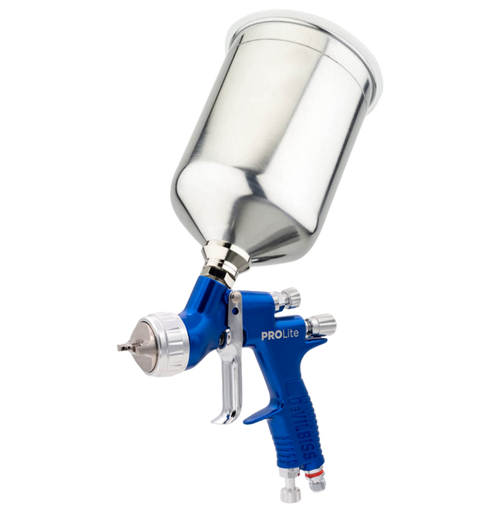

905040 PROLite Gravity HVLP Gun Kit HV30 1.2mm, 1.3mm 900mL Aluminum
905041 PROLite Gravity HVLP Gun Kit HV30 1.3mm, 1.4mm 900mL Aluminum
905042 PROLite Gravity HVLP & High Efficiency Gun Kit TE20 & HV30 1.3mm, 1.4mm, 1.5mm —

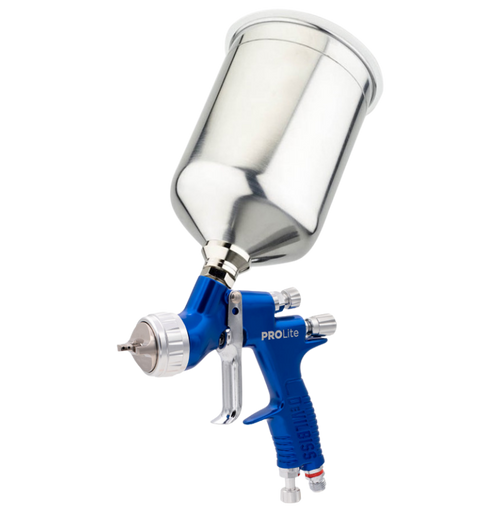

905043 PROLite Gravity High Efficiency Gun Kit TE10 & TE20 1.2mm, 1.3mm, 1.4mm 900mL Aluminum
905044 PROLite Gravity High Efficiency Gun Kit TE10 & TE20 1.2mm, 1.3mm, 1.4mm —
905045 PROLite Gravity High Efficiency & HVLP Gun Kit TE25 & HV30 1.2mm, 1.3mm, 1.4mm —

Replacement Parts & Accessories

Air Cap Assemblies

905240TE10 Air Cap Assembly w/ Retaining Ring
905241TE20 Air Cap Assembly w/ Retaining Ring
905242TE25 Air Cap Assembly w/ Retaining Ring
905245T110 Air Cap Assembly w/ Retaining Ring
905238HV30 Air Cap Assembly w/ Retaining Ring

Fluid Nozzles

9052461.1mm Fluid Nozzle
9052471.2mm Fluid Nozzle
9052481.3mm Fluid Nozzle
9052491.4mm Fluid Nozzle
9052501.5mm Fluid Nozzle

Service & Repair

905266PROLite Gravity Fluid Needle
905281Spray Gun Service/Repair Kit
905206Seal & Pin Kit
905296Gun Wrench, Torx & Flat Back Screwdriver, Cleaning Brush & Color ID Rings

Accessories

704307DGI Pro Gauge for Spreader Valve Assembly (PSI readout)
803291HAV-555 Air Inlet Adjustment Valve w/ Digital Readout
180006HAV-501 Air Inlet Adjustment Valve w/ Analog Readout
905204Acetal Gravity Cup — 560mL
702576Aluminum Gravity Cup — 900mL
802200DPC-43 DeKups® Adaptor
803750SNF-43 SNAP N FLOW™ Adaptor

Frequently Asked Questions

What is the difference between HVLP and High Efficiency air caps?

The HV30 is a true HVLP (High Volume Low Pressure) air cap that operates at lower inlet pressures (14–25 PSI) but consumes more air (15.5 SCFM). The TE-series High Efficiency air caps operate at slightly higher pressures but use less compressed air while still meeting transfer efficiency requirements. High Efficiency caps are ideal for shops with limited compressor capacity.

Which kit should I choose for waterborne basecoats?

For waterborne basecoats, the High Efficiency kits with TE10 or TE20 air caps (905043, 905044) are the most popular choice. The TE20 runs at the lowest inlet pressure of the HE caps (16–26 PSI) and produces excellent metallic laydown. For shops that also spray solventborne clearcoats, the combo kit 905045 (TE25 + HV30) gives you both technologies in one package.

What nozzle size should I use?

For basecoats, 1.2mm or 1.3mm nozzles are standard. For clearcoats and heavier-bodied materials, step up to 1.3mm or 1.4mm. The 1.5mm nozzle is typically reserved for high-build primers or very viscous materials. All PROLite gravity kits include multiple nozzle sizes so you can dial in based on your specific material.

What is the HAV-555 gauge included with every kit?

The HAV-555 is a digital air inlet adjustment valve that mounts at the gun's air inlet. It provides a precise PSI readout so you can set and repeat your inlet pressure accurately. This is critical for consistent color matching and pattern quality, especially with metallic and pearl coatings.

Does CET stock PROLite parts and accessories?

Yes. CET is a factory-authorized DeVilbiss distributor and stocks PROLite gun kits, individual air caps, fluid nozzles, needles, repair kits, and accessories. Most in-stock orders ship same day. Call or text 586-210-0555 for availability and pricing.
