DeVilbiss DV1s Smart/Spot Repair Spray Gun

(Showing 34 of 34)



DeVilbiss · Automotive Refinishing · Authorized Distributor

DeVilbiss DV1s Smart/Spot Repair
Three Kit Configurations · Micro to Standard Repair · Invisible Results

Micro (2.4”) · Standard S1+ (7.9”) · Standard S2 (7.1”) · 125ml Acetal Cup Included · Solvent & Waterborne · Automotive Refinishing

Micro · S1+ · S2 2.4” to 7.9” Pattern Cup Included 3 Kits Available

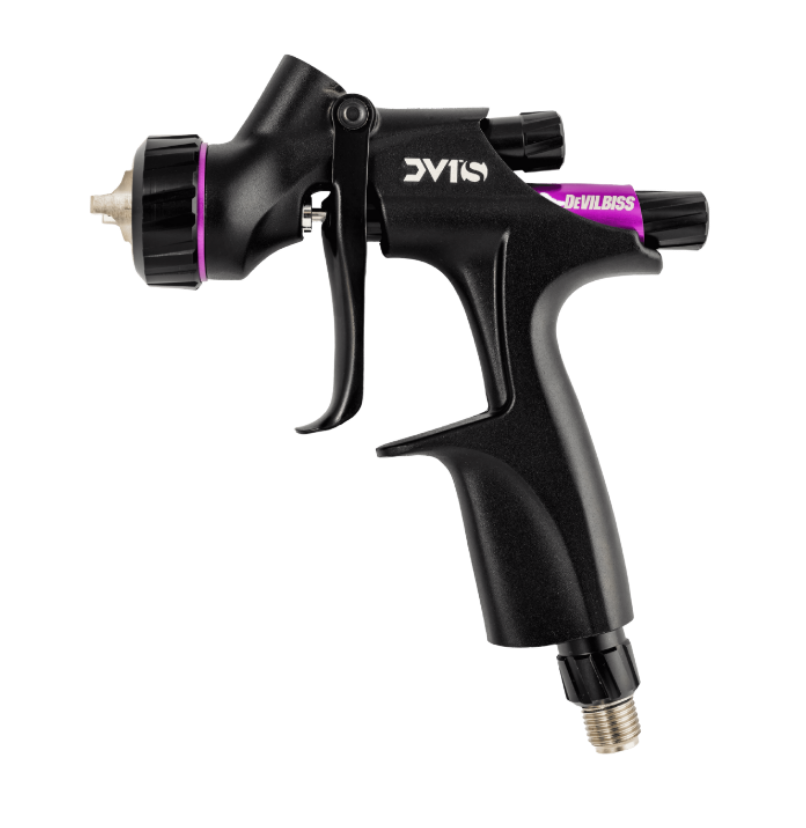

 DeVilbiss DV1s Smart/Spot Repair Spray Gun
Not sure which DV1s kit is right for your repair applications?   CET’s technical team will confirm the right configuration before you order. 586-210-0555 sales@cetinc.com

The DV1s Platform

Refine the Finish.
Invisible Repair Results.

The DeVilbiss DV1s Smart/Spot Repair brings DV1 atomization engineering to the spot repair workflow. The DV1s features three all-new air caps delivering superior high-efficiency performance for a perfect invisible repair finish — available in three kit configurations spanning micro spot work up to standard panel repairs.

The DV1s is a distinctly different gun platform from the DV1 Basecoat and DV1 Clearcoat. It uses its own specific spare parts, service kits, fluid tips, and needles. Two needle families are used across the DV1s lineup: the DV1-M Needle (704460) for Micro tips and the DV1-S Needle (704459) for S-series tips. All three kits include the 125ml acetal cup — sized for the small material volumes used in spot repair work.

An 0.8mm DV1-S tip (704456) is available separately and is compatible with the DV1-S1+ and DV1-S2 air caps. It is not included in any kit. All S-series spare parts and service kits are shared between the 704532 and 704533 kits.

Key Features

What Makes the DV1s
Different.

Three Dedicated Repair Air Caps The DV1-M1 Micro (2.4”), DV1-S1+ (7.9”), and DV1-S2 (7.1”) are engineered specifically for spot repair applications — delivering consistent, homogeneous spray patterns for flawless right-first-time results at each repair scale.
Fluid Tips Matched to Air Caps The DV1s fluid tip design matches optimum fluid flow while stabilizing air flow — minimizing material usage and providing significant paint savings on every repair. M-series tips for Micro; S-series tips for S1+ and S2.
125ml Acetal Cup — All Three Kits All three DV1s kits include the 125ml (4 oz) acetal cup sized for spot repair material volumes — minimizing waste and keeping the gun light and maneuverable during precision work.
S-Series Parts — Separate from B & C The DV1s uses its own specific spare parts platform. Service kits (704475 Minor, 704476 Major), air valve (704471), spray head (704462), and packing kit (905294) are all S-series specific. Do not use DV1-B or DV1-C parts on this gun.

Choose Your Configuration

DV1s Smart/Spot Repair Kit Comparison

Choose based on the repair area size and atomization style you prefer. All three kits include the 125ml acetal cup.

Kit 704531 — Micro

DV1s Micro

DV1-M1 Micro · 2.4” · 0.7 & 0.9mm

Air Cap DV1-M1 Micro (704451)
Pattern 2.4”
Air @ Handle 1.8 SCFM @ 15 PSI
Tips 0.7mm · 0.9mm
Needle DV1-M (704460)
Best For Stone chips, micro blemishes

Kit 704532 — S1+ Wider Pattern

DV1s S1+

DV1-S1+ Plus · 7.9” · 1.0 & 1.2mm

Air Cap DV1-S1+ Plus (704452)
Pattern 7.9”
Air @ Handle 4.1 SCFM @ 25 PSI
Tips 1.0mm · 1.2mm
Needle DV1-S (704459)
Best For Door panels, wider repair areas

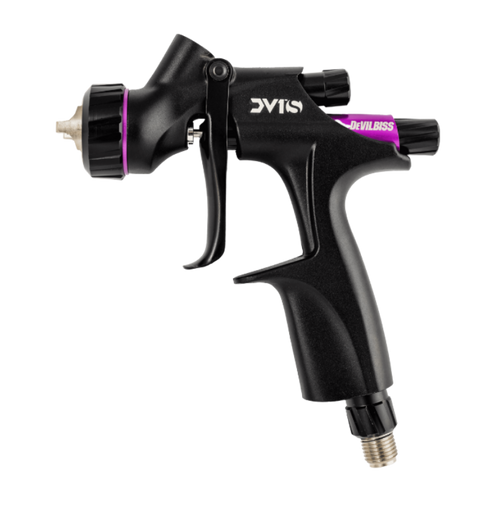

Kit 704533 — S2 Concentrated

DV1s S2

DV1-S2 HVLP · 7.1” · 1.0 & 1.2mm

Air Cap DV1-S2 HVLP (704453)
Pattern 7.1”
Air @ Handle 4.6 SCFM @ 25 PSI
Tips 1.0mm · 1.2mm
Needle DV1-S (704459)
Best For Edges, contours, concentrated work

Which DV1s Kit Is Right for You?

Choose 704531 (Micro) if…

You specialize in stone chip repairs, micro blemishes, and small touch-up work where maximum precision and overspray control are critical. The 2.4” pattern and 0.7/0.9mm tips are purpose-built for the smallest repair applications.

Choose 704532 (S1+) if…

You do spot repairs on door panels, quarter panels, and medium repair areas where 7.9” fan coverage per pass is more efficient. The S1+ is the widest standard repair pattern in the DV1s lineup at 4.1 SCFM.

Choose 704533 (S2) if…

You prefer a more concentrated, higher air volume atomization for spot repair — particularly for contoured surfaces, door jambs, and repairs where a denser fan gives you better blending control. Same tips as 704532, different cap.

Many professional shops stock all three configurations. Individual air caps are also available separately for swapping between S1+ and S2 on the same gun body. Call or text 586-210-0555 to discuss the right setup for your shop.

Air Caps

All Three DV1s Air Caps

CapSCFM / PSIPatternIn Kit
DV1-M1 Micro (704451) 1.8 @ 15 PSI 2.4” 704531
DV1-S1+ Plus (704452) 4.1 @ 25 PSI 7.9” 704532
DV1-S2 HVLP (704453) 4.6 @ 25 PSI 7.1” 704533

All three caps available individually for replacement or swapping.

Fluid Tips & Needles

DV1s Tip & Needle Reference

TipOrder No.NeedleIn Kit
0.7mm M 704454 DV1-M (704460) 704531
0.9mm M 704455 DV1-M (704460) 704531
0.8mm S 704456 DV1-S (704459) Individual only
1.0mm S 704457 DV1-S (704459) 704532 & 704533
1.2mm S 704458 DV1-S (704459) 704532 & 704533

Critical: Two separate needle families

M-series tips (0.7, 0.9mm) require the DV1-M Needle (704460). S-series tips (0.8, 1.0, 1.2mm) require the DV1-S Needle (704459). They are not interchangeable. Always confirm the correct needle when ordering replacements.

Spare Parts & Service

DV1s Smart/Spot Repair Spare Parts

Complete DV1s Smart/Spot Repair spare parts list. All part numbers verified from the DV1 S Breakdown.

Important: All S-series parts are specific to the DV1s platform. Do not use DV1-B or DV1-C components on this gun.

Service Sets

Part No.DescriptionContents
704475 Minor Service Kit Includes parts 23, 25, 35, 49, 51, 53 — Front cage assembly, air valve spring, needle spring kit, spreader valve pin, O-rings
704476 Major Service Kit Includes parts 10, 12, 17, 28, 35, 49, 51, 53 — Screw kit, gasket kit, packing/spring/nut kit, air valve assembly, needle spring kit, spreader valve pin, O-rings

Air Caps, Fluid Tips & Needles

Part No.Description
704451 DV1-M1 HVLP Micro Air Cap — 2.4” pattern, 1.8 SCFM @ 15 PSI handle — Kit 704531
704452 DV1-S1+ HVLP Plus Air Cap — 7.9” pattern, 4.1 SCFM @ 25 PSI handle — Kit 704532
704453 DV1-S2 HVLP Air Cap — 7.1” pattern, 4.6 SCFM @ 25 PSI handle — Kit 704533
704454 0.7mm DV1-0.7M Fluid Nozzle — use with DV1-M Needle (704460) — Kit 704531
704455 0.9mm DV1-0.9M Fluid Nozzle — use with DV1-M Needle (704460) — Kit 704531
704456 0.8mm DV1-0.8S Fluid Nozzle — use with DV1-S Needle (704459) — individual only, not in any kit
704457 1.0mm DV1-1.0S Fluid Nozzle — use with DV1-S Needle (704459) — Kits 704532 & 704533
704458 1.2mm DV1-1.2S Fluid Nozzle — use with DV1-S Needle (704459) — Kits 704532 & 704533
704459 DV1-S Needle — for 0.8, 1.0 & 1.2mm S-series tips
704460 DV1-M Needle — for 0.7 & 0.9mm M-series Micro tips only

Cups & Accessories

Part No.Description
905202 Drip Check Lid (Kit of 5)
905308 Gravity Cup Lid (Kit of 2)
905309 Filter (Kit of 3)
905311 Gravity Cup Kit
905312 Funnel (Kit of 12)

Exploded View — Item Numbers Reference the Parts Table Below

DeVilbiss DV1s Smart/Spot Repair Spray Gun Exploded View — Spare Parts Breakdown

Individual Spare Parts

ItemPart No.Description
4 704472 Retaining Ring Sub Assembly
6 704480 Spring Clip (Kit of 5)
9 704464 Deflector Plate
10 704403 Screw Kit of 3
12 704463 Gasket Kit of 2
13 704462 Spray Head Kit
17 905294 Packing, Spring and Packing Nut Kit
23 704469 Front Cage Assembly
27 704470 Rear Seal Assembly
28 704471 Air Valve Assembly
31 704473 Sleeve Kit
35 704405 Needle Spring Kit
36 704465 Fluid Adjusting Knob
41 704417 Inline Flow Valve
47 704466 Trigger, Stud, Spring and Screw Kit
55 704468 Spreader Knob Kit — Not for use with Digital Gauge
56 704467 Spreader Valve Assembly
60 704474 Tool Kit — Valve tool, Torx driver & tip wrench

DeVilbiss DV1s Smart/Spot Repair — Manual & Parts Breakdown

Full exploded diagram, all S-series part numbers, pressure settings & service instructions. CET includes documentation with every order.

 ↓ Download Manual View Parts Breakdown →

CET is an authorized DeVilbiss distributor. Need help choosing between the Micro, S1+, and S2 kits, or confirming the right tip size for your repair material? Call or text 586-210-0555  ·  sales@cetinc.com  ·  Based on over 20 years of finishing equipment experience.
