DeVilbiss DV1 Clearcoat Spray Gun

(Showing 29 of 29)



DeVilbiss · Automotive Refinishing · Authorized Distributor

DeVilbiss DV1 Clearcoat
Next-Generation HVLP Clearcoat Spray Gun · Mirror-Like Finish

Both C1+ & C2+ Air Caps Included · Digital DGI PRO Gauge · Superior DOI · Higher Speed at Lower Pressure · Automotive Refinishing

HVLP Gravity Feed Two Caps Included Digital Gauge Included Kit 704521

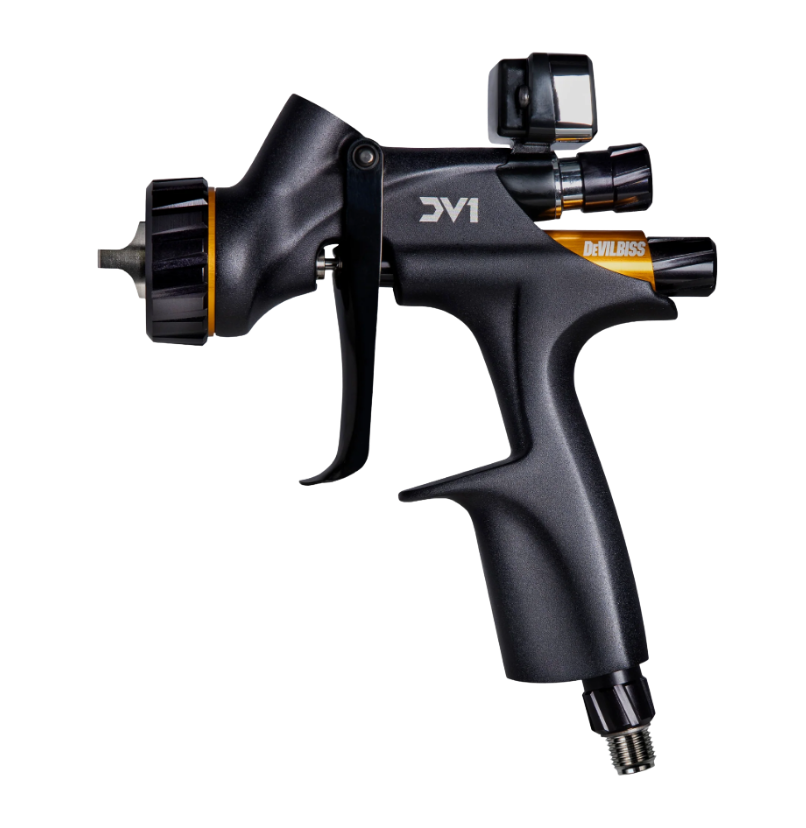

 DeVilbiss DV1 Clearcoat Spray Gun
Questions about tip size or cap selection for your clearcoat system?   CET’s technical team will confirm the right setup before you order. 586-210-0555 sales@cetinc.com

The DV1 Clearcoat Platform

Reflect Perfection.
Every Panel. Every Job.

The DeVilbiss DV1 Clearcoat introduces a step change in atomization by optimizing air velocity while maximizing fluid flow simultaneously — producing an even distribution of fine, uniformly sized particles that wet up a surface easily and hang flawlessly on vertical panels. Sprayers will instantly see an improved Distinctness of Image (DOI) and an overall brilliance in the reflective, mirror-like clearcoat finish.

Higher application speeds at lower pressures enhance overall productivity and efficiency. The DV1 Clearcoat is available in a single kit configuration — Kit 704521 — which uniquely includes both the DV1-C1+ and DV1-C2+ HVLP Plus air caps, three fluid tips (1.2, 1.3, and 1.4mm), the Digital DGI PRO Air Gauge, and DPC Adapter. It is the only DV1 kit that ships with two air caps.

Both C-series caps are also available individually for replacement or to add to an existing setup. The full DV1-C fluid tip range from 1.0mm to 1.4mm is available separately. DV1-C tips are not interchangeable with DV1-B basecoat tips.

Key Features

What Makes the DV1
Clearcoat Different.

Two Air Caps in One Kit Kit 704521 is the only DV1 kit that ships with two air caps — the DV1-C1+ (12.8”) and DV1-C2+ (12.2”). Try both with your specific clearcoat system and keep the one that delivers the finish quality you prefer. Both caps are also available individually.
Superior DOI & Mirror Finish Optimized air velocity and maximized fluid flow produce uniformly fine particles that wet vertical panels completely — delivering visibly improved Distinctness of Image and the reflective clarity that separates professional-grade clearcoat results.
Higher Speed at Lower Pressure The DV1 Clearcoat’s design enables higher application speeds at lower inlet pressures — improving throughput per booth cycle without sacrificing finish quality or requiring pressure adjustments between panels.
Digital Gauge for Exact Pressure Control The same Digital DGI PRO gauge as the DV1 Basecoat — eye-level inlet pressure readings for consistent results across every vehicle, every technician, and every booth session.

Kit Configuration

Kit 704521 — Everything You Need

The DV1 Clearcoat is available in one kit configuration that includes both air caps, three fluid tips, digital gauge, and DPC adapter — a complete professional clearcoat setup out of the box.

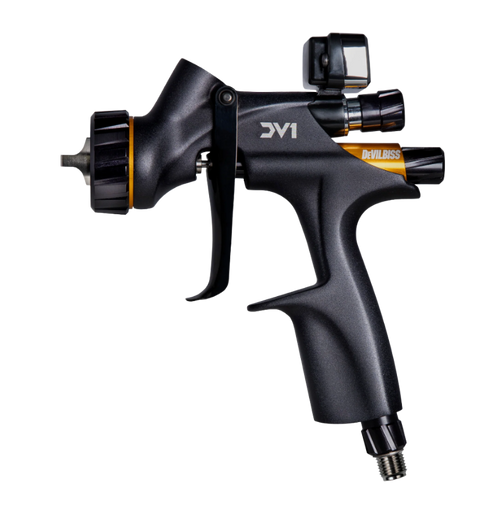

Kit 704521

DV1 Clearcoat

Both DV1-C1+ & DV1-C2+ HVLP Plus caps · 1.2, 1.3 & 1.4mm tips · Digital gauge · DPC adapter

Air Caps (Both Included) DV1-C1+ (704434) · DV1-C2+ (704435)
C1+ Pattern / Air 12.8” · 10.0 SCFM @ 22 PSI digital
C2+ Pattern / Air 12.2” · 11.3 SCFM @ 22 PSI digital
Tips Included 1.2mm · 1.3mm · 1.4mm
Needle DV1-300 (704416) — shared across all C tips
Gauge Digital DGI PRO (704427) — FM Approved
Material Solvent & waterborne clearcoats

C1+ vs C2+ — Quick Guide

DV1-C1+ HVLP Plus (704434)

12.8” · 10.0 SCFM @ 22 PSI
Wider fan — maximum panel coverage per pass — most painters start here

DV1-C2+ HVLP Plus (704435)

12.2” · 11.3 SCFM @ 22 PSI
Tighter fan, more air energy — preferred for higher-viscosity UHS clearcoats

Both caps are included in Kit 704521. Try both and keep your preferred setup. Also available individually for replacement.

Fluid Tips

DV1-C Fluid Tips — Full Range

DV1-C tips are engineered for clearcoat viscosities and are not interchangeable with DV1-B basecoat tips. All share the DV1-300 Needle (704416). Tips in bold are included in Kit 704521.

Important: Always confirm you are ordering DV1-C tips for the Clearcoat gun — they are different from DV1-B basecoat tips.

Tip SizeOrder No.ApplicationIncluded In
1.0mm 704440 Low-viscosity & thin clearcoats, detail & touch-up Individual only
1.1mm 704441 Standard MS clearcoats at typical reduction ratios Individual only
1.2mm 704442 Most popular — HS & UHS clearcoats, most brands Kit 704521
1.3mm 704443 UHS & high-viscosity clearcoats, increased flow Kit 704521
1.4mm 704444 Maximum viscosity clearcoats, heavy coverage Kit 704521

Spare Parts & Service

DV1 Clearcoat Spare Parts

Complete DV1 Clearcoat spare parts list. All part numbers verified from the DV1 C Breakdown.

Important: The Spray Head Kit (704436) and Sleeve Kit (704437) are C-series specific. Do not use DV1-B service parts on this gun.

Service Sets

Part No.DescriptionContents
704430 Minor Service Kit Includes parts 23, 25, 35, 51, 53 — Front cage assembly, air valve spring, needle spring kit, O-rings
704431 Major Service Kit Includes parts 10, 12, 17, 28, 35, 49, 51, 53 — Screw kit, gasket kit, packing/spring/nut kit, air valve assembly, needle spring kit, spreader valve pin, O-rings

Air Caps, Fluid Tips & Needles

Part No.Description
704434 DV1-C1+ HVLP Plus Air Cap — 12.8” pattern, 10.0 SCFM @ 22 PSI digital
704435 DV1-C2+ HVLP Plus Air Cap — 12.2” pattern, 11.3 SCFM @ 22 PSI digital
704440 DV1-1.0 C, 1.0mm Fluid Tip
704441 DV1-1.1 C, 1.1mm Fluid Tip
704442 DV1-1.2 C, 1.2mm Fluid Tip
704443 DV1-1.3 C, 1.3mm Fluid Tip
704444 DV1-1.4 C, 1.4mm Fluid Tip
704416 DV1-300 Needle — shared across all DV1-C fluid tips

Exploded View — Item Numbers Reference the Parts Table Below

DeVilbiss DV1 Clearcoat Spray Gun Exploded View — Spare Parts Breakdown

Individual Spare Parts

ItemPart No.Description
4 704425 Retaining Ring Sub Assembly
9 704402 Deflector Plate
10 704403 Screw Kit of 3
12 704401 Gasket Kit of 2
13 704436 Spray Head Kit — C-series specific (gold)
17 702731 Packing, Spring and Packing Nut Kit
23 704422 Front Cage Assembly
27 704423 Rear Seal Assembly
28 704424 Air Valve Assembly
31 704437 Sleeve Kit — C-series specific
35 704405 Needle Spring Kit
36 704404 Fluid Adjusting Knob
41 704417 Inline Flow Valve
47 704406 Trigger, Stud, Spring and Screw Kit
56 704418 Spreader Valve Assembly
55 704419 Spreader Knob Kit — Not for use with Digital Gauge
60 704429 Tool Kit — Valve tool, Torx driver & tip wrench

DeVilbiss DV1 Clearcoat — Manual & Parts Breakdown

Full exploded diagram, all part numbers, pressure settings & service instructions. CET includes documentation with every order.

 ↓ Download Manual View Parts Breakdown →

CET is an authorized DeVilbiss distributor. Need help selecting the right tip size for your clearcoat brand, confirming C1+ vs C2+ for your application, or sourcing a spare part? Call or text 586-210-0555  ·  sales@cetinc.com  ·  Based on over 20 years of finishing equipment experience.
