AG-362 Spare Parts and Manual

(Showing 48 of 55)

DOWNLOAD DEVILBISS AG 362 MANUAL HERE


AG 362 Breakdown

 Item No.  Part No.   Description
 1  NA  Air Cap & Retaining Ring
 2   PRO-405-K  Retaining Ring Sub Assembly
 3   JGA-156-K5  Spring Clip (Kit of 5)
 4   NA  Fluid Tip
 5   SN-69-K  Sprayhead & Pin Assy
 6   SN-18-1-K2  Gasket (Kit of 2)
 7

 SPA-152-K

 SPA-152U-K

 Head

 Recirculation Head

 8   SPA-29X-K4  O-Ring (Kit of 4)
 9   SPA-159-K  Needle Packing
 10   SPA-153-K  Body
 11   SPA-52  Air Tube
 12   S-28223X-K4  O-Ring (Kit of 4)
 13   S-14192-K4  Torx Screw (Kit of 4)
 14   S-28220X-K2  O-Ring (Kit of 2)
 15   SPA-60X-K  Piston & Seal Kit
 16   S-28224X-K4  O-Ring (Kit of 4)
 17   SPA-62-K2  Air Valve Piston (Kit of 2)
 18   S-28225X-K2  O-Ring (Kit of 2)
 19   S-28219X-K4  O-Ring (Kit of 4)
 20   SPA-13  Piston Spring
 21   SPA-415-K  Rear Housing Assembly
 22   SPA-KK-1  Ring and Ball Kit
 23   NA  Fluid Needle
 24   SPA-421-K   Needle Spring Kit
 25   SPA-422-K2  Spring Collar (Kit of 2)
 26   SPA-31  Needle Spring
 27   SPA-165-K2  Spring Button (Kit of 2)
 28   SPA-166-K  Adjusting Knob
 29   SPA-160-K  Locking Pin (AG-362)
 30

 SPA-418-K

 SPA-418P-K

 Lever Manifold Assembly

 Lever Manifold Assembly Plugged

 31   NA  Manifold
 32   SPA-424-K  Locking Cam

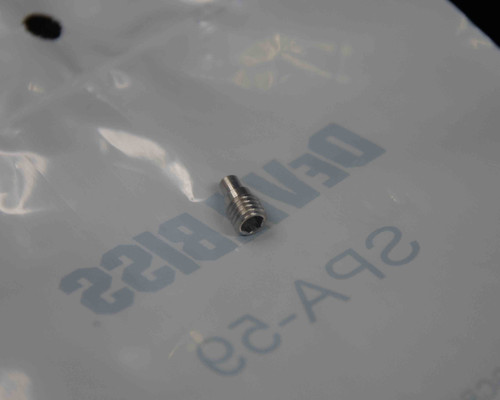

 33   SPA-59  Retaining Screw
 34   SPA-414-K  Control Valve
 35   S-14193  Hexagon Socket Set Screw
 36

 SPA-419-K

 SPA-419U-K

 SPA-419P-K

 SPA-419UP-K

 Screw Manifold Assembly

 Recirculation Screw Manifold Assembly

 Screw Manifold Assembly Plugged

 Recirculation Screw Manifold Assembly Plugged

 37   NA  Manifold
 38   SPA-161-K2  Clamping Screw (Kit of 2)
 39   NA  O-Ring (Part of SPA-161-K2)
 40   SPA-167-K  Fixed Rear Housing
 41   SPA-417-K  Micrometer Assembly
 42   SPA-111-K2  Blanking Plug

 Accessories

 Part No.  Description
 SPA-417-K  Micrometer needle adjustment assembly.
 SPA-167-K   Fixed needle position end cap.
 SPA-426-K   Ratchet needle adjustment assembly.
 SPA-414-K   Control Valve
 SPA-111-K2   Atomisation & fan blanking plugs, replaces items (34) see exploded view.
 SPA-423-K   Atomisation & fan low profile control valve, replaces item (34) see exploded view.
 AGGS-33   Mounting bar.
 SS-659-CD   Mounting bar nut.
 SPA-173-K   Horizontal mounting bar and screws.
 SPA-174-K  Vertical mounting bar and screws.
 SPA-175-K   Mounting block and screws.
 SPA-176-K   Index adjustment and screws.
