CA Tech Tomcat T100C Spare Parts


Spare Parts

 Item No.  Part No.  Description
 1  See Air Cap Chart  Air Cap
 2  See Air Cap Chart  Fluid Tip
 3  60-15C  Fluid Nozzle Body

 4

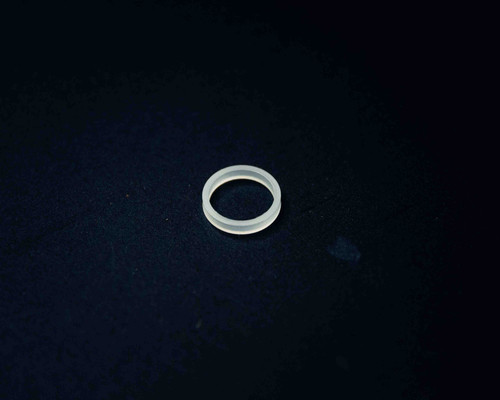

  60-137  Seal
 5  60-1106  Tomcat Gun Body Conventional
 6  See Air Cap Chart  Fan Control Assembly
 7  60-119  Seal
 8  60-201  Rear Bushing
 9  See Air Cap Chart  Fluid Needle
 10  60-204  Needle Return Spring
 11  60-205  Spring Seat
 12  60-202  Fluid Control Knob
 13  60-104  Air Inlet Fitting
 14  60-122  Plug
 15  61-1003  Air Valve Spring
 16  60-125  Seal
 17  60-302  Air Valve Poppet
 18  60-1520  Air Valve Assembly
 19  60-132  Fluid Inlet
 20  60-128  Locknut
 21  61-1026  Needle Seal
 22  60-2101  Trigger
 23  60-1033  Trigger Pivot Set

Air Caps, Nozzles and Needles

 Material Type  Fluid Orifice x Air   Cap  Maximum   Pattern Width  Pressure/Siphon

 Very Thin

 less than 16 sec. Zahn #2

 inks , dyes, solvents, stains

 0.6, 0.7mm x   2163

 0.6, 0.7mm x   2166

 0.6, 0.7mm x   2266

 8

 9

 12

 P

 S

 S

 Thin

 16 to 20 sec. Zahn #2

 lacquers, enamels, primers, sealers

 0.6, 0.7, 1.0mm   x 2163

 0.6, 0.7, 1.0mm   x 2366

 0.6, 0.7, 1.0mm   x 2466

8

 14

 13

 P

 S

 S

 Medium

 21 to 30 sec. Zahn #2

 automotive base coat enamels, primers epoxies,   urethanes, automotive clear coat

 1.2, 1.3, 1.5,   1.8mm x 2263

 1.2, 1.3, 1.5,   1.8mm x 2266

 1.2, 1.3, 1.5,   1.8mm x 2266-3

 1.2, 1.3, 1.5,   1.8mm x 2466

 14

 10

 15

 13

 P

 S

 S

 S

 Heavy

 over 30 sec. Zahn #2

 heavy body primers, high solid enamels, high   solid automotive coatings, adhesives

 1.5, 1.8mm x   2466

 2.2mm x 2167

 2.2mm x 2267

 2.8mm x 2168

 13

 12

 15

 12

 S

 P

 P

 P
 Model  Pressure/Siphon  Air Cap  Fluid Tip Range  Fan Control   SCFM  Air Cap Ring
 T100C  Siphon  21-2166  0.6-1.8  60-1505  5  Included
 T100C  Siphon  21-2266  0.6-1.8  60-1505  12  Included
 T100C  Siphon  21-2266T  0.6-1.8  60-1505  12  Included
 T100C  Siphon  21-2366  0.6-1.8  60-1505  12  Included
 T100C  Siphon

 21-2466

  0.6-1.8  60-1505  15  Included
 T100C  Siphon  21-2467  2.2  60-1505  15  Included
 T100C  Siphon  21-2268  2.8  60-1505  15  Included
 T100C  Pressure  21-2163  0.6-1.8  60-1505  8  Included
 T100C  Pressure  21-2263  0.6-1.8  60-1505  14  Included
 T100C  Pressure  21-2266-3  0.6-1.8  60-1505  16.2  Included
 T100C  Pressure  21-2266-3T  0.6-1.8  60-1505  16.2  Included
 T100C  Pressure  21-2167 2.2  60-1505  14.5  Included
 T100C  Pressure  21-2267  2.2  60-1505  15  Included
 T100C  Pressure  21-2168  2.8  60-1505  14  Included
 T100C  Pressure  21-2766B  1.0-1.8  60-1505  8  Included
 T100C  Internal Mix  21-200**  1.5-1.8  60-1505  5.2  Included
 T100C  Internal Mix  21-2201**  2.2  60-1505  5.2  Included
 Available Fluid Nozzle  Needles / Marking on Needle
 17-4PH Stainless  300 Stainless
 31-0606 0.6mm (.022")  40-1107 (107)
 31-0607 0.7mm (.028")  40-1107 (107)
 31-0610 1.0mm (.040")  40-1110 (110)
 31-0612 1.2mm (.046")  40-1110 (110)
 31-0613 1.3mm (.052")  40-1110 (110)
 31-0615 1.5mm (.059")  40-1115 (115)
 31-0618 1.8mm (.070")  40-1115 (115)
 31-0622 2.2mm (.086")  40-1122 (122)
 31-0628 2.8mm (.110")  40-1128 (128)
 Carbide  Carbide
 31-0618V 1.8mm (.070")  40-6201
 31-0622V 2.2mm (.086")  40-6201
 31-0628V 2.8mm (.110")  40-6201
