Lynx L300H Spare Parts & Breakdown

(Showing 48 of 59)

Download Manual

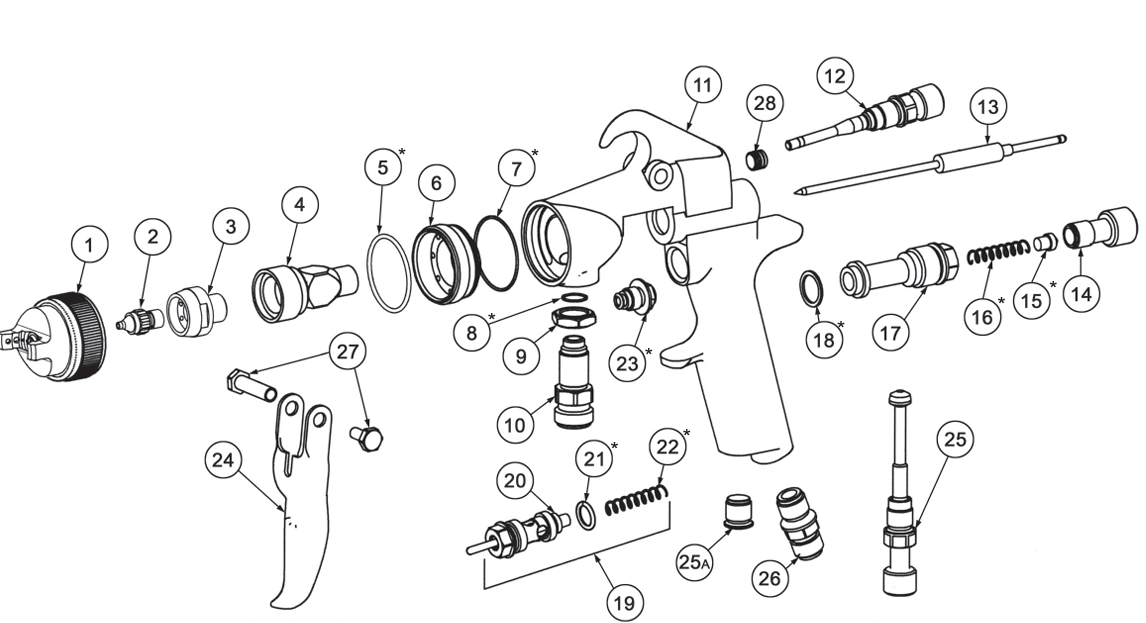

Item No. Part No. Description
1 - Air Cap
2 - Fluid Nozzle Tip
3 33-1201 Fluid Nozzle Body
4 60-L31H Nozzle Carrier
5 98-8026 O-Ring
6 60-34H Air Cap Adapter
7 60-131 O-Ring
8 60-124 Fluid Inlet Seal
9 60-128 Locknut
10 60-126 Fluid Inlet Fitting
11 60-1114 Lynx Gun Body HVLP
12 - Fan Control Assy.
13 - Fluid Needle
14 60-202 Fluid Control Knob
15 60-205 Spring Seat
16 60-204 Needle Return Spring
17 60-201 Rear Bushing
18 60-119 Seal
19 60-1520 Air Valve Assy.
20 60-302 Air Valve Poppet
21 60-125 O-Ring
22 61-1003 Air Valve Spring
23 60-1400 Needle Seal Cartridge
24 60-2101 Trigger
25 60-1510 Air Control
25A 60-122 Plug (Optional)
26 60-104 Air Inlet Fitting
27 60-1033 Trigger Pivot Set
28 98-0109 Allen Plug
5, 7, 8, 15, 16, 18, 21, 22, 23 10-106 Repair Kit

HVLP Air Cap and Fluid Nozzle Chart

Air Caps Press/ Siphon Max Gun Inlet Press. for HVLP Fan Control SCFM @ Max Gun Inlet Air Cap Ring
23-1008 P 40** 60-1502 (#2) 13.5 Included
23-1010 P 40** 60-1502 (#2) 13.5 Included
23-1012 P 40** 60-1502 (#2) 13.5 Included
23-1013 P 40** 60-1502 (#2) 13.5 Included
23-1014 P 40** 60-1502 (#2) 13.5 Included
23-1015 P 40** 60-1502 (#2) 13.5 Included
23-1017 P 40** 60-1502 (#2) 13.5 Included
23-1019 P 40** 60-1502 (#2) 13.5 Included
23-1022 P 40** 60-1502 (#2) 13.5 Included
Fluid Nozzle Tips Needle/ Marking
33-0208 0.8mm (.022") 40-1308 (308)
33-0210 1.0mm (.040") 40-1310 (310)
33-0212 1.2mm (.046") 40-1312 (312)
33-0213 1.3mm (.052") 40-1313 (313)
33-0214 1.4mm (.055") 40-1314 (314)
33-0215 1.5mm (.059") 40-1315 (315)
33-0217 1.7mm (.070") 40-1317 (317)
33-0219 1.9mm (.075") 40-1319 (319)
33-0222 2.2mm (.086") 40-1322 (322)

Actual fluid nozzle and air cap combinations are determined by application   (see application chart page 4)

*Note: Air cap test gages are available to confirm HVLP compliance.

*Gun inlet pressures may vary as required by application

**When using optional gun regulator, inlet pressure changes to 45psi
