C.A. Technologies FE-Line Fine Finish HVLP Spray Gun — 1.2mm Setup (FEFF-12-1312)
Finish Excellence Line | Lightweight Fine Finish HVLP | US Made
The FE-Line Fine Finish (FEFF) is C.A. Technologies' lightweight ergonomic HVLP pressure feed spray gun, designed around the technology of the CAT SLP. The 1.2mm setup (FEFF-12-1312) pairs the 23-1312 air cap with the 33-0212 fluid tip and 40-1812 needle — the recommended configuration for thin materials including lacquers, enamels, primers, and sealers where a tighter orifice is preferred for controlled, fine-finish atomization at production speeds.
The FEFF's patented 12 Point Plenum design creates a more balanced, even cone of air as fluid is atomized — producing more uniform particles and a flatter, more consistent finish compared to conventional HVLP designs. Combined with all stainless steel fluid passages, a 15 oz. lightweight body, and 65% transfer efficiency or better, the FE-Line Fine Finish is built for operators who demand professional results with every pass.
Technical Specifications
| Setup | FEFF-12-1312 (1.2mm) |
| Air Cap | 23-1312 |
| Fluid Tip | 33-0212 — 1.2mm (.046") |
| Needle | 40-1812 |
| Air Consumption | 13.5 CFM @ 29 PSI |
| Max Gun Inlet Pressure | 29 PSI |
| Maximum Pattern Width | 12" |
| Weight | 15 oz. |
| Feed Type | Pressure Feed Only |
| Transfer Efficiency | 65% or better (HVLP compliant) |
| Fluid Passages | All Stainless Steel |
| Fan Control | 60-1317 |
| Origin | US Made |
| Repair Kit | 10-140 |
| HVLP Air Cap Test Gage | 23-1312-G |
| Recommended Applications | Thin — Lacquers, Enamels, Primers, Sealers |
Why the FE-Line Fine Finish?
Most HVLP guns rely on a standard air diffusion ring that creates uneven high and low pressure spikes around the fluid stream — resulting in inconsistent particle sizes and finishes. The FE-Line Fine Finish solves this with its patented 12 Point Balanced Plenum design, which distributes air evenly across all 12 points as the fluid is atomized. For thin materials like lacquers, enamels, and primers, this means more consistent coverage, better color uniformity, and a flatter finished surface with less rework.
- Optimized for thin materials — 1.2mm orifice delivers precise, even flow for lacquers, enamels, primers, and sealers
- Patented 12 Point Plenum Design — creates a more even cone of air for superior atomization uniformity vs. conventional HVLP guns
- Lightweight ergonomic body — weighs only 15 oz., reducing operator fatigue in production environments
- 65% transfer efficiency or better — meets HVLP compliance requirements at 29 PSI inlet
- All stainless steel fluid passages — compatible with lacquers, enamels, primers, sealers, and other thin coating chemistries
- US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)
Available Outfits & Configurations
The FE-Line Fine Finish is available in CAT Pack, 2 Quart outfit, and tank outfit configurations. CAT Packs include the gun, air caps, nozzle/needle sets, and tools in a carrying case.
| Configuration | Type | Description |
|---|---|---|
| CP-FEFF-303R2 | CAT Pack | FEFF gun, air caps, nozzle/needle sets, 1 QT aluminum pressure cup w/regulator, tools, carrying case |
| CP-FEFF-PPSR2 | CAT Pack — 3M™ PPS™ | FEFF gun, air caps, nozzle/needle sets, 950 mL 3M™ PPS™ pressure cup w/regulator, lids/liners, tools, case |
| FEFF-130 | 2 Quart Outfit (Economy) | Includes 5' hose assemblies |
| FEFF-600 | 2 Quart Outfit (Bandit) | Includes 5' hose assemblies |
| Tank Outfits | 2.5, 5, 10, 12.5, 15 Gallon | Includes 25' hose assemblies. Available in multiple tank sizes. |
All FE-Line Fine Finish Setup Options
Each FEFF setup uses a matched air cap paired to a specific fluid orifice. Select the setup that matches your coating material and application requirements.
| Setup | Orifice | Air Cap | Fluid Tip | Needle | Recommended For |
|---|---|---|---|---|---|
| FEFF-08-1308 | 0.8 mm | 23-1308 | 33-0208 | 40-1808 | Stains, Dyes ★ Eliminates Haloing & Motting |
| FEFF-10-1310 | 1.0 mm | 23-1310 | 33-0210 | 40-1810 | Very Thin — Inks, Dyes, Solvents, Stains |
| FEFF-12-1312 (this page) | 1.2 mm | 23-1312 | 33-0212 | 40-1812 | Thin — Lacquers, Enamels, Primers, Sealers |
| FEFF-13-1313 | 1.3 mm | 23-1313 | 33-0213 | 40-1813 | Single Stage, Base Coat, Clear Coat ★ Top Coat |
| FEFF-14-1314 | 1.4 mm | 23-1314 | 33-0214 | 40-1814 | Single Stage, Base Coat, High Solid Clears, Sealer, Primer |
| FEFF-15-1315 | 1.5 mm | 23-1315 | 33-0215 | 40-1815 | High Solid Clears, Sealer, Primer, Epoxy |
| FEFF-17-1317 | 1.7 mm | 23-1317 | 33-0217 | 40-1817 | Sealer, Primer, Wash Primer, Epoxy |
Download the Full Parts Manual

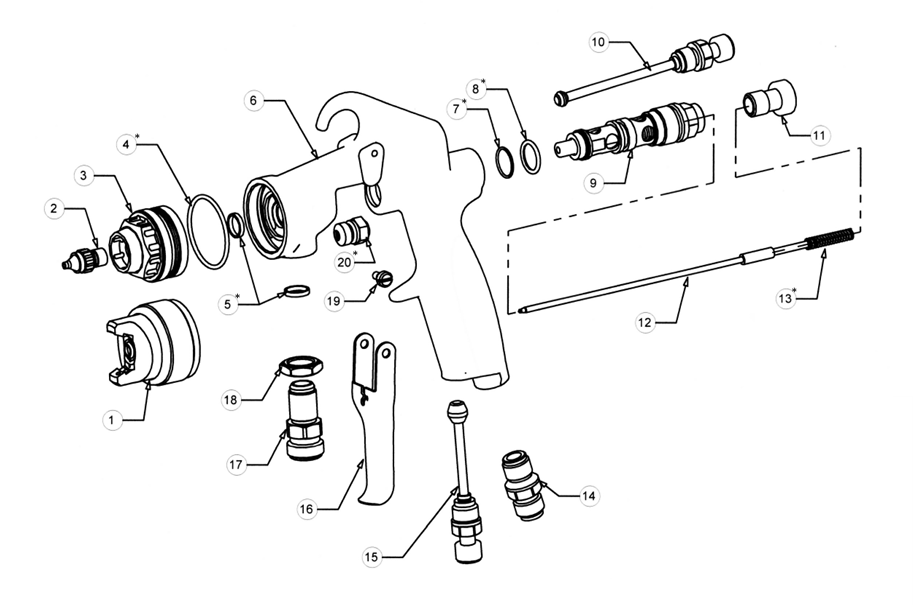

Replacement Parts (Click Part Numbers to Order)
Keep your FE-Line Fine Finish running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-140.
| Item | Part No. | Description |
|---|---|---|
| 1 | 23-1312 | Air Cap (1.2mm) |
| 2 | 33-0212 | Fluid Nozzle Tip — 1.2mm (.046") |
| 12 | 40-1812 | Fluid Needle — 1.2mm |
| 3 | 60-35 | Head Insert |
| 4 | 98-8026 | O-Ring* |
| 5 | 60-137 | O-Ring* |
| 6 | 60-1301-CL | Gun Handle |
| 7 | 98-5125 | O-Ring* |
| 8 | 98-5225 | O-Ring* |
| 9 | 60-1320 | Air Valve Assembly |
| 10 | 60-1317 | Side Port Control (Fan Control) |
| 11 | 60-1312 | Fluid Control Knob |
| 13 | 60-211 | Needle Return Spring* |
| 14 | 60-104 | Air Inlet Fitting |
| 15 | 60-1319 | Air Control |
| 16 | 60-2111 | Trigger |
| 17 | 60-126 | Fluid Inlet |
| 18 | 60-128 | Locknut |
| 19 | 60-1315 | Trigger Pivot Set (2) |
| 20 | 60-1329 | Needle Seal Cartridge* |
Need Help?
Not sure which FEFF setup is right for your coating material or application? Contact CET with your material type and viscosity. We'll help you select the correct air cap, fluid tip, and needle combination before you order.
