C.A. Technologies Lynx 100C Conventional Spray Gun — 1.8mm / 21-2266-3 Pressure Setup (L100C-18-2266-3)
100 Series Conventional General Purpose | US Made
The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-18-2266-3 setup pairs the 31-0618 fluid nozzle (1.8mm) with the 21-2266-3 pressure air cap — the highest-output pressure configuration in the standard 0.6–1.8mm range at 16.2 CFM and a full 15" pattern. The 1.8mm orifice makes this the maximum-fluid-volume version of the 21-2266-3 setup, delivering heavy body coating throughput at full production speed.
Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.
Technical Specifications
| Setup | L100C-18-2266-3 |
| Air Cap | 21-2266-3 — Pressure Feed, 16.2 CFM @ 50 PSI |
| Fluid Nozzle | 31-0618 — 1.8mm (.070") |
| Needle | 40-1115 (115) |
| Feed Type | Pressure Feed |
| Max Inlet Pressure | 50 PSI |
| Air Consumption | 16.2 CFM @ 50 PSI |
| Maximum Pattern Width | 15" |
| Gun Type | Conventional (non-HVLP) |
| Body | Forged Aluminum |
| Fluid Passages | All Stainless Steel |
| Fan Control | 60-1500 (included) |
| Origin | US Made |
| Repair Kit | 10-106 |
| Recommended Applications | Heavy — Primers, Epoxies, Urethanes, High Solid Coatings at maximum pressure feed output |
Best for This Setup
The L100C-18-2266-3 is the heavy-fluid counterpart to the L100C-12-2266-3 — same 21-2266-3 air cap delivering the maximum 16.2 CFM and 15" pattern in the pressure feed lineup, but with the 1.8mm orifice opened up to handle thick, heavy body coatings that would restrict or starve through a 1.2mm or 1.3mm nozzle. This is the right configuration for industrial and automotive production environments running heavy body epoxy primers, high-build sealers, urethane coatings, and thick industrial enamels through a pressure pot or pressure cup system where you need both maximum fluid volume and maximum pattern width in a single pass. The 1.8mm stainless nozzle flows viscous materials freely without the pressure drop and spatter issues that come from forcing heavy body coatings through an undersized orifice, while the 21-2266-3's 16.2 CFM ensures the material is fully atomized across the full 15" fan. If you've been running a 1.5mm or 1.8mm siphon setup and want to step up to pressure feed for more consistent fluid delivery at higher production volumes, the L100C-18-2266-3 is the direct upgrade path.
Find the Right Lynx 100C Setup
Not sure which variant is right for your application? Use this table to match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.
| Setup | Feed | Orifice | Air Cap | CFM | Pattern | Best For |
|---|---|---|---|---|---|---|
| SIPHON FEED | ||||||
| L100C-08-2466 | Siphon | 0.8mm | 21-2466 | 15 | 13" | Very thin — inks, dyes, stains at high siphon output |
| L100C-08-1590 | Siphon | 0.8mm | 21-1590 | Low | — | Very thin materials — restricted air supply or sensitive substrates |
| L100C-10-2466 | Siphon | 1.0mm | 21-2466 | 15 | 13" | Thin — lacquers, enamels, primers at high siphon output |
| L100C-12-2266 | Siphon | 1.2mm | 21-2266 | 12 | 10" | Base coat, enamels, lacquers — small shop / moderate compressor |
| L100C-15-2266 | Siphon | 1.5mm | 21-2266 | 12 | 10" | Medium body enamels, primers at controlled siphon output |
| L100C-18-2266 | Siphon | 1.8mm | 21-2266 | 12 | 10" | Heavy body siphon at tight 10" pattern — detail work, smaller parts |
| L100C-15-2366 | Siphon | 1.5mm | 21-2366 | 12 | 14" | Medium body siphon with wide 14" pattern — panels, flat surfaces |
| L100C-18-2366 | Siphon | 1.8mm | 21-2366 | 12 | 14" | Wide siphon pattern for thick base coats, epoxy primers, urethanes |
| L100C-15-2466 | Siphon | 1.5mm | 21-2466 | 15 | 13" | High-output siphon for thick enamels, high-build primers, adhesives |
| L100C-18-2466 | Siphon | 1.8mm | 21-2466 | 15 | 13" | Max siphon output — heavy body coatings, thick primers, adhesives |
| L100C-18V-2466 | Siphon | 1.8mm Carbide | 21-2466 | 15 | 13" | Abrasive / particle-laden coatings — carbide tip resists premature wear |
| L100C-18-1590 | Siphon | 1.8mm | 21-1590 | Low | — | Heavy body — restricted air supply or low atomization pressure required |
| PRESSURE FEED | ||||||
| L100C-12-2263 | Pressure | 1.2mm | 21-2263 | 14 | 14" | Mid-output pressure feed — base coat, enamel, primer |
| L100C-13-2263 | Pressure | 1.3mm | 21-2263 | 14 | 14" | Automotive base coat, enamels, medium primers — pressure feed |
| L100C-18-2263 | Pressure | 1.8mm | 21-2263 | 14 | 14" | Heavy body pressure feed — thick primers, epoxies, urethanes |
| L100C-12-2266-3 | Pressure | 1.2mm | 21-2266-3 | 16.2 | 15" | Max coverage pressure feed — base coat, enamels, panels at production speed |
| L100C-13-2266-3 | Pressure | 1.3mm | 21-2266-3 | 16.2 | 15" | High-output pressure — base coat, single stage, production panel spraying |
| L100C-18-2266-3 (this page) | Pressure | 1.8mm | 21-2266-3 | 16.2 | 15" | Max pressure output — heavy body primers, epoxies, urethanes at full pattern |
| L100C-18-2266-3T | Pressure | 1.8mm | 21-2266-3T | 16.2 | 15" | Reactive coatings, 2K epoxies — Teflon cap resists material buildup |
| L100C-22-2167 | Pressure | 2.2mm | 21-2167 | 14.5 | 12" | Very heavy body — high solid enamels, heavy primers, adhesives |
| L100C-22-2709 | Pressure | 2.2mm | 21-2709 | — | — | Very heavy body materials — high solid coatings, thick adhesives |
| L100C-18-2709 | Pressure | 1.8mm | 21-2709 | — | — | Heavy body pressure — epoxies, urethanes, high solid primers |
| INTERNAL MIX | ||||||
| L100C-28-201 | Internal Mix | 2.8mm | 21-2201 IM | 5.2 | — | Max orifice internal mix — ultra-heavy body, thick adhesives, caulks |
| L100C-18-201 | Internal Mix | 1.8mm | 21-200 | 5.2 | — | Internal mix at 1.8mm — heavy body coatings, Binks 200 replacement |
| L100C-22-201 | Internal Mix | 2.2mm | 21-2201 | 5.2 | — | Max-flow internal mix — ultra-heavy body coatings, thick adhesives |
CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration above.
Why the Lynx 100C?
The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.
- Forged aluminum body — lightweight, durable, and built for production use
- Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
- Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
- Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
- Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
- Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
- US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)
Available Outfits & Configurations
| Part Number | Type | Description |
|---|---|---|
| OL100C-303R2 | 1 QT Pressure Cup | Lynx 100C with 1 QT aluminum pressure cup |
| OL100C-301 | 1 QT Siphon Cup | Lynx 100C with 1 QT aluminum siphon cup |
| OL100C-130 | 2 Quart Outfit (Economy) | Includes 5' hose assemblies |
| OL100C-600 | 2 Quart Outfit (Bandit) | Includes 5' hose assemblies |
| Tank Outfits | 2.5, 5, 10, 12.5, 15 Gallon | Includes 25' hose assemblies. Available in multiple tank sizes. |
All Lynx 100C Air Cap Options
The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.
Siphon Feed
| Air Cap | Fluid Tip Range | Max Inlet | CFM |
|---|---|---|---|
| 21-2166 | 0.6 – 1.8mm | 50 PSI | 5 CFM |
| 21-2266 | 0.6 – 1.8mm | 50 PSI | 12 CFM |
| 21-2266T | 0.6 – 1.8mm | 50 PSI | 12 CFM — Teflon |
| 21-2366 | 0.6 – 1.8mm | 50 PSI | 12 CFM |
| 21-2466 | 0.6 – 1.8mm | 50 PSI | 15 CFM |
| 21-2467 | 2.2mm | 50 PSI | 15 CFM |
| 21-2268 | 2.8mm | 50 PSI | 15 CFM |
Pressure Feed
| Air Cap | Fluid Tip Range | Max Inlet | CFM |
|---|---|---|---|
| 21-2163 | 0.6 – 1.8mm | 50 PSI | 8 CFM |
| 21-2263 | 0.6 – 1.8mm | 50 PSI | 14 CFM |
| 21-2266-3 (this page) | 0.6 – 1.8mm | 50 PSI | 16.2 CFM |
| 21-2266-3T | 0.6 – 1.8mm | 50 PSI | 16.2 CFM — Teflon |
| 21-2167 | 2.2mm | 50 PSI | 14.5 CFM |
| 21-2267 | 2.2mm | 50 PSI | 15 CFM |
| 21-2168 | 2.8mm | 50 PSI | 14 CFM |
| 21-2766B | 1.0 – 1.8mm | 50 PSI | 8 CFM |
Internal Mix
| Air Cap | Fluid Tip Range | Max Inlet | CFM |
|---|---|---|---|
| 21-200 | 1.5 – 1.8mm | 50 PSI | 5.2 CFM — requires 21-1583 base & 21-1584 ring |
| 21-2201 | 2.2mm | 50 PSI | 5.2 CFM — requires 21-1583 base & 21-1584 ring |
Download the Full Parts Manual

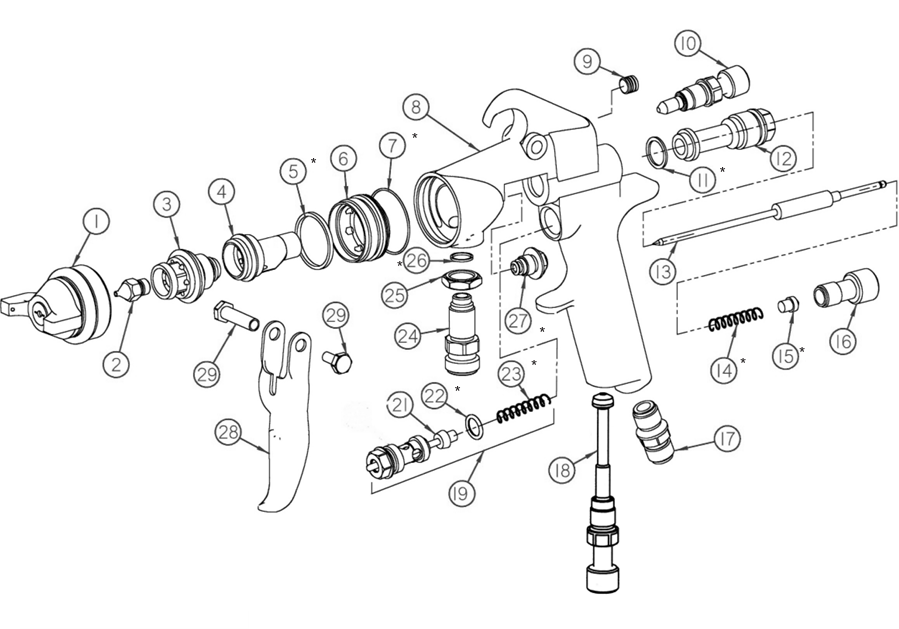

Replacement Parts (Click Part Numbers to Order)
Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.
| Item | Part No. | Description |
|---|---|---|
| 1 | 21-2266-3 | Air Cap — Pressure, 16.2 CFM |
| 2 | 31-0618 | Fluid Nozzle Tip — 1.8mm (.070") |
| 13 | 40-1115 (115) | Fluid Needle — 1.5mm–1.8mm |
| 3 | 31-2201 | Fluid Nozzle Body |
| 4 | 60-L11C | Nozzle Body Carrier |
| 5 | 61-1005 | Seal* |
| 6 | 60-12C | Air Cap Adapter |
| 7 | 60-131 | O-Ring* |
| 8 | 60-1124 | Lynx Gun Body Conventional |
| 9 | 98-0109 | Allen Plug |
| 11 | 60-119 | Seal* |
| 12 | 60-201 | Rear Bushing |
| 14 | 60-204 | Needle Return Spring* |
| 15 | 60-205 | Spring Seat* |
| 16 | 60-202 | Fluid Control Knob |
| 17 | 60-104 | Air Inlet Fitting |
| 18 | 60-1510 | Inlet Air Control |
| 19 | 60-1520 | Air Valve Assembly |
| 21 | 60-302 | Air Valve Poppet |
| 22 | 60-125 | Seal* |
| 23 | 61-1003 | Air Valve Spring* |
| 24 | 60-126 | Fluid Inlet |
| 25 | 60-128 | Locknut |
| 26 | 60-124 | Seal* |
| 27 | 60-1400 | Needle Seal* |
| 28 | 60-2101 | Trigger |
| 29 | 60-1033 | Trigger Pivot Set |
Need Help?
Not sure which air cap or fluid nozzle combination is right for your coating material? Contact CET with your material type, viscosity, and feed preference. We'll help you select the correct Lynx 100C setup before you order.
