C.A. Technologies Lynx 100C Conventional Spray Gun — 0.8mm / 21-1590 Siphon Setup (L100C-08-1590)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-08-1590 setup pairs the 31-0607 fluid nozzle (0.8mm) with the 21-1590 siphon air cap — the smallest orifice available on the Lynx 100C paired with a low-CFM air cap. This configuration is designed for very thin materials including inks, dyes, and stains in applications where reduced air consumption or low atomization pressure is a requirement.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-08-1590 is the finest-orifice, lowest-air-demand configuration in the Lynx 100C siphon feed lineup — the right choice when you're working with very thin materials like inks, water-based dyes, and penetrating stains and either your compressor capacity is limited or your application requires low atomization pressure to avoid disturbing the substrate or causing excessive misting. The 0.8mm orifice inherently restricts fluid flow to a fine, controlled stream, making it ideal for applications where precise material metering matters as much as pattern coverage — decorative wood finishing with penetrating stains, light ink marking applications, or any scenario where overspray and material waste are significant concerns. The 21-1590 low-CFM air cap keeps air draw to a minimum while still producing a usable conventional spray pattern. If you're currently running a 0.8mm setup with a higher-CFM air cap and experiencing excess mist, bounce-back on porous surfaces, or compressor recovery issues, the L100C-08-1590 is the lower-demand alternative to evaluate.

Find the Right Lynx 100C Setup

Not sure which variant is right for your application? Use this table to match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.

CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration above.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

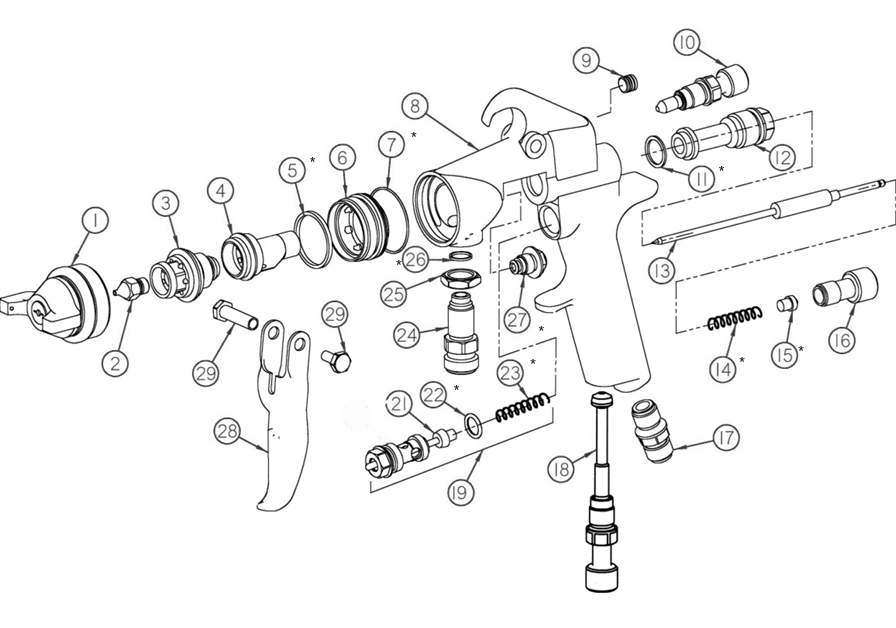

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material or air supply setup? Contact CET with your material type, viscosity, and compressor capacity. We'll help you select the correct Lynx 100C configuration before you order.
