C.A. Technologies Lynx 100C Conventional Spray Gun — 0.8mm / 21-2466 Siphon Setup (L100C-08-2466)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-08-2466 setup pairs the 31-0607 fluid nozzle (0.8mm) with the 21-2466 siphon air cap — delivering 15 CFM and a 13" pattern at 50 PSI. The fine 0.8mm orifice with the high-output 21-2466 makes this the highest-air-volume configuration available for very thin materials on the Lynx 100C siphon lineup, combining maximum pattern coverage with the precision fluid control that a small orifice provides on inks, dyes, and penetrating stains.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-08-2466 is the high-output counterpart to the low-CFM L100C-08-1590 — same 0.8mm orifice, but with the 21-2466 pushing 15 CFM for maximum production coverage on very thin materials. Where the 08-1590 is optimized for sensitive substrates and restricted air supply, the L100C-08-2466 is the right choice when your compressor can support 15 CFM and you need to cover ground quickly. The 13" pattern at 0.8mm fluid flow is particularly well suited to high-speed stain application on wood cabinets, millwork, or flooring — you get the wide coverage of the 21-2466 without the fluid flooding risk that comes with stepping up to a 1.0mm or larger orifice on very thin, fast-penetrating materials. It's also a strong configuration for industrial ink and dye marking applications where pattern width and throughput matter more than the air conservation benefits of the 1590 series. If your 0.8mm setup with a lower-CFM air cap is limiting your production speed and your air supply can handle 15 CFM, the L100C-08-2466 is the direct upgrade path.

Find the Right Lynx 100C Setup

Not sure which variant is right for your application? Use this table to match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.

CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration above.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

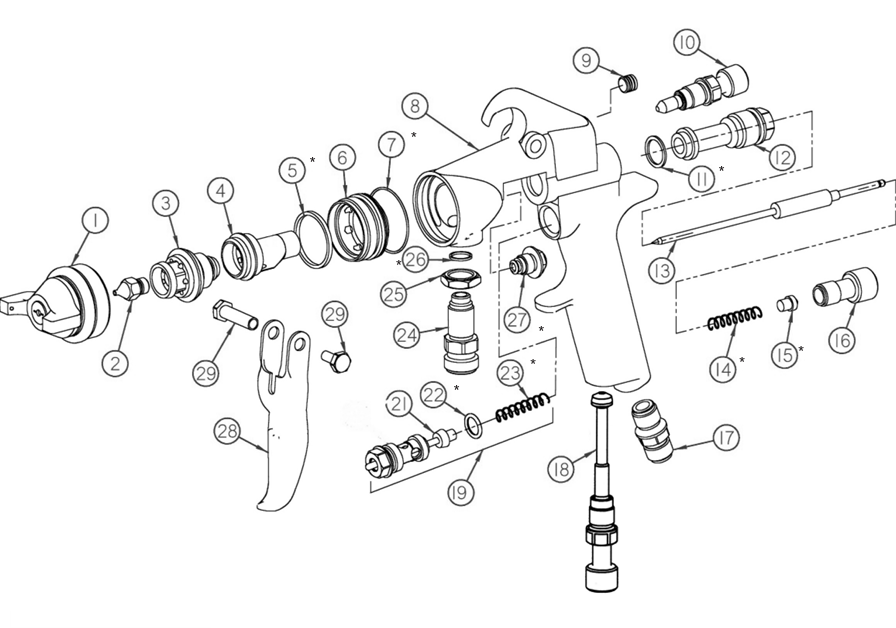

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material? Contact CET with your material type, viscosity, and feed preference. We'll help you select the correct Lynx 100C setup before you order.
