C.A. Technologies Lynx 100C Conventional Spray Gun — 1.2mm / 21-2263 Pressure Setup (L100C-12-2263)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-12-2263 setup pairs the 31-0612 fluid nozzle (1.2mm) with the 21-2263 pressure air cap — a medium-output pressure configuration delivering 14 CFM and a wide 14" pattern. Well suited for medium viscosity materials including automotive base coat, enamels, primers, epoxies, and urethanes where pressure feed consistency and a controlled pattern width are the priority.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-12-2263 occupies a useful middle position in the pressure feed lineup — more output than the 8 CFM 21-2163 but with a 14" pattern that's wider than the 10" delivered by the siphon-feed 21-2266 at the same orifice size. This makes it a practical choice for operators who want pressure feed consistency on medium-viscosity materials and need a pattern wide enough for panel work without the higher air demand of the 21-2266-3. The 21-2263 at 14 CFM is also a more accessible option for shops where compressor capacity is a constraint — it delivers genuine production-width coverage without requiring the kind of air supply that 16+ CFM configurations demand. Well suited for automotive base coat, enamel, and primer applications in mid-size body shops or industrial finishing environments running pressure pot systems.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

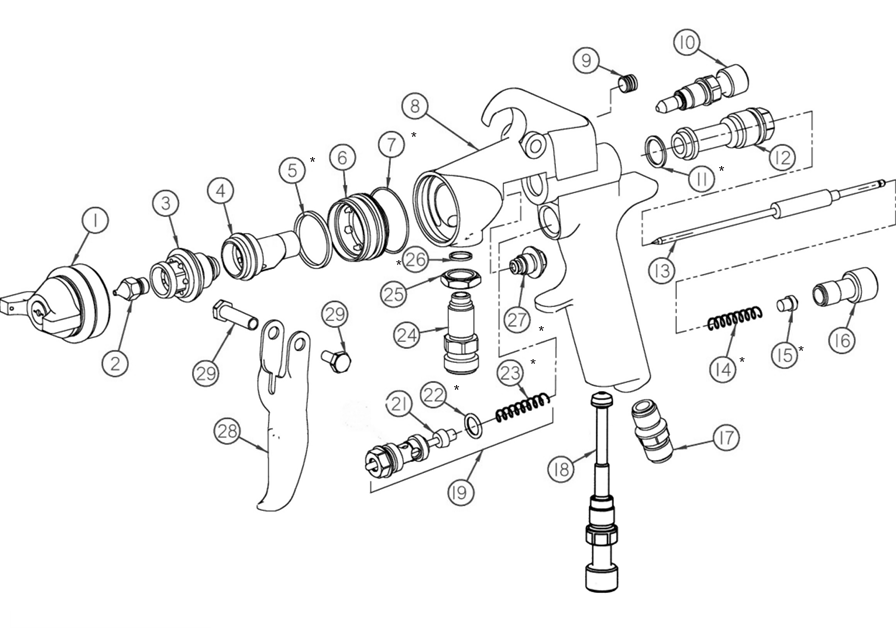

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material? Contact CET with your material type, viscosity, and feed preference. We'll help you select the correct Lynx 100C setup before you order.
