C.A. Technologies Lynx 100C Conventional Spray Gun — 1.5mm / 21-2266 Siphon Setup (L100C-15-2266)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-15-2266 setup pairs the 31-0615 fluid nozzle (1.5mm) with the 21-2266 siphon air cap — delivering 12 CFM and a 10" pattern at 50 PSI. The 1.5mm orifice flows medium body enamels, primers, and sealers freely through a controlled siphon feed setup, making it a strong choice for operators who need more fluid throughput than the 1.2mm provides but prefer the tighter 10" pattern of the 21-2266 over the wider patterns of the 21-2366 or 21-2466.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-15-2266 is the right choice when you need the fluid volume of a 1.5mm orifice through a siphon feed setup, but a 10" pattern width is preferable over the wider 13–14" patterns delivered by the 21-2366 and 21-2466. The tighter 10" fan of the 21-2266 at 12 CFM is particularly useful for spraying medium body enamels and primers onto smaller components, cabinets, trim work, or any application where a wide pattern would mean excessive overspray on adjacent surfaces. It's also a practical choice for operators running a smaller compressor who want the 1.5mm fluid flow — enough to handle medium-viscosity coatings without starving — while keeping air draw at 12 CFM rather than the 15 CFM required by the 21-2466. If you're currently using a 1.2mm setup with the 21-2266 and finding it restricts fluid flow on your material, stepping up to the 1.5mm nozzle in the same air cap is the logical and low-disruption path.

Find the Right Lynx 100C Setup

Not sure which variant is right for your application? Use this table to match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.

CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration above.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

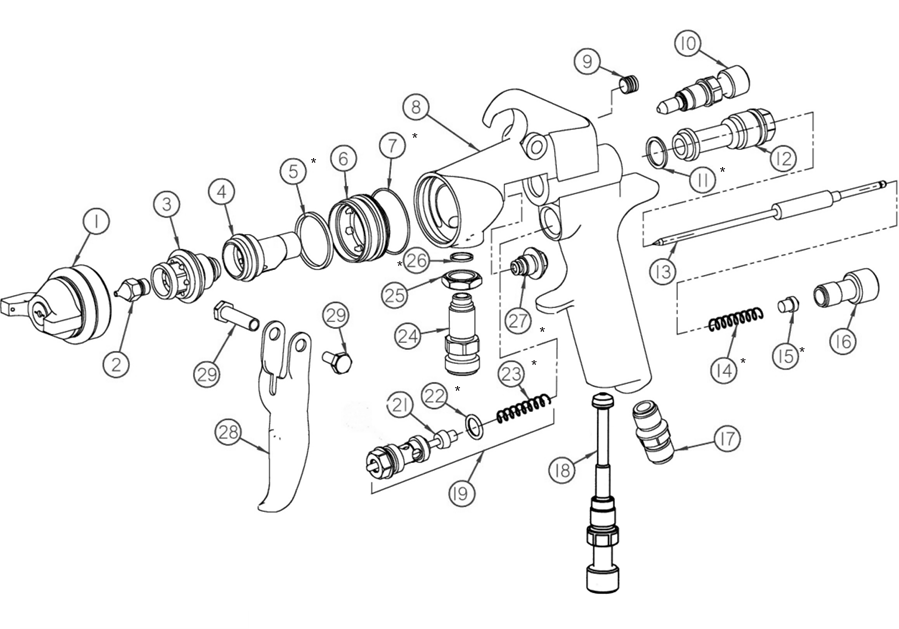

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material? Contact CET with your material type, viscosity, and feed preference. We'll help you select the correct Lynx 100C setup before you order.
