C.A. Technologies Lynx 100C Conventional Spray Gun — 1.8mm / 21-1590 Siphon Setup (L100C-18-1590)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-18-1590 setup pairs the 31-0618 fluid nozzle (1.8mm) with the 21-1590 siphon air cap — a low-CFM configuration that delivers the fluid volume of a 1.8mm orifice at significantly reduced air consumption, making it well suited for operators working in restricted air supply environments or applications where reduced atomization pressure is required to prevent overspray or material disturbance on sensitive substrates.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-18-1590 is the right choice when you need the fluid volume of a 1.8mm orifice but your air supply is limited or your application calls for reduced atomization pressure. The 21-1590 is a low-CFM siphon air cap — unlike the high-output 21-2466 (15 CFM) or 21-2366 (12 CFM), the 1590 series operates at significantly lower air consumption, making it practical for smaller shop compressors, portable setups, or environments where multiple operators share a single air line. This configuration is also used when spraying materials onto sensitive or lightweight substrates where higher air velocity would disturb the wet film or cause excessive bounce-back. The 1.8mm stainless nozzle ensures you're not sacrificing fluid delivery — heavier body enamels, epoxy primers, and urethane coatings flow freely — while the lower-CFM air cap keeps atomization gentle and air draw manageable. If you've been running a higher-CFM setup and struggling with compressor recovery time or pattern blowout on lighter substrates, the L100C-18-1590 is worth evaluating as a lower-demand alternative.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

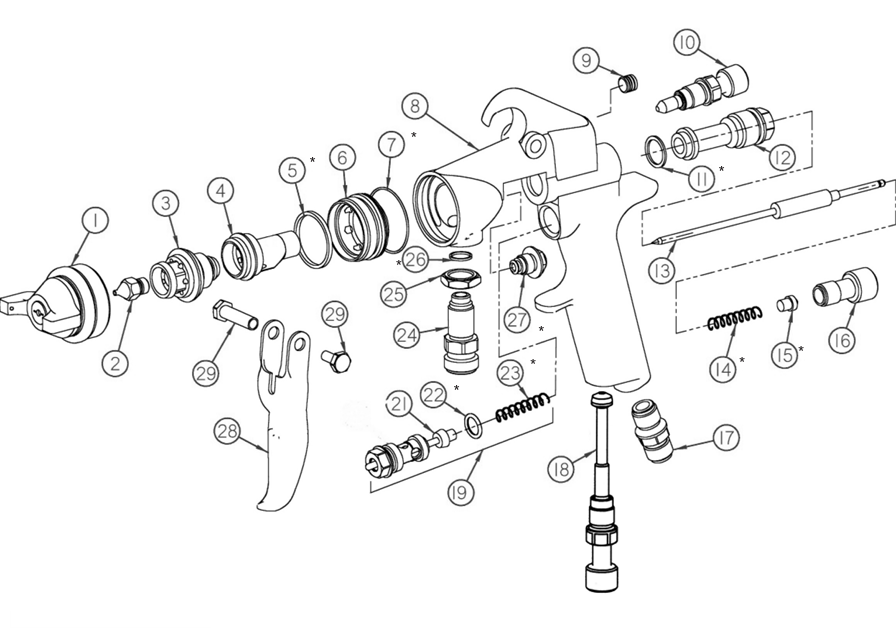

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material or air supply setup? Contact CET with your material type, viscosity, and compressor capacity. We'll help you select the correct Lynx 100C configuration before you order.
