Description
C.A. Technologies Lynx 100C Conventional Spray Gun — 1.8mm / 21-200 Internal Mix Setup (L100C-18-201)
100 Series Conventional General Purpose | Internal Mix | US Made
The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in pressure, siphon, and internal mix feed configurations. The L100C-18-201 setup pairs the 31-0618 fluid nozzle (1.8mm) with the 21-200 internal mix air cap — combining air and fluid inside the air cap before exit for materials that cannot be properly atomized by external mix configurations. The 1.8mm orifice makes this the smaller of the two internal mix setups available on the Lynx 100C, suited for heavy body materials where slightly less fluid throughput than the 2.2mm 21-2201 configuration is preferred.
Note: The 21-200 internal mix air cap requires the 21-1583 base and 21-1584 ring for proper installation. Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional spray dependability across a wide range of coatings and industries.
Technical Specifications
| Setup | L100C-18-201 |
| Air Cap | 21-200 — Internal Mix, 5.2 CFM @ 50 PSI |
| Required Accessories | 21-1583 Base & 21-1584 Ring (required for 21-200 installation) |
| Fluid Nozzle | 31-0618 — 1.8mm (.070") |
| Needle | 40-1115 (115) |
| Atomization Type | Internal Mix — air and fluid combine inside the air cap |
| Max Inlet Pressure | 50 PSI |
| Air Consumption | 5.2 CFM @ 50 PSI |
| Gun Type | Conventional (non-HVLP) |
| Body | Forged Aluminum |
| Fluid Passages | All Stainless Steel |
| Fan Control | 60-1500 (included) |
| Origin | US Made |
| Repair Kit | 10-106 |
| Recommended Applications | Heavy Body Coatings, Catalyzed Materials, Adhesives requiring internal mix at 1.5–1.8mm orifice range |
Best for This Setup
The L100C-18-201 is the internal mix counterpart to the L100C-22-201 — same atomization method, smaller orifice. Where the 21-2201 with a 2.2mm nozzle is designed for maximum fluid throughput on the heaviest body materials, the 21-200 with a 1.8mm nozzle gives you internal mix atomization with slightly more fluid control, making it a better fit when your material is viscous enough to require internal mix but doesn't need the full 2.2mm opening to maintain adequate flow. This setup is also the one to reach for if you're converting an existing gun from a Binks 200-style internal mix air cap — the 21-200 is a direct functional replacement for the Binks 200, making it a straightforward drop-in for shops already familiar with that configuration. As with the 21-2201, the 21-1583 base and 21-1584 ring are required accessories for installation. Air consumption is just 5.2 CFM, keeping this configuration accessible for smaller compressor setups even when spraying heavy industrial coatings.
Find the Right Lynx 100C Setup
Not sure which variant is right for your application? Use this table to match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.
| Setup | Feed | Orifice | Air Cap | CFM | Pattern | Best For |
|---|---|---|---|---|---|---|
| SIPHON FEED | ||||||
| L100C-08-2466 | Siphon | 0.8mm | 21-2466 | 15 | 13" | Very thin — inks, dyes, stains at high siphon output |
| L100C-08-1590 | Siphon | 0.8mm | 21-1590 | Low | — | Very thin materials — restricted air supply or sensitive substrates |
| L100C-10-2466 | Siphon | 1.0mm | 21-2466 | 15 | 13" | Thin — lacquers, enamels, primers at high siphon output |
| L100C-12-2266 | Siphon | 1.2mm | 21-2266 | 12 | 10" | Base coat, enamels, lacquers — small shop / moderate compressor |
| L100C-15-2266 | Siphon | 1.5mm | 21-2266 | 12 | 10" | Medium body enamels, primers at controlled siphon output |
| L100C-18-2266 | Siphon | 1.8mm | 21-2266 | 12 | 10" | Heavy body siphon at tight 10" pattern — detail work, smaller parts |
| L100C-15-2366 | Siphon | 1.5mm | 21-2366 | 12 | 14" | Medium body siphon with wide 14" pattern — panels, flat surfaces |
| L100C-18-2366 | Siphon | 1.8mm | 21-2366 | 12 | 14" | Wide siphon pattern for thick base coats, epoxy primers, urethanes |
| L100C-15-2466 | Siphon | 1.5mm | 21-2466 | 15 | 13" | High-output siphon for thick enamels, high-build primers, adhesives |
| L100C-18-2466 | Siphon | 1.8mm | 21-2466 | 15 | 13" | Max siphon output — heavy body coatings, thick primers, adhesives |
| L100C-18V-2466 | Siphon | 1.8mm Carbide | 21-2466 | 15 | 13" | Abrasive / particle-laden coatings — carbide tip resists premature wear |
| L100C-18-1590 | Siphon | 1.8mm | 21-1590 | Low | — | Heavy body — restricted air supply or low atomization pressure required |
| PRESSURE FEED | ||||||
| L100C-12-2263 | Pressure | 1.2mm | 21-2263 | 14 | 14" | Mid-output pressure feed — base coat, enamel, primer |
| L100C-13-2263 | Pressure | 1.3mm | 21-2263 | 14 | 14" | Automotive base coat, enamels, medium primers — pressure feed |
| L100C-18-2263 | Pressure | 1.8mm | 21-2263 | 14 | 14" | Heavy body pressure feed — thick primers, epoxies, urethanes |
| L100C-12-2266-3 | Pressure | 1.2mm | 21-2266-3 | 16.2 | 15" | Max coverage pressure feed — base coat, enamels, panels at production speed |
| L100C-13-2266-3 | Pressure | 1.3mm | 21-2266-3 | 16.2 | 15" | High-output pressure — base coat, single stage, production panel spraying |
| L100C-18-2266-3 | Pressure | 1.8mm | 21-2266-3 | 16.2 | 15" | Max pressure output — heavy body primers, epoxies, urethanes at full pattern |
| L100C-18-2266-3T | Pressure | 1.8mm | 21-2266-3T | 16.2 | 15" | Reactive coatings, 2K epoxies — Teflon cap resists material buildup |
| L100C-22-2167 | Pressure | 2.2mm | 21-2167 | 14.5 | 12" | Very heavy body — high solid enamels, heavy primers, adhesives |
| L100C-22-2709 | Pressure | 2.2mm | 21-2709 | — | — | Very heavy body materials — high solid coatings, thick adhesives |
| L100C-18-2709 | Pressure | 1.8mm | 21-2709 | — | — | Heavy body pressure — epoxies, urethanes, high solid primers |
| INTERNAL MIX | ||||||
| L100C-28-201 | Internal Mix | 2.8mm | 21-2201 IM | 5.2 | — | Max orifice internal mix — ultra-heavy body, thick adhesives, caulks |
| L100C-18-201 (this page) | Internal Mix | 1.8mm | 21-200 | 5.2 | — | Internal mix at 1.8mm — heavy body coatings, Binks 200 replacement |
| L100C-22-201 | Internal Mix | 2.2mm | 21-2201 | 5.2 | — | Max-flow internal mix — ultra-heavy body coatings, thick adhesives |
CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration above.
Why the Lynx 100C?
The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.
- Forged aluminum body — lightweight, durable, and built for production use
- Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
- Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
- Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
- Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
- Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
- US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)
Available Outfits & Configurations
| Part Number | Type | Description |
|---|---|---|
| OL100C-303R2 | 1 QT Pressure Cup | Lynx 100C with 1 QT aluminum pressure cup |
| OL100C-301 | 1 QT Siphon Cup | Lynx 100C with 1 QT aluminum siphon cup |
| OL100C-130 | 2 Quart Outfit (Economy) | Includes 5' hose assemblies |
| OL100C-600 | 2 Quart Outfit (Bandit) | Includes 5' hose assemblies |
| Tank Outfits | 2.5, 5, 10, 12.5, 15 Gallon | Includes 25' hose assemblies. Available in multiple tank sizes. |
All Lynx 100C Air Cap Options
The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.
Siphon Feed
| Air Cap | Fluid Tip Range | Max Inlet | CFM |
|---|---|---|---|
| 21-2166 | 0.6 – 1.8mm | 50 PSI | 5 CFM |
| 21-2266 | 0.6 – 1.8mm | 50 PSI | 12 CFM |
| 21-2266T | 0.6 – 1.8mm | 50 PSI | 12 CFM — Teflon |
| 21-2366 | 0.6 – 1.8mm | 50 PSI | 12 CFM |
| 21-2466 | 0.6 – 1.8mm | 50 PSI | 15 CFM |
| 21-2467 | 2.2mm | 50 PSI | 15 CFM |
| 21-2268 | 2.8mm | 50 PSI | 15 CFM |
Pressure Feed
| Air Cap | Fluid Tip Range | Max Inlet | CFM |
|---|---|---|---|
| 21-2163 | 0.6 – 1.8mm | 50 PSI | 8 CFM |
| 21-2263 | 0.6 – 1.8mm | 50 PSI | 14 CFM |
| 21-2266-3 | 0.6 – 1.8mm | 50 PSI | 16.2 CFM |
| 21-2266-3T | 0.6 – 1.8mm | 50 PSI | 16.2 CFM — Teflon |
| 21-2167 | 2.2mm | 50 PSI | 14.5 CFM |
| 21-2267 | 2.2mm | 50 PSI | 15 CFM |
| 21-2168 | 2.8mm | 50 PSI | 14 CFM |
| 21-2766B | 1.0 – 1.8mm | 50 PSI | 8 CFM |
Internal Mix
| Air Cap | Fluid Tip Range | Max Inlet | CFM |
|---|---|---|---|
| 21-200 (this page) | 1.5 – 1.8mm | 50 PSI | 5.2 CFM — requires 21-1583 base & 21-1584 ring |
| 21-2201 | 2.2mm | 50 PSI | 5.2 CFM — requires 21-1583 base & 21-1584 ring |
Download the Full Parts Manual

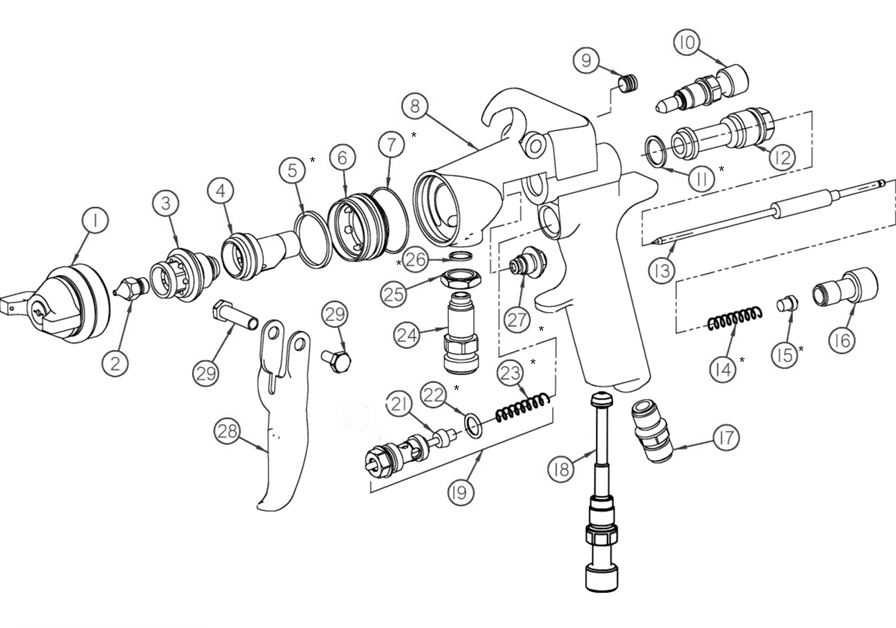

Replacement Parts (Click Part Numbers to Order)
Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.
| Item | Part No. | Description |
|---|---|---|
| 1 | 21-200 | Air Cap — Internal Mix, 5.2 CFM |
| — | 21-1583 | 200 Air Cap Base (required) |
| — | 21-1584 | 200 Air Cap Ring (required) |
| 2 | 31-0618 | Fluid Nozzle Tip — 1.8mm (.070") |
| 13 | 40-1115 (115) | Fluid Needle — 1.5mm–1.8mm |
| 3 | 31-2201 | Fluid Nozzle Body |
| 4 | 60-L11C | Nozzle Body Carrier |
| 5 | 61-1005 | Seal* |
| 6 | 60-12C | Air Cap Adapter |
| 7 | 60-131 | O-Ring* |
| 8 | 60-1124 | Lynx Gun Body Conventional |
| 9 | 98-0109 | Allen Plug |
| 11 | 60-119 | Seal* |
| 12 | 60-201 | Rear Bushing |
| 14 | 60-204 | Needle Return Spring* |
| 15 | 60-205 | Spring Seat* |
| 16 | 60-202 | Fluid Control Knob |
| 17 | 60-104 | Air Inlet Fitting |
| 18 | 60-1510 | Inlet Air Control |
| 19 | 60-1520 | Air Valve Assembly |
| 21 | 60-302 | Air Valve Poppet |
| 22 | 60-125 | Seal* |
| 23 | 61-1003 | Air Valve Spring* |
| 24 | 60-126 | Fluid Inlet |
| 25 | 60-128 | Locknut |
| 26 | 60-124 | Seal* |
| 27 | 60-1400 | Needle Seal* |
| 28 | 60-2101 | Trigger |
| 29 | 60-1033 | Trigger Pivot Set |
Need Help?
Not sure whether internal mix or external mix is the right atomization method for your coating? Contact CET with your material type, viscosity, and application details. We'll help you confirm the correct Lynx 100C configuration before you order.
