C.A. Technologies Lynx 100C Conventional Spray Gun — 1.8mm / 21-2366 Siphon Setup (L100C-18-2366)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-18-2366 setup pairs the 31-0618 fluid nozzle (1.8mm) with the 21-2366 siphon air cap — a medium to heavy viscosity configuration delivering a wide 14" pattern width at 12 CFM. Well suited for automotive base coat, enamels, primers, epoxies, urethanes, and clear coat where the larger 1.8mm orifice handles heavier body materials while maintaining excellent siphon feed performance.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-18-2366 is well suited for operators who need the fluid volume of a 1.8mm orifice in a siphon feed setup but prefer a wider 14" pattern over the 13" delivered by the 21-2466. The 21-2366 runs at 12 CFM — slightly lower air consumption than the 21-2466 — which can be an advantage when working with materials that are sensitive to over-atomization or when the compressor setup benefits from reduced draw. The 1.8mm stainless nozzle handles medium to heavy body materials including thick automotive base coats, epoxy primers, urethanes, and high-viscosity enamels without restriction, making this a strong choice for body shop and industrial refinishing applications where siphon feed is preferred and a wide, high-coverage pattern is needed without the higher CFM demand of the 21-2466.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

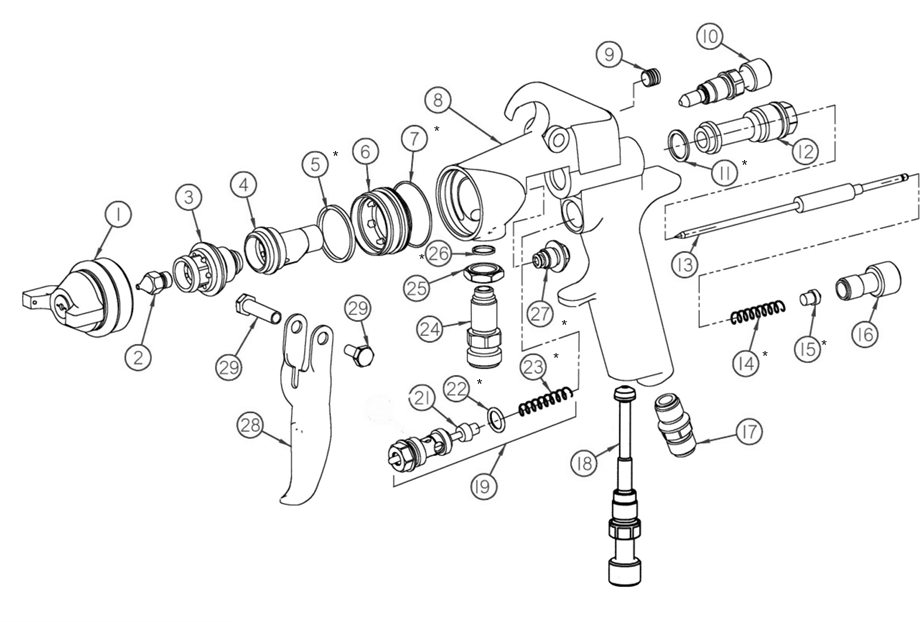

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material? Contact CET with your material type, viscosity, and feed preference. We'll help you select the correct Lynx 100C setup before you order.
