C.A. Technologies Lynx 100C Conventional Spray Gun — 1.8mm / 21-2466 Siphon Setup (L100C-18-2466)

100 Series Conventional General Purpose | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-18-2466 setup pairs the 31-0618 fluid nozzle (1.8mm) with the 21-2466 siphon air cap — delivering 15 CFM and a 13" pattern at 50 PSI. This is the maximum-output siphon feed configuration for the 0.6–1.8mm fluid tip range, combining the largest standard stainless steel orifice with the highest-CFM siphon air cap to handle heavy body coatings, thick primers, and adhesives at production speed.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-18-2466 is the peak siphon feed configuration in the standard stainless steel Lynx 100C lineup — the 1.8mm orifice is the largest available in the 17-4PH stainless range, and the 21-2466 is the highest-CFM siphon air cap. Together they deliver the maximum siphon fluid volume and atomization energy you can get from this gun without stepping into carbide nozzles or pressure feed. This setup is well suited for heavy body industrial coatings including high-build epoxy primers, thick sealers, and production adhesives where siphon cup or siphon tank supply is preferred and the 1.5mm setups don't deliver adequate flow. It's also a natural fit for operators who need the convenience of siphon feed but are spraying materials that would typically require pressure feed — if the material is viscous enough to siphon freely through an 1.8mm tip, the L100C-18-2466 delivers pressure-comparable output without the setup overhead of a pressure pot. If your 1.5mm siphon setup is starving on heavy body material or you're seeing inconsistent spray at the tail of each cup fill, stepping up to the 1.8mm orifice in the same 21-2466 air cap is the direct solution.

Find the Right Lynx 100C Setup

Not sure which variant is right for your application? Use this table to match your coating material and feed preference to the correct setup. All model numbers link to their individual product pages.

CFM and pattern width at 50 PSI max inlet. Contact CET if you don't see your required configuration above.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

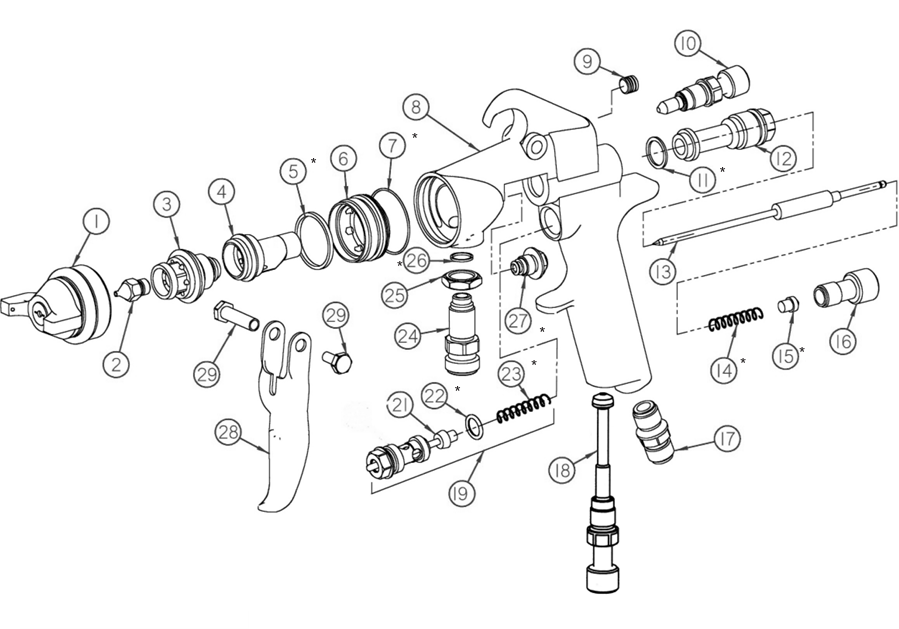

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure which air cap or fluid nozzle combination is right for your coating material? Contact CET with your material type, viscosity, and feed preference. We'll help you select the correct Lynx 100C setup before you order.
