C.A. Technologies Lynx 100C Conventional Spray Gun — 2.2mm / 21-2201 Internal Mix Setup (L100C-22-201)

100 Series Conventional General Purpose | Internal Mix | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in pressure, siphon, and internal mix feed configurations. The L100C-22-201 setup pairs the 31-0622 fluid nozzle (2.2mm) with the 21-2201 internal mix air cap — a fundamentally different atomization method from the external mix air caps in the rest of the Lynx 100C lineup. Internal mix combines air and fluid inside the air cap before they exit the gun, making it the correct choice for very heavy body or non-atomizable materials that require internal mixing to achieve a usable spray pattern.

Note: The 21-2201 internal mix air cap requires the 21-1583 base and 21-1584 ring for proper installation. Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional spray dependability across a wide range of coatings and industries.

Technical Specifications

Best for This Setup

The L100C-22-201 is the right configuration when your coating material is too heavy, too viscous, or too reactive to be atomized by a conventional external mix air cap. Internal mix atomization combines air and fluid inside the air cap before the mixture exits the gun — this produces a coarser, wetter droplet pattern compared to external mix, but it enables spraying of thick-bodied materials, catalyzed two-component coatings, and heavy adhesives that would either clog or fail to atomize at all through a standard external mix setup. The 2.2mm orifice paired with the 21-2201 and the 21-1583/21-1584 base and ring provides maximum fluid throughput at extremely low air consumption (5.2 CFM), making this a practical option for shops with limited compressor capacity that still need to spray high-viscosity industrial coatings. If your material is so thick that external mix setups produce a coarse, spitting pattern even at maximum pressure, internal mix is the correct solution — and the L100C-22-201 is how you get there on the Lynx 100C platform.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

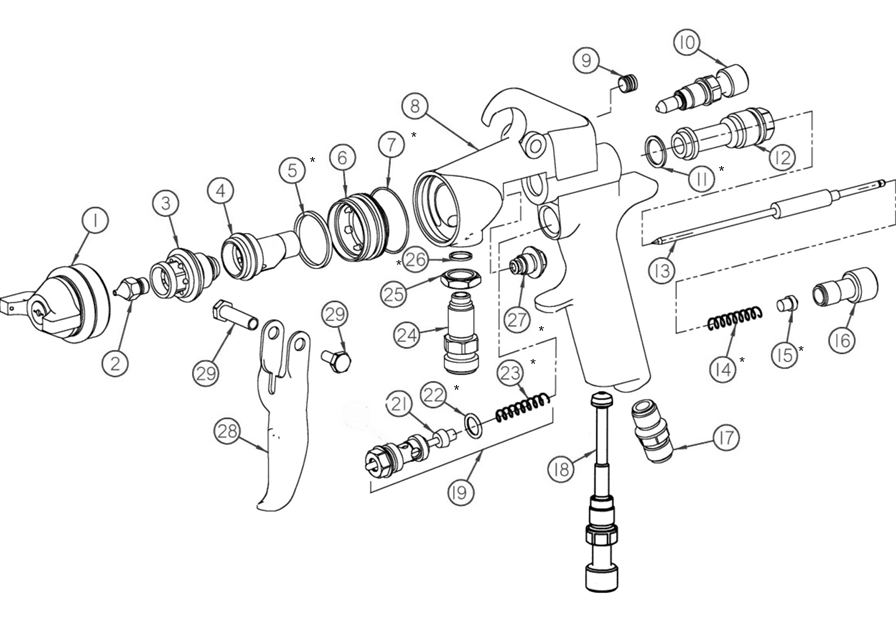

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure whether internal mix or external mix is the right atomization method for your coating? Contact CET with your material type, viscosity, and application details. We'll help you confirm the correct Lynx 100C configuration before you order.
