C.A. Technologies Lynx 100C Conventional Spray Gun — 1.8mm Carbide / 21-2466 Siphon Setup (L100C-18V-2466)

100 Series Conventional General Purpose | Carbide Fluid Nozzle | US Made

The Lynx 100C (L100C) is C.A. Technologies' high quality general purpose conventional spray gun, available in both pressure and siphon feed configurations. The L100C-18V-2466 setup pairs the 31-0618V carbide fluid nozzle (1.8mm) and 40-6201 carbide needle with the 21-2466 siphon air cap — delivering 15 CFM and a 13" pattern at 50 PSI. The carbide fluid path makes this the purpose-built configuration for abrasive and particle-laden coatings that would rapidly wear a standard stainless steel nozzle and needle.

Built with a forged aluminum body and all stainless steel fluid passages, the Lynx 100C delivers conventional air spray dependability across a wide range of coatings and industries. Its broad air cap selection — covering siphon feed, pressure feed, and internal mix configurations — makes it one of the most versatile conventional spray guns in the C.A. Technologies lineup.

Technical Specifications

Best for This Setup

The L100C-18V-2466 is the right choice when your coating contains abrasive particles, metallic fillers, or solid content that would quickly erode a standard 17-4PH stainless steel nozzle and needle. Carbide is significantly harder than stainless steel, dramatically extending service life in applications like filled high-build primers, metallic and pearl coatings with coarse particle sizes, abrasive wood stains containing silica or aluminum oxide, and ceramic or anti-corrosion coatings with solid particulate. If you're experiencing premature tip wear or pattern degradation after relatively short run times with a standard nozzle, switching to the 31-0618V carbide nozzle and 40-6201 carbide needle is the correct solution. The 21-2466 siphon air cap's 15 CFM output and 13" pattern width make it well matched to medium-to-heavy body abrasive materials where higher fluid volume is needed to maintain a consistent wet film.

Why the Lynx 100C?

The Lynx 100C is C.A. Technologies' answer to conventional spray gun dependability — a workhorse gun built for operators who need reliable, consistent performance across a wide variety of coating applications. The forged aluminum body keeps it lightweight and durable, while the all stainless steel fluid passages ensure compatibility with everything from thin inks and dyes to heavy body primers and adhesives.

• Forged aluminum body — lightweight, durable, and built for production use
• Stainless steel fluid passages — compatible with the full range of coatings from thin to thick
• Broad air cap selection — 21 air cap options across siphon, pressure, and internal mix configurations let you optimize for any application
• Available with carbide tipped fluid nozzles — for abrasive material applications that would wear standard stainless steel nozzles
• Internal mix capability — the 21-200 and 21-2201 air caps enable internal mix spraying for specific application needs
• Flexible outfit options — available with 1 QT siphon cup, 1 QT pressure cup, 2 quart outfit, or tank outfits from 2.5 to 15 gallons
• US Made — designed and manufactured by C.A. Technologies (Coating Atomization Technologies)

Available Outfits & Configurations

All Lynx 100C Air Cap Options

The Lynx 100C supports an extensive range of air caps across siphon, pressure, and internal mix configurations. Select the air cap that matches your fluid viscosity, feed type, and required pattern width.

Siphon Feed

Pressure Feed

Internal Mix

Download the Full Parts Manual

Download PDF Parts Manual

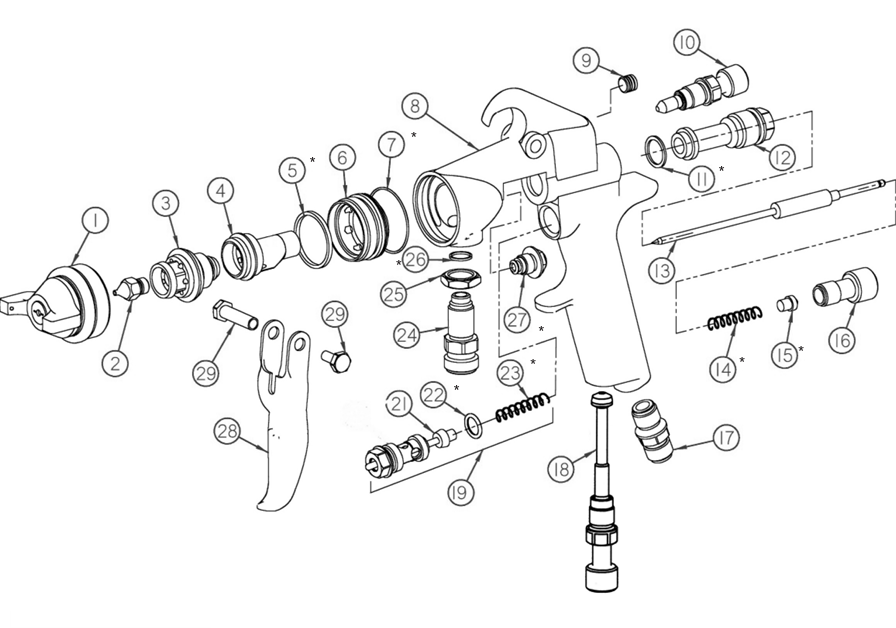

Replacement Parts (Click Part Numbers to Order)

Keep your Lynx 100C running at peak performance with genuine C.A. Technologies replacement parts. Parts marked with * are included in repair kit 10-106.

Need Help?

Not sure whether carbide or stainless steel is the right fluid path for your coating? Contact CET with your material type and solid content. We'll help you confirm the correct nozzle and needle combination before you order.
