C.A. Technologies 10 Gallon Non-ASME Bottom Outlet Pressure Tank Parts Manual (51-560 / 51-561 / 51-562)

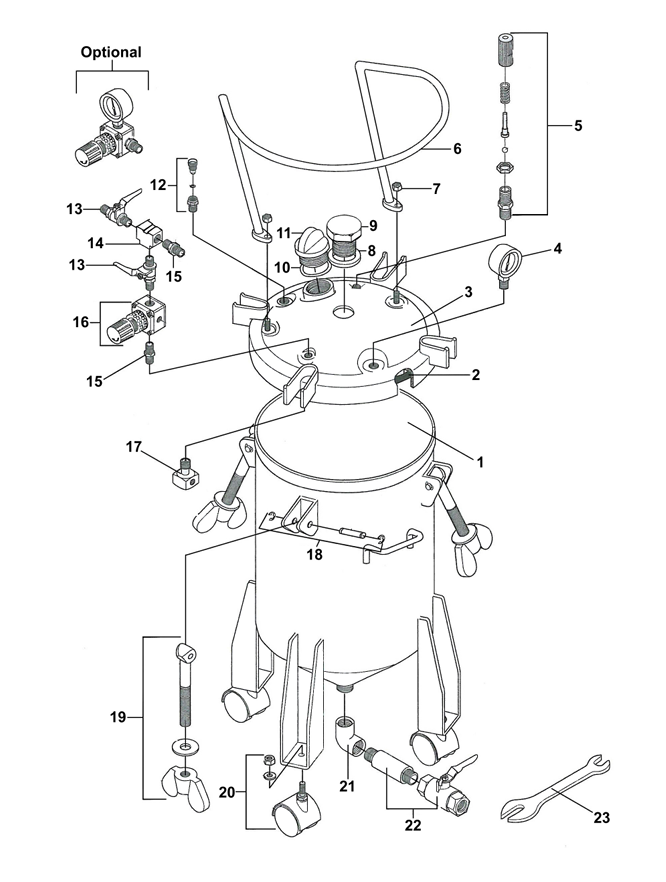

This page provides the official parts manual for the C.A. Technologies 10 Gallon (Non-ASME) Bottom Outlet Pressure Tank. Use this manual to view the parts diagram, confirm part numbers, and click through to order genuine replacement parts from CET.
Models Covered: 51-560 (Bottom Outlet, No Regulation) • 51-561 (Bottom Outlet, Single Regulated) • 51-562 (Bottom Outlet, Double Regulated)
Note: This manual covers 10 gallon bottom outlet configurations. Use the parts list below to match item numbers to replacement parts.
Download the PDF Parts Manual
Important Safety Note (Non-ASME Requirement)
Flammable Materials Warning: If this pressure tank is used for spraying flammable materials, the operator must not pressurize the tank more than 15 PSI to meet OSHA requirements for non-ASME pressure vessels.
- Max tank pressure: 80 PSI. Do not adjust the safety relief valve. If it vents air, reduce the air inlet regulator setting.
- Do not alter the tank by welding, drilling, or machining.
- Always ground the tank with a 12 ga. wire to a known earth ground to prevent static sparks.
- Relieve tank pressure completely before removing the cover or material fill cap. Shut off air supply and vent pressure using the vent valve on the lid.
Shop These Tank Configurations
- 51-560 — 10 Gallon Bottom Outlet Pressure Tank (No Regulation)
- 51-561 — 10 Gallon Bottom Outlet Pressure Tank (Single Regulated)
- 51-562 — 10 Gallon Bottom Outlet Pressure Tank (Double Regulated)
Order Replacement Parts (Click Part Numbers)
Below are the parts listed in the manual. Click any part number to open the matching product page on CET Store.
| Item | Part Number | Description |
|---|---|---|
| 1 | 51-579 | Tank Shell |
| 2 | 51-577 | Tank Lid Assembly |
| 3 | 51-520 | Gasket |
| 4 | 52-58 | Pressure Gauge |
| 5 | 51-229 | Safety Relief Valve Assembly |
| 6 | 51-535 | Guard |
| 7 | 51-245 | Seal Ring |
| 8 | 51-533 | Tank Lid Plug |
| 9 | 51-522 | Seal Ring (Filler Cap) |
| 10 | 51-524 | Material Fill Cap |
| 11 | 51-234 | Tank Vent Valve |
| 12 | 98-0115 | Nut |
| 13 | 51-215 | Air Hose Assembly |
| 14 | 52-150 | Air Shut-Off Valve |
| 15 | 51-272 | Bar Stock Tee |
| 16 | 51-239 | Double Male Nipple |
| 17 | 51-222 | Optional 2nd Regulator (No Regulation Models) |
| 18 | 52-6 | Regulator |
| 19 | 51-237 | Air Flow Diffuser |
| 20 | 51-233 | Pin Assembly |
| 21 | 51-236 | Eye Bolt Assembly |
| 22 | 51-224 | Caster (4 Req'd) |
| — | 51-252 | Optional Stationary Feet (4 Req'd) |
| 23 | 51-275 | Fluid Outlet Elbow |
| 24 | 51-274 | Fluid Outlet Nipple |
| 25 | 51-225 | Wrench |
