C.A. Technologies CPR-G Gravity Feed Spray Gun Product Information Manual
This page provides the official product information and parts manual for the C.A. Technologies CPR-G Gravity Feed Spray Gun. The CPR-G comes equipped with both a pressure reduced air cap (23-2101) and an HVLP air cap (23-1301) for areas requiring HVLP compliance. Use this manual to review air cap and fluid nozzle specifications, identify replacement parts, and order genuine CET components directly.
Models Covered: CPR-G (Standard) • CPR-G-PPS (PPS Cup) • EP-CPR-G (Entry-level Package)
Air Caps Included: 23-2101 Pressure Reduced (11 CFM @ 29 PSI) • 23-1301 HVLP (13.5 CFM @ 29 PSI)
Download the PDF Parts Manual
Air Cap & Fluid Nozzle Specifications
| Air Cap | Type | Fluid Tip Range | Max Gun Inlet Press. | SCFM |
|---|---|---|---|---|
| 23-2101 | CPR (Pressure Reduced) | 0.8 – 1.7 mm | 29 PSI* | 11 |
| 23-1301 | HVLP | 0.8 – 2.2 mm | 29 PSI* | 13.5 |
*Gun inlet pressures may vary as required by application. Air cap test gages are available to confirm HVLP compliance.
Available Fluid Nozzles (Click Part Numbers to Order)
| Part No. | Orifice Size | Compatible Air Caps | Needle |
|---|---|---|---|
| 33-0208 | 0.8 mm (.022") | 2101, 1301 | 40-1308 (308) |
| 33-0210 | 1.0 mm (.040") | 2101, 1301 | 40-1310 (310) |
| 33-0212 | 1.2 mm (.046") | 2101, 1301 | 40-1312 (312) |
| 33-0213 | 1.3 mm (.052") | 2101, 1301 | 40-1313 (313) |
| 33-0214 | 1.4 mm (.055") | 2101, 1301 | 40-1314 (314) |
| 33-0215 | 1.5 mm (.059") | 2101, 1301 | 40-1315 (315) |
| 33-0217 | 1.7 mm (.070") | 2101, 1301 | 40-1317 (317) |
| 33-0219 | 1.9 mm (.075") | 1301 only | 40-1319 (319) |
| 33-0222 | 2.2 mm (.086") | 1301 only | 40-1322 (322) |

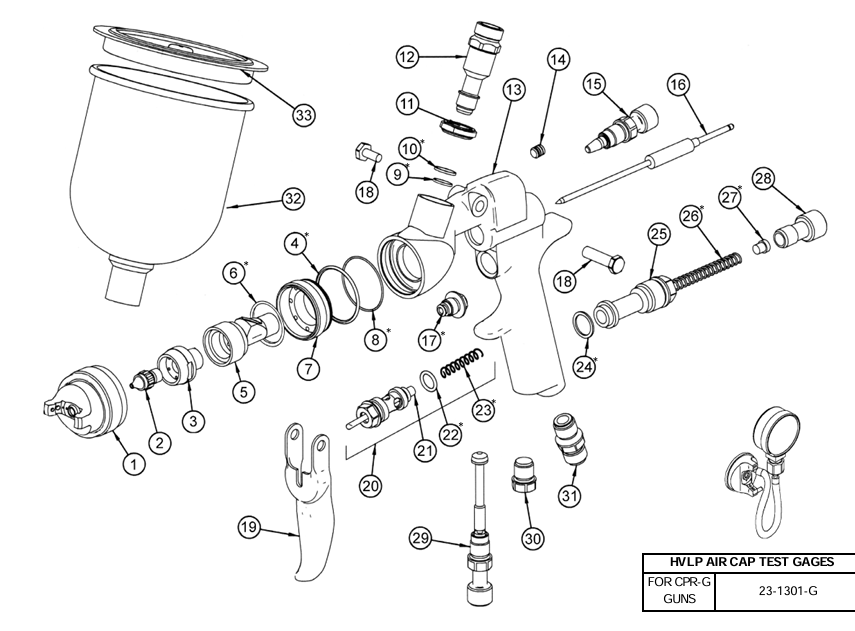

Order Replacement Parts (Click Part Numbers)
Below are all parts listed in the manual. Click any part number to open the matching product page on CET Store. Only part numbers with verified embedded PDF hyperlinks are linked below. Parts marked with * are included in repair kit 10-105.
| Item | Part No. | Description |
|---|---|---|
| 1 | See Air Cap Chart | Air Cap |
| 2 | See Air Cap Chart | Fluid Tip |
| 3 | 33-1202 | Fluid Nozzle Body |
| 4 | 98-8026 | O-Ring* |
| 5 | 60-J31H | Nozzle Body Carrier |
| 6 | 60-123 | Seal* |
| 7 | 60-34H | Air Cap Adapter |
| 8 | 60-131 | O-Ring* |
| 9 | 60-124 | Seal* |
| 10 | 60-130 | Seal* |
| 11 | 60-118 | Locknut |
| 12 | 60-127 | Fluid Inlet |
| 13 | 60-1119-CPR | CPR-Gravity Gun Body |
| 14 | 98-0109 | Allen Plug |
| 15 | See Air Cap Chart | Fan Control Assembly |
| 16 | See Air Cap Chart | Fluid Needle |
| 17 | 60-1400 | Needle Seal* |
| 18 | 60-1033 | Trigger Pivot Set |
| 19 | 60-2101 | Trigger |
| 20 | 60-1520 | Air Valve Assembly |
| 21 | 60-302 | Air Valve Poppet |
| 22 | 60-125 | Seal* |
| 23 | 61-1003 | Air Valve Spring* |
| 24 | 60-119 | Seal* |
| 25 | 60-201 | Rear Bushing |
| 26 | 60-204 | Needle Return Spring* |
| 27 | 60-205 | Spring Seat* |
| 28 | 60-202 | Fluid Control Knob* |
| 29 | 60-1510 | Inlet Air Control (Optional) |
| 30 | 60-122 | Plug |
| 31 | 60-104 | Air Inlet Fitting |
| 32 | 51-401 | Standard 700 mL Gravity Feed Cup (Aluminum) |
| 32 | 51-400 | Optional 700 mL Gravity Feed Cup (Plastic) |
| 32 | 51-403 | Optional 1000 mL Gravity Feed Cup (Aluminum) |
| 33 | 51-418 | Gravity Cup Lid (401 & 403) |
| 33 | 51-413 | Gravity Cup Lid (400) |
Repair Kit: Parts marked with * are included in repair kit 10-105. Have this kit available before gun disassembly.
Deterministic linking: Every hyperlink above is taken directly from the PDF's embedded annotation layer. Any part without an embedded PDF link is plain text.
Package Contents by Configuration
| Part No. | Description | CPR-G | CPR-G-PPS | EP-CPR-G | EP-CPR-G-PPS |
|---|---|---|---|---|---|
| 51-401 | 700 mL Aluminum Gravity Cup | ✓ | — | ✓ | — |
| 91-465 | 650 mL PPS™ Cup and Collar | — | ✓ | — | ✓ |
| 91-466 | Lids and Liners (50 Pack) | — | ✓ | — | ✓ |
| 91-474 | #2 PPS Adapter | — | ✓ | — | ✓ |
| 52-300 | Mini Regulator | ✓ | ✓ | — | — |
| 98-0104 | 3/8" Socket | ✓ | ✓ | ✓ | ✓ |
| 98-0112 | Ratchet Wrench | ✓ | ✓ | ✓ | ✓ |
| 60-8001 | Gun Wrench | ✓ | ✓ | ✓ | ✓ |
| 98-0113 | Gun Cleaning Brush | ✓ | ✓ | ✓ | ✓ |
| 51-430 | Gravity Gun Hook | ✓ | — | — | — |
Need Help Identifying a Part?
If you're unsure which fluid nozzle, air cap, or replacement part you need for your CPR-G spray gun, contact CET with your model number and item number from the diagram. We'll help confirm compatibility before you order.
