C.A. Technologies CPR Pressure Feed Spray Gun Parts Manual
This page provides the official parts manual for the C.A. Technologies CPR Pressure Feed Spray Gun. Use this page to review air cap and fluid tip combinations, identify replacement parts, and order genuine components.
Model Covered: C.A. Technologies CPR
Gun Specs: Pressure feed spray gun • pressure reduced and HVLP air cap options • max gun inlet pressure for HVLP: 29 PSI • fan control: 60-1504 (S) • air consumption: 11 CFM with 23-2101 / 13.5 CFM with 23-1301
Download the PDF Parts Manual
Download Full CPR Parts Manual (PDF)
About the CPR Spray Gun
The CPR gun comes equipped with both a pressure reduced air cap and an HVLP air cap for shops that need flexibility across different coating applications and compliance requirements.
- 23-2101 is the pressure reduced air cap and consumes 11 CFM at 29 PSI gun inlet
- 23-1301 is the HVLP air cap and consumes 13.5 CFM at 29 PSI gun inlet
- 23-2101 pressure reduced air caps can be used with 0.8 mm to 1.7 mm fluid orifices
- 23-1301 HVLP air caps can be used with the full range of 0.8 mm to 2.2 mm fluid orifices
Actual fluid nozzle and air cap combinations are determined by the application. Gun inlet pressures may vary as required by the material and setup.
Operation & Maintenance Notes
- Connect the air supply hose at the handle of the gun.
- Connect a pressurized fluid supply to the gun fluid inlet.
- Use the fluid control knob to fine tune flow rate by limiting needle travel.
- Adjust fan width with the fan control knob. Turning clockwise narrows the fan.
- Routine cleaning and maintenance are essential for proper gun performance.
- Have repair kit 10-106 available before gun disassembly.
Available Spray Gun Configurations
- CPR — Smart Pack
- CPR-303R2 — CAT Pack with 51-303 Aluminum Pressure Cup
- CPR-PPSR2 — CAT Pack with PPS Cup Setup
Air Cap / Fluid Tip / Needle Chart
| Pressure Reduced Air Cap | HVLP Air Cap | Orifice Size | Fluid Tip Part Number | Fluid Needle Part Number | Standard in CAT Pack |
|---|---|---|---|---|---|
| 23-2101 | 23-1301 | 0.8 mm | 33-0208 | 40-1308 | Included |
| 23-2101 | 23-1301 | 1.0 mm | 33-0210 | 40-1310 | |
| 23-2101 | 23-1301 | 1.2 mm | 33-0212 | 40-1312 | |
| 23-2101 | 23-1301 | 1.3 mm | 33-0213 | 40-1313 | Included |
| 23-2101 | 23-1301 | 1.4 mm | 33-0214 | 40-1314 | |
| 23-2101 | 23-1301 | 1.5 mm | 33-0215 | 40-1315 | |
| 23-2101 | 23-1301 | 1.7 mm | 33-0217 | 40-1317 | Included |
| 23-2101 | 23-1301 | 1.9 mm | 33-0219 | 40-1319 | |
| 23-2101 | 23-1301 | 2.2 mm | 33-0222 | 40-1322 |
Recommended Fluid Nozzle / Air Cap Selection
| Material Type | Typical Materials | Recommended Setup | Maximum Pattern Width | CFM |
|---|---|---|---|---|
| Very Thin | Inks, dyes, solvents, stains | 0.8 mm x 2101 or 1301 1.0 mm x 2101 or 1301 |
23-2101 13" 23-1301 12" |
23-2101 11 CFM 23-1301 13.5 CFM |
| Thin | Lacquers, enamels, primers, sealers | 1.2 mm x 2101 or 1301 1.3 mm x 2101 or 1301 |
23-2101 13" 23-1301 12" |
23-2101 11 CFM 23-1301 13.5 CFM |
| Medium | Automotive base coat, enamels, primers, epoxies, urethanes, automotive clear coat | 1.3 mm x 2101 or 1301 1.4 mm x 2101 or 1301 1.5 mm x 2101 or 1301 1.7 mm x 2101 or 1301 |
23-2101 13" 23-1301 12" |
23-2101 11 CFM 23-1301 13.5 CFM |
| Heavy | Heavy body primers, high solid enamels, high solid automotive coatings, adhesives | 1.7 mm x 2101 or 1301 1.9 mm x 1301 2.2 mm x 1301 |
23-2101 13" 23-1301 12" |
23-2101 11 CFM 23-1301 13.5 CFM |

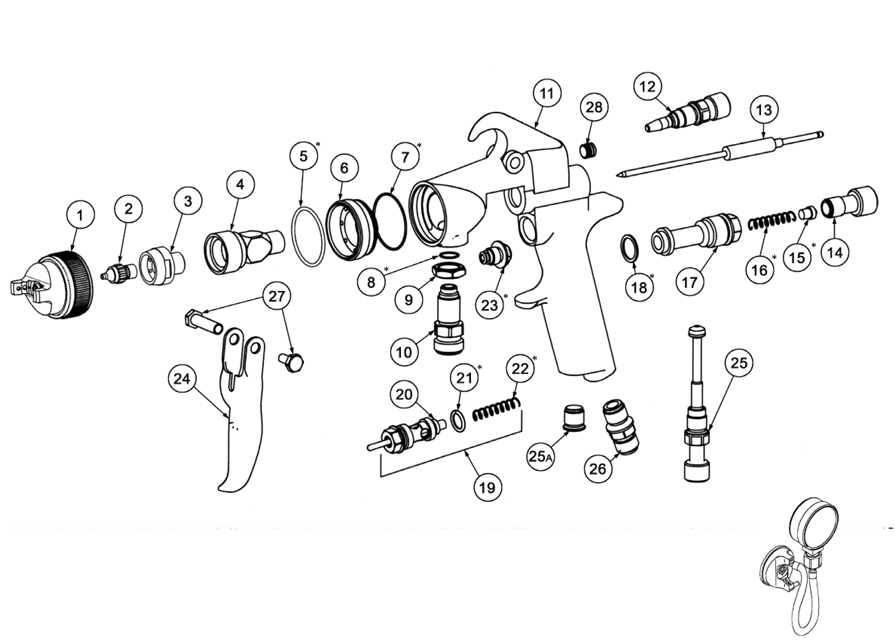

Replacement Parts Breakdown
| Item | Part Number | Description |
|---|---|---|
| 1 | See Air Cap Chart | Air Cap |
| 2 | See Air Cap Chart | Fluid Nozzle Tip |
| 3 | 33-1202 | Fluid Nozzle Body |
| 4 | 60-L31H | Nozzle Carrier |
| 5 | 98-8026 | O-Ring |
| 6 | 60-34H | Air Cap Adapter |
| 7 | 60-131 | O-Ring |
| 8 | 60-124 | Fluid Inlet Seal |
| 9 | 60-128 | Locknut |
| 10 | 60-126 | Fluid Inlet Fitting |
| 11 | 60-1120-CPR | CPR Gun Body HVLP |
| 12 | See Air Cap Chart | Fan Control Assembly |
| 13 | See Air Cap Chart | Fluid Needle |
| 14 | 60-202 | Fluid Control Knob |
| 15 | 60-205 | Spring Seat |
| 16 | 60-204 | Needle Return Spring |
| 17 | 60-201 | Rear Bushing |
| 18 | 60-119 | Seal |
| 19 | 60-1520 | Air Valve Assembly |
| 20 | 60-302 | Air Valve Poppet |
| 21 | 60-125 | O-Ring |
| 22 | 61-1003 | Air Valve Spring |
| 23 | 60-1400 | Needle Seal Cartridge |
| 24 | 60-2101 | Trigger |
| 25 | 60-1510 | Air Control |
| 25A | 60-122 | Plug (optional) |
| 26 | 60-104 | Air Inlet Fitting |
| 27 | 60-1033 | Trigger Pivot Set |
| 28 | 98-0109 | Allen Plug |
HVLP Air Cap Test Gages
Included Packs & Accessories
Need Help Identifying a Part?
If you’re unsure which part you need for your C.A. Technologies CPR spray gun, use the part breakdown above or contact CET with your item number and spray gun configuration.
