C.A. Technologies 10 Gallon Non-ASME Air Agitated Bottom Outlet Pressure Tank Parts Manual (51-563 / 51-564 / 51-565)

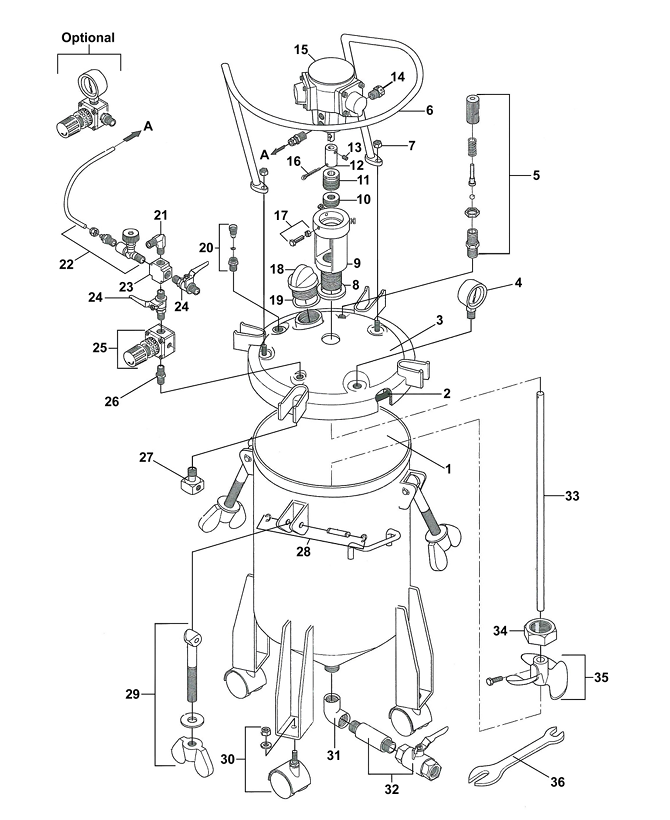

This page provides the official parts manual for the C.A. Technologies 10 Gallon (Non-ASME) Air Agitated Bottom Outlet Pressure Tank. Use this manual to view the parts diagram, confirm part numbers, and click through to order genuine replacement parts from CET.
Models Covered: 51-563 (Bottom Outlet, Air Agitated, No Regulator) • 51-564 (Bottom Outlet, Air Agitated, Single Regulated) • 51-565 (Bottom Outlet, Air Agitated, Double Regulated)
Note: These are 10 gallon tanks with air powered agitation and a bottom outlet. Use the parts list below to match item numbers to replacement parts.
Download the PDF Parts Manual
Important Safety Note (Non-ASME Requirement)
Flammable Materials Warning: If this pressure tank is used for spraying flammable materials, the operator must not pressurize the tank more than 15 PSI to meet OSHA requirements for non-ASME pressure vessels.
- Max tank pressure: 80 PSI. Do not adjust the safety relief valve. If it vents air, reduce the air inlet regulator setting.
- Do not alter the tank by welding, drilling, or machining.
- Always ground the tank with a 12 ga. wire to a known earth ground to prevent static sparks.
- Relieve tank pressure completely before removing the cover or material fill cap. Shut off air supply and vent pressure using the vent valve on the lid.
Shop These Tank Configurations
- 51-563 — 10 Gallon Bottom Outlet Pressure Tank (Air Agitated, No Regulator)
- 51-564 — 10 Gallon Bottom Outlet Pressure Tank (Air Agitated, Single Regulated)
- 51-565 — 10 Gallon Bottom Outlet Pressure Tank (Air Agitated, Double Regulated)
Order Replacement Parts (Click Part Numbers)
Below are the parts listed in the manual. Click any part number to open the matching product page on CET Store.
| Item | Part Number | Description |
|---|---|---|
| 1 | 51-579 | Tank Shell |
| 2 | 51-577 | Tank Lid Assembly |
| 3 | 51-520 | Gasket |
| 4 | 52-58 | Pressure Gauge |
| 5 | 51-229 | Safety Relief Valve Assembly |
| 6 | 51-535 | Guard |
| 7 | 51-245 | Seal Ring |
| 8 | 51-576 | Tank Lid Plug |
| 9 | 51-522 | Seal Ring (Filler Cap) |
| 10 | 51-524 | Material Fill Cap |
| 11 | 98-0115 | Nut |
| 12 | 51-222 | Air Hose Assembly |
| 13 | 52-150 | Air Shut-Off Valve |
| 14 | 52-6 | Regulator |
| 15 | 51-240 | Air Motor |
| 16 | 51-266 | Roll Pin |
| 17 | 51-264 | Screw & Nut |
| 18 | 51-242 | Coupling |
| 19 | 51-288 | Packing Nut |
| 20 | 51-289 | Packing Set |
| 21 | 51-287 | Motor Base |
| 22 | 51-262 | Set Screw |
| 23 | 51-271 | Muffler |
| 24 | 51-268 | Elbow |
| 25 | 51-247 | Speed Control |
| 26 | 51-267 | 4-Way Union Tee |
| 27 | 51-239 | Nipple |
| 28 | 51-237 | Air Flow Diffuser |
| 29 | 51-236 | Eye Bolt Assembly |
| 30 | 51-224 | Caster |
| — | 51-252 | Optional Stationary Feet |
| 31 | 51-275 | Fluid Outlet Elbow |
| 32 | 51-274 | Fluid Outlet Nipple |
| 33 | 51-233 | Pin Assembly |
| 34 | 51-225 | Wrench |
