C.A. Technologies 2.5 Gallon Stainless Steel Non-ASME Air Agitated Pressure Tank Parts Manual (51-803 / 51-804)
C.A. Technologies 2.5 Gallon Stainless Steel Non-ASME Air Agitated Pressure Tank Parts Manual (51-803 / 51-804)

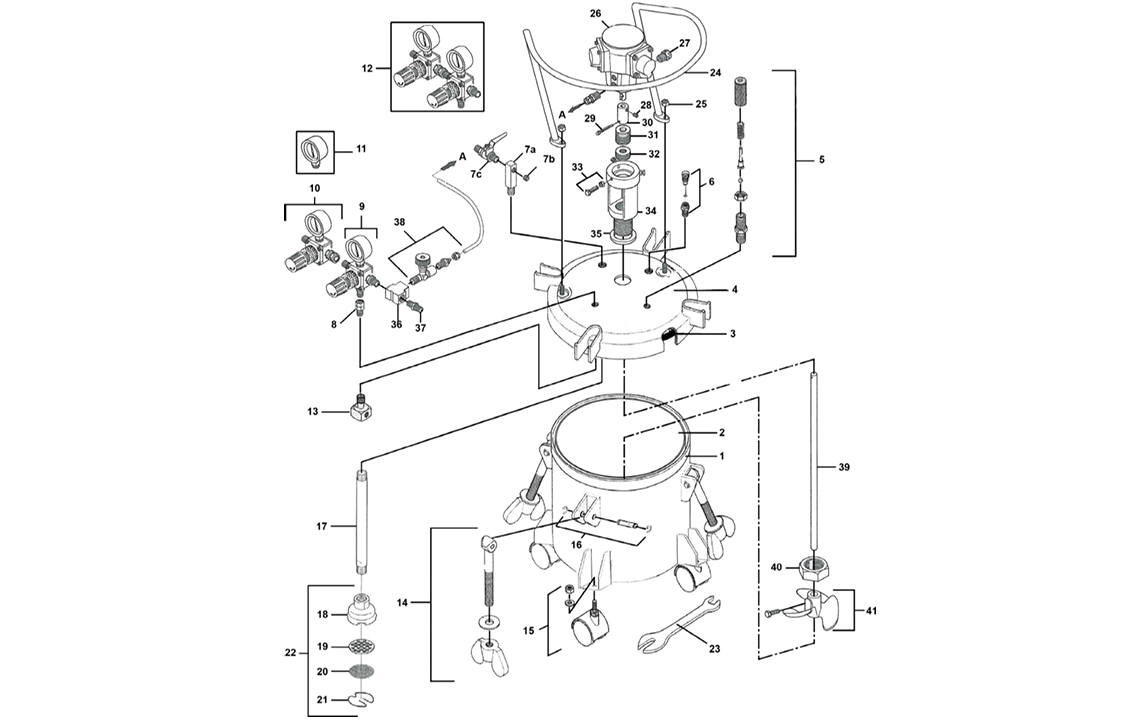

This page provides the official parts manual for the C.A. Technologies 2.5 Gallon Stainless Steel Non-ASME Air Agitated Pressure Tank. This all-stainless tank features single or double air pressure regulation, a pressure safety relief valve, tank vent valve, disposable plastic liner, four caster wheels, and an air powered agitator. Use this manual to view the parts diagram, confirm part numbers, and click through to order genuine replacement parts from CET.
Models Covered: 51-803 (Single Regulated, Air Agitated) • 51-804 (Double Regulated, Air Agitated)
Note: Single regulated models are supplied with item 9 (Fluid Regulator Assembly). Double regulated models are supplied with items 9 & 10 (Fluid and Atomizing Air Regulator Assemblies).
Download the PDF Parts Manual
Important Safety Notes (Non-ASME Requirement)
Flammable Materials Warning: If this pressure tank is used for spraying flammable materials, the operator must not pressurize the tank more than 15 PSI to meet OSHA requirements for non-ASME pressure vessels.
- Max tank pressure: 80 PSI. Do not adjust the safety relief valve. If it vents air, reduce the air inlet regulator setting.
- Do not alter the tank by welding, drilling, or machining.
- Always ground the tank with a 12 ga. wire to a known earth ground to prevent static sparks.
- Halogenated solvents (e.g. 111 trichlorethane, methylene chloride) will react chemically with aluminum and may cause an explosion. DO NOT use the removable aluminum tank liner with any halogenated solvents.
- Relieve tank pressure completely before removing the cover or material fill cap. Shut off air supply and vent pressure using the vent valve on the tank lid.
- Oilless motor: DO NOT OIL TANK MOTORS. The air motor used on CAT agitated tanks is oilless.
Order Replacement Parts (Click Part Numbers)
Below are all parts listed in the manual. Click any part number to open the matching product page on CET Store. Only part numbers with verified embedded PDF hyperlinks are linked below.
| Item | Part No. | Description |
|---|---|---|
| 1 | 51-226SS | Tank Shell |
| 2 | 51-261 | Disposable Rigid Liners (12 or 60 pk) |
| 2 | 51-231 | Disposable Bag Liners (10 pk) |
| 2 | 51-227 | Stainless Steel Tank Liner |
| 3 | 51-220 | Gasket |
| 4 | 51-228ASS | Tank Lid Assembly |
| 5 | 51-229 | Safety Relief Valve Assembly |
| 6 | 51-234 | Tank Vent Valve |
| 7a | 51-230SS | Material Outlet Valve |
| 7b | 98-0261 | SS Plug |
| 7c | 52-151SS | SS Ball Valve |
| 8 | 51-280 | Swivel Connection |
| 9 | 52-10A | Fluid Regulator Assembly (Single & Double Reg models) |
| 10 | 52-11A | Atomizing Air Regulator Assembly (Double Reg models only) |
| 11 | 52-58 | Pressure Gauge |
| 12 | 52-303 | Dual Regulator Assembly |
| 13 | 51-237 | Air Flow Diffuser |
| 14 | 51-236 | Eye Bolt Assembly |
| 15 | 51-224 | Caster (4 Req'd) |
| 15 | 51-252 | Optional Stationary Feet (4 Req'd) |
| 16 | 51-233 | Pin Assembly |
| 17 | 51-223SS | Fluid Pickup Tube |
| 18 | 51-256 | Inlet Strainer Body |
| 19 | 51-254 | Inlet Screen Backup Plate |
| 20 | 51-248 | Inlet Screen |
| 21 | 51-255 | Inlet Retainer Clip |
| 22 | 51-232 | Inlet Strainer Assembly |
| 23 | 51-225 | Wrench |
| 24 | 51-238SS | Guard |
| 25 | 98-0115 | Nut 3/8-16 |
| 26 | 51-240SS | Air Motor |
| 27 | 51-271 | Muffler |
| 28 | 51-262 | Set Screw 1/4-20 x 1" lg. |
| 29 | 51-266 | Roll Pin |
| 30 | 51-242 | Coupling |
| 31 | 51-288 | Guide |
| 32 | 51-289 | Shaft Seal Assembly |
| 33 | 51-264 | Screw & Nut 1/4-20 x 1/4 lg. |
| 34 | 51-287SS | Air Motor Base |
| 35 | 51-245 | Seal Ring |
| 36 | 51-272 | 3-Way Union |
| 37 | 51-239 | Double Male Nipple |
| 38 | 51-247 | Speed Valve Control Assembly |
| 39 | 51-258SS | Agitator Shaft |
| 40 | 51-259SS | Retaining Nut |
| 41 | 51-246 | Propeller W/Bolt |
Deterministic linking: Every hyperlink above is taken directly from the PDF's embedded annotation layer. Any part without an embedded PDF link is plain text.
Related Pressure Tank Manuals
From the "Pressure Tanks Available From C.A. Technologies" section embedded in the PDF:
2.5 Gallon
- 51-201 — 2.5 Gallon Pressure Tank (Single Regulated, No Agitation)
- 51-202 — 2.5 Gallon Pressure Tank (Double Regulated, No Agitation)
- 51-203 — 2.5 Gallon Pressure Tank (Single Regulated, Air Agitated)
- 51-204 — 2.5 Gallon Pressure Tank (Double Regulated, Air Agitated)
5 Gallon
- 51-507 — 5 Gallon Pressure Tank (Single Regulated, No Agitation)
- 51-508 — 5 Gallon Pressure Tank (Double Regulated, No Agitation)
- 51-501 — 5 Gallon Pressure Tank (Single Regulated, Manual Agitation)
- 51-502 — 5 Gallon Pressure Tank (Double Regulated, Manual Agitation)
- 51-503 — 5 Gallon Pressure Tank (Single Regulated, Air Agitated)
- 51-504 — 5 Gallon Pressure Tank (Double Regulated, Air Agitated)
10 Gallon
- 51-551 — 10 Gallon Pressure Tank (Single Regulated, No Agitation)
- 51-552 — 10 Gallon Pressure Tank (Double Regulated, No Agitation)
- 51-557 — 10 Gallon Pressure Tank (Single Regulated, Manual Agitation)
- 51-558 — 10 Gallon Pressure Tank (Double Regulated, Manual Agitation)
- 51-553 — 10 Gallon Pressure Tank (Single Regulated, Air Agitated)
- 51-554 — 10 Gallon Pressure Tank (Double Regulated, Air Agitated)
Need Help Identifying a Part?
If you're unsure which part you need for your 51-803 or 51-804 stainless steel tank, contact CET with your model number and item number from the diagram. We'll help confirm compatibility before you order.
