CET CAT-Xpress Pressure Feed Spray Gun Parts Manual
This page provides the official parts manual for the CET CAT-Xpress Pressure Feed Spray Gun. Use this page to review air cap and fluid tip combinations, identify replacement parts, and order genuine components.
Model Covered: CAT-Xpress (CAT-XPR)
Gun Specs: Pressure feed spray gun • HVLP and pressure reduced air cap options • 9 CFM air consumption • 26 PSI HVLP / 29 PSI pressure reduced • Fluid tip range: 0.8 mm – 2.2 mm
Download the PDF Parts Manual
Download Full CAT-Xpress Parts Manual (PDF)
About the CAT-Xpress Spray Gun
The CAT-Xpress spray gun offers both a pressure reduced air cap and an HVLP air cap for shops that need flexibility across different coating applications and compliance requirements.
- 2403218 and 2403224 are pressure reduced air caps and consume 9 CFM at 29 PSI gun inlet
- 2403233 and 2403235 are HVLP air caps and consume 9 CFM at 26 PSI gun inlet
- 2403218 / 2403233 can be used with 0.8 mm to 1.8 mm orifices
- 2403224 / 2403235 can be used with 2.0 mm to 2.2 mm orifices
Actual fluid nozzle and air cap combinations are determined by the application. Gun inlet pressures may vary as required by the material and setup.
Operation & Maintenance Notes
- Connect the air supply hose at the handle of the gun.
- Connect a pressurized fluid supply to the gun fluid inlet.
- Use the fluid control knob to fine tune flow rate by limiting needle travel.
- Adjust fan width with the fan control knob. Turning clockwise narrows the fan.
- Routine cleaning and maintenance are essential for proper gun performance.
- Have repair kit 2411779 available before gun disassembly.
Available Spray Gun Configurations
- CAT-XPR — Smart Pack
- CAT-XPR-303R2 — CAT Pack with 51-303-R2 Aluminum Cup
- CAT-XPR-PPSR2 — CAT Pack with PPS Cup Setup
Air Cap / Fluid Tip / Needle Chart
| Pressure Reduced Air Cap | HVLP Air Cap | Orifice Size | Fluid Tip Part Number | Fluid Needle Part Number |
|---|---|---|---|---|
| 2403218 | 2403233 | 0.8 mm | 2404488 | 2397054 |
| 2403218 | 2403233 | 1.0 mm | 2404489 | 2397055 |
| 2403218 | 2403233 | 1.2 mm | 2404491 | 2397056 |
| 2403218 | 2403233 | 1.3 mm | 2412850 | 2412848 |
| 2403218 | 2403233 | 1.4 mm | 2397074 | 2397057 |
| 2403218 | 2403233 | 1.5 mm | 2404492 | 2397058 |
| 2403218 | 2403233 | 1.8 mm | 2404493 | 2397059 |
| 2403224 | 2403235 | 2.0 mm | 2404494 | 2397060 |
| 2403224 | 2403235 | 2.2 mm | 2404495 | 2397061 |
Recommended Fluid Nozzle / Air Cap Selection
| Material Type | Typical Materials | Recommended Setup | Maximum Pattern Width | CFM |
|---|---|---|---|---|
| Very Thin | Inks, dyes, solvents, stains | 0.8 mm x 2403218 or 2403233 1.0 mm x 2403218 or 2403233 |
2403218 13" 2403233 12" |
2403218 9 CFM 2403233 9 CFM |
| Thin | Lacquers, enamels, primers, sealers | 1.2 mm x 2403218 or 2403233 1.3 mm x 2403218 or 2403233 |
2403218 13" 2403233 12" |
2403218 9 CFM 2403233 9 CFM |
| Medium | Automotive base coat, enamels, primers, epoxies, urethanes, automotive clear coat | 1.2 mm x 2403218 or 2403233 1.3 mm x 2403218 or 2403233 1.5 mm x 2403218 or 2403233 1.8 mm x 2403218 or 2403233 |
2403218 13" 2403233 12" |
2403218 9 CFM 2403233 9 CFM |
| Heavy | Heavy body primers, high solid enamels, high solid automotive coatings, adhesives | 1.8 mm x 2403224 or 2403235 2.0 mm x 2403224 or 2403235 2.2 mm x 2403224 or 2403235 2.5 mm x 2403224 or 2403235 |
2403224 13" 2403235 12" |
2403224 9 CFM 2403235 9 CFM |

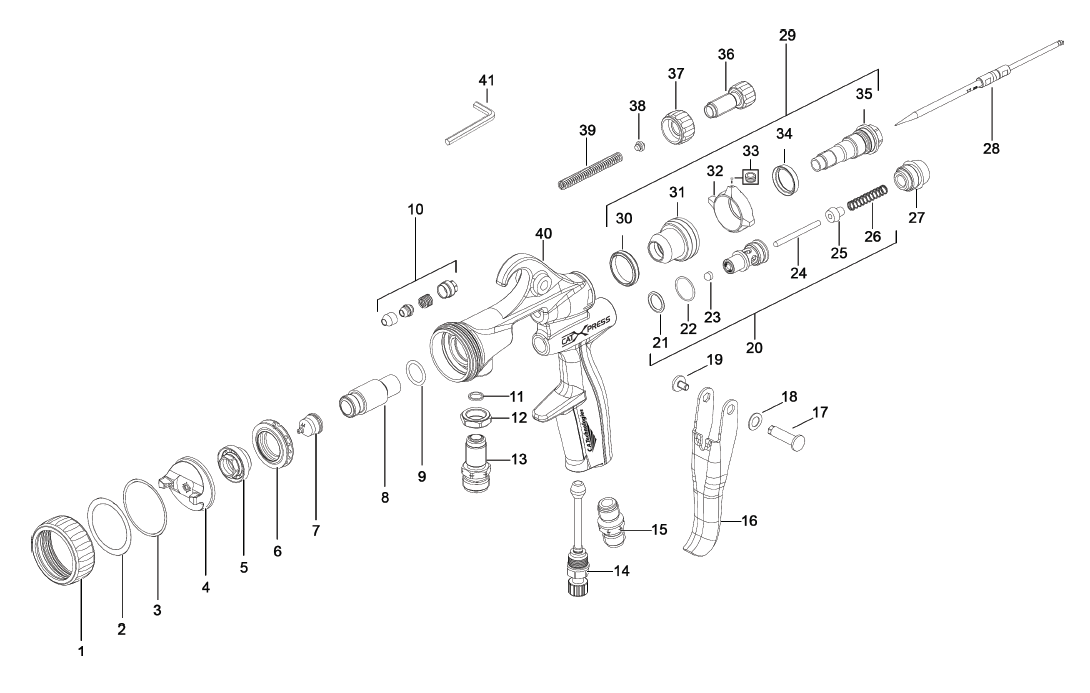

Replacement Parts Breakdown (Click Part Numbers)
| Item | Part Number | Description |
|---|---|---|
| 1 | 2400154 | Air Cap Ring |
| 2 | V2070005300 | Air Cap Sealing Ring |
| 3 | V2070005200 | O-Ring |
| 4 | See Air Cap Chart (Pg1) | Air Cap |
| 5 | 2394821 | Nozzle Body |
| 6 | 2394820 | Air Baffle |
| 7 | See Nozzle Chart (Pg1) | Fluid Nozzle |
| 8 | 2396024 | Fluid Nozzle Body Carrier |
| 9 | 98-8014 | O-Ring |
| 10 | 2400771 | Needle Packing Assembly |
| 11 | 2396026 | Fluid Inlet Sealing Ring |
| 12 | 60-128 | Lock Nut |
| 13 | 2396785 | Fluid Inlet |
| 14 | 60-1319 | Air Control Knob |
| 15 | 60-104 | Air Inlet |
| 16 | 2396021 | Trigger |
| 17 | 2396019 | Trigger Pin |
| 18 | V1070111100 | Spring Washer |
| 19 | V1030109000 | Trigger Screw |
| 20 | 2400772 | Air Valve (Complete) |
| 21 | 98-8012 | O-Ring |
| 22 | 98-5125 | O-Ring |
| 23 | 2396036 | Air Valve Stem Cap |
| 24 | 60-1371 | Air Valve Stem |
| 25 | 61-1032 | Air Valve Poppet |
| 26 | 61-1003 | Air Valve Spring |
| 27 | 60-1375 | Rear Cap |
| 28 | See Needle Chart (Pg1) | Fluid Needle |
| 29 | 2403453 | Fan Control Assembly |
| 30 | 2396032 | Fan Control Rod Seal |
| 31 | 2403413 | Fan Adjustment Housing |
| 32 | 2403416 | Fan Adjustment Knob |
| 33 | 2403429 | Fan Adjustment Knob Screw |
| 34 | 2316489 | Fan Control Seal |
| 35 | 2403412 | Fan Control Sleeve |
| 36 | 2396038 | Fluid Adjustment Knob |
| 37 | 2396039 | Fluid Adjustment Lock Nut |
| 38 | 2396035 | Needle Spring Guide |
| 39 | 2396050 | Needle Spring |
| 40 | 2410599 | Gun Body |
| 41 | 2412114 | 1/16” Allen Wrench for #33 |
Included Packs & Accessories
- CAT-XPR Includes:
- CAT-Xpress
- Air Caps
- Nozzle/Needle Sets
- 60-8002 Gun Wrench
- 98-0113 Gun Cleaning Brush
- 2412114 Allen Wrench (1/16”)
- CAT-XPR-303R2 Includes:
- CAT-Xpress
- Air Caps
- Nozzle/Needle Sets
- 51-303-R2 1 QT Aluminum Cup
- 52-5R2 Regulator
- 60-8002 Gun Wrench
- 98-0113 Gun Cleaning Brush
- 2412114 Allen Wrench (1/16”)
- CAT-XPR-PPSR2 Includes:
- CAT-Xpress
- Air Caps
- Nozzle/Needle Sets
- CA91-560 850 mL PPS™ Pressure Cup
- CA91-562 Lids and Liners (Available in 25 Pack)
- CA91-575 #18 PPS Adapter
- 52-5R2 Regulator
- 60-8002 Gun Wrench
- 98-0113 Gun Cleaning Brush
- 2412114 Allen Wrench (1/16”)
Need Help Identifying a Part?
If you’re unsure which part you need for your CAT-Xpress spray gun, use the part breakdown above or contact CET with your item number and spray gun configuration.
