CAT SLP HVLP Pressure Feed Spray Gun Parts Manual
This page provides the official parts manual for the CAT SLP HVLP Pressure Feed Spray Gun. Use this manual to view the parts diagram, confirm part numbers, review nozzle and air cap combinations, and click through to order genuine replacement parts from CET.
Model Covered: CAT SLP (CSLP) HVLP Pressure Feed Spray Gun
Gun Specs: HVLP pressure feed configuration • max gun inlet pressure for HVLP: 29 PSI • fan control: 60-1504 (S) • air consumption: 13.5 SCFM
Download the PDF Parts Manual
About the CAT SLP Gun
The CAT SLP is a HVLP pressure feed spray gun with a range of available air caps, fluid nozzles, and needles for very thin through heavy materials. Actual fluid nozzle and air cap combinations are determined by the application chart in the manual.
- Pressure feed only
- HVLP compliant with test gages available
- Adjustable fan control
- Supports materials ranging from inks, dyes, and stains to heavy body primers, high solids, and adhesives
Operation & Maintenance Notes
Important: Routine cleaning and maintenance are essential to ensure proper gun operation.
- Connect the air supply hose at the handle of the gun.
- Connect a pressurized fluid supply to the gun fluid inlet.
- Control fluid flow with the fluid control knob by limiting needle travel.
- Adjust fan width with the fan control knob. Turning it clockwise narrows the fan.
- Clean the gun using a covered gun cleaner when required by state regulations.
- For pressure setups, connect a pressurized solvent supply to the fluid inlet and trigger solvent through the gun until clean.
- Gun head disassembly is not recommended for normal cleaning and maintenance.
- Have repair kit 10-106 available before gun disassembly.
Shop These Gun Configurations
- CP-CSLP — Smart Pack
- CP-CSLP-303R2 — CAT Pack with 51-303 Pressure Cup
- CP-CSLP-PPSR2 — CAT Pack with PPS Pressure Cup and Regulator
HVLP Air Cap / Fluid Nozzle / Needle Chart
Below are the air caps, matching fluid nozzles, and needles listed in the manual. Only part numbers with embedded PDF hyperlinks are linked below.
| Air Cap | Feed Type | Standard In CAT Pack | Fluid Nozzle | Size | Needle |
|---|---|---|---|---|---|
| 23-1308 | Pressure | Included | 33-0208 | 0.8mm (.022") | 40-1308 (308) |
| 23-1310 | Pressure | 33-0210 | 1.0mm (.040") | 40-1310 (310) | |
| 23-1312 | Pressure | 33-0212 | 1.2mm (.046") | 40-1312 (312) | |
| 23-1313 | Pressure | Included | 33-0213 | 1.3mm (.052") | 40-1313 (313) |
| 23-1314 | Pressure | 33-0214 | 1.4mm (.055") | 40-1314 (314) | |
| 23-1315 | Pressure | 33-0215 | 1.5mm (.059") | 40-1315 (315) | |
| 23-1317 | Pressure | Included | 33-0217 | 1.7mm (.070") | 40-1317 (317) |
| 23-1319 | Pressure | 33-0219 | 1.9mm (.075") | 40-1319 (319) | |
| 23-1322 | Pressure | 33-0222 | 2.2mm (.086") | 40-1322 (322) |
Recommended Fluid Nozzle / Air Cap Selection
| Material Type | Typical Materials | Recommended Setup | Pattern Width | Feed |
|---|---|---|---|---|
| Very Thin less than 16 sec. Zahn #2 |
Inks, dyes, solvents, stains | 1.0 mm x 1310 | 12 | P |
| Thin 16 to 20 sec. Zahn #2 |
Lacquers, enamels, primers, sealers | 1.0 mm x 1310 1.3 mm x 1313 |
12 12 |
P P |
| Medium 21 to 30 sec. Zahn #2 |
Automotive base coat, enamels, primers, epoxies, urethanes, automotive clear coat | 1.3 mm x 1313 1.5 mm x 1315 1.7 mm x 1317 |
12 12 12 |
P P P |
| Heavy over 30 sec. Zahn #2 |
Heavy body primers, high solid enamels, high solid automotive coatings, adhesives | 1.5 mm x 1315 1.7 mm x 1317 1.9 mm x 1319 2.2 mm x 1322 |
12 12 12 12 |
P P P P |

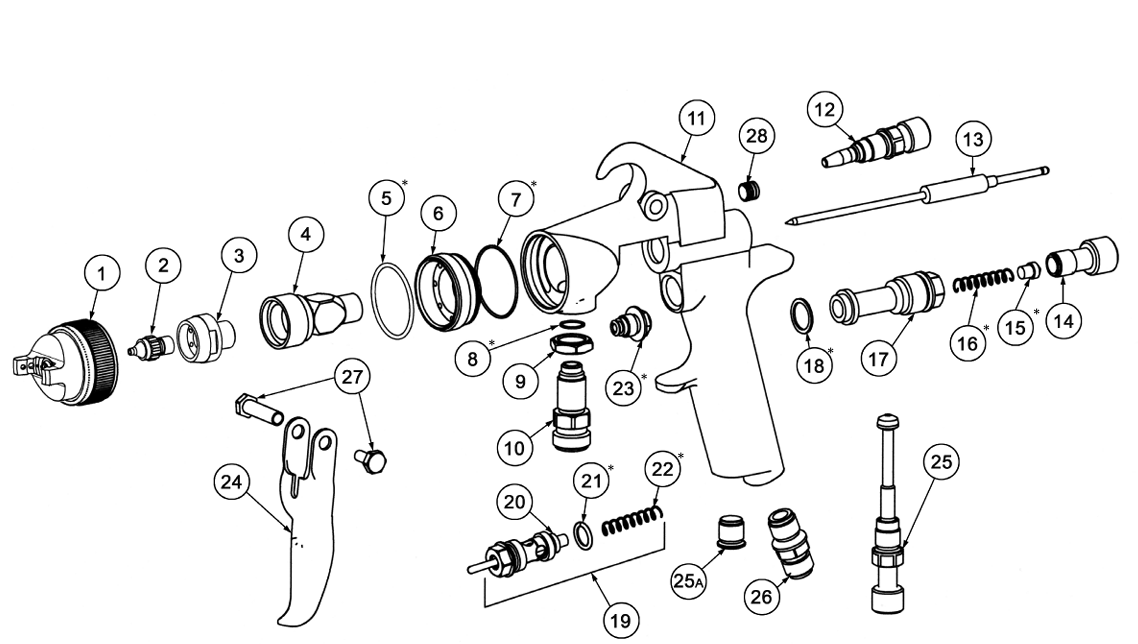

Order Replacement Parts (Click Part Numbers)
Below are the parts listed in the manual. Click any part number to open the matching product page on CET Store. Only part numbers with embedded PDF hyperlinks are linked below.
| Item | Part Number | Description |
|---|---|---|
| 1 | See Air Cap Chart | Air Cap** |
| 2 | See Air Cap Chart | Fluid Nozzle Tip** |
| 3 | 33-1202 | Fluid Nozzle Body |
| 4 | 60-L31H | Nozzle Carrier |
| 5 | 98-8026 | O-Ring* |
| 6 | 60-34H | Air Cap Adapter |
| 7 | 60-131 | O-Ring* |
| 8 | 60-124 | Fluid Inlet Seal* |
| 9 | 60-128 | Locknut |
| 10 | 60-126 | Fluid Inlet Fitting |
| 11 | 60-1120 | CAT SLP Gun Body HVLP |
| 12 | See Air Cap Chart | Fan Control Assembly** |
| 13 | See Air Cap Chart | Fluid Needle** |
| 14 | 60-202 | Fluid Control Knob |
| 15 | 60-205 | Spring Seat* |
| 16 | 60-204 | Needle Return Spring* |
| 17 | 60-201 | Rear Bushing |
| 18 | 60-119 | Seal* |
| 19 | 60-1520 | Air Valve Assembly |
| 20 | 60-302 | Air Valve Poppet |
| 21 | 60-125 | O-Ring* |
| 22 | 61-1003 | Air Valve Spring* |
| 23 | 60-1400 | Needle Seal Cartridge* |
| 24 | 60-2101 | Trigger |
| 25 | 60-1510 | Air Control |
| 25A | 60-122 | Plug (optional) |
| 26 | 60-104 | Air Inlet Fitting |
| 27 | 60-1033 | Trigger Pivot Set |
| 28 | 98-0109 | Allen Plug |
HVLP Air Cap Test Gages
- 23-1308-G
- 23-1310-G
- 23-1312-G
- 23-1313-G
- 23-1314-G
- 23-1315-G
- 23-1317-G
- 23-1319-G
- 23-1322-G
Included Packs & Accessories
- CP-CSLP Smart Pack Includes:
- CP-CSLP-303R2 Includes:
- CP-CSLP-PPSR2 Includes:
CSLP Nozzle Kits
- JK1308
- JK1310
- JK1312
- JK1313
- JK1314
- JK1315
- JK1317
- JK1319
- JK1322
Need Help Identifying a Part?
If you’re unsure which part you need for your CAT SLP spray gun, contact CET with your model number and item number from the diagram. We’ll help confirm compatibility before you order.
