Binks Airless 75 Manual Spray Gun

(Showing 3 of 3)

Click Here to Download Manual

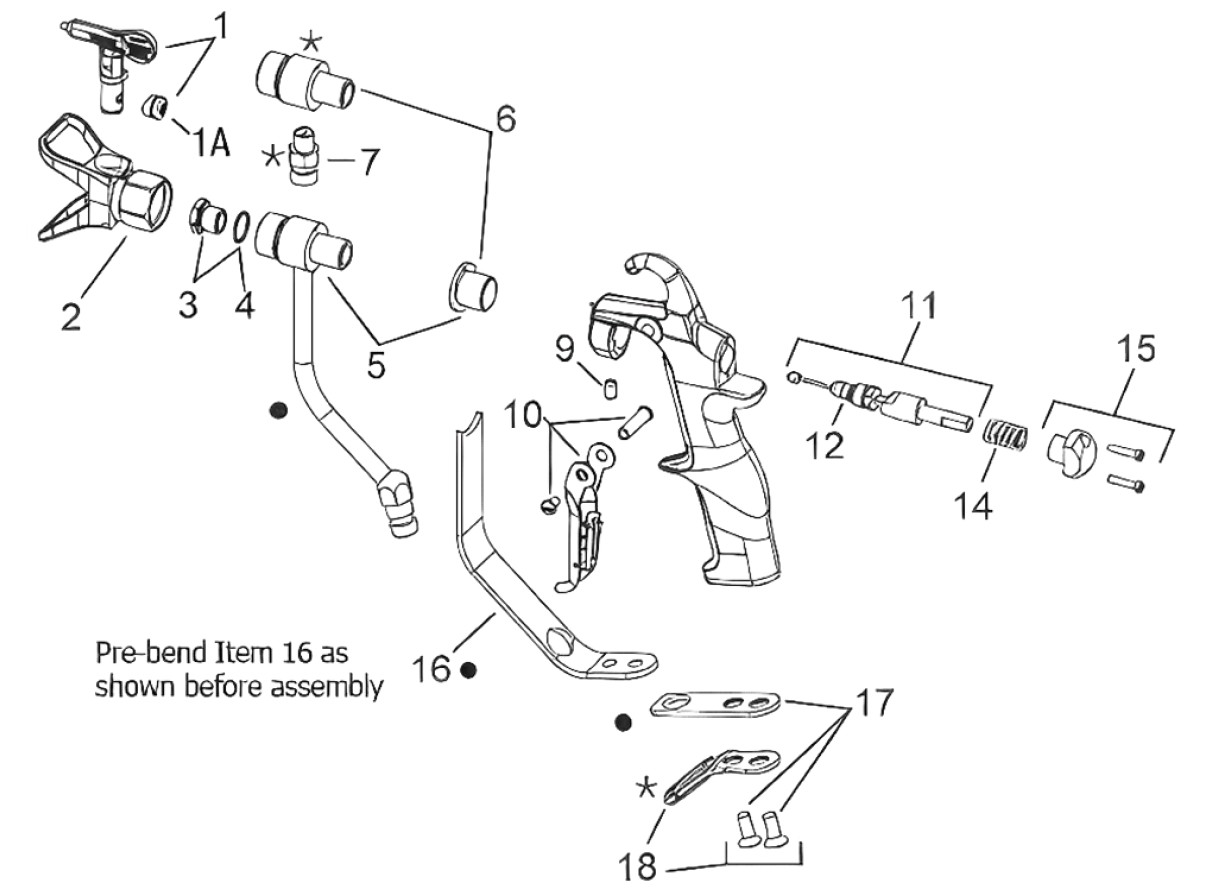

Item No. Part No. Description
1 NA Twist Tip 7500, PSI
1A 54-7539-K2 Twist Tip Brace Kit
2 1108-75B 7500 PSI Twist Tip Guard
3A 54-7511-K Diffuser Nut Kit (0811-7500-1, 0811-7500-2)
3B 54-7537-K Diffuser Nut Kit (0811-7500-3)
4 54-2096-K5 Washer, Kit of 5
5 54-7518-K Fluid Tube Assy. Kit (0811-7500-1)
6 54-7523-K Gun Head Kit (0811-7500-2, 0811-7500-3)
7 72-792 Inlet Adapter (0811-7500-2, 0811-7500-3)
9 20-5865-K3 Set Screw (Kit of 3)
10 54-7534-K Trigger Kit
11 54-7512 Needle Assy.
12 54-2949 Packing Gland
14 54-7508 Spring
15 54-7530-K Rear Cap Kit
16 54-7527 Heat Guard (Accessory) (0811-7500-1)
17 54-7510-K Bracket Kit
18 54-7519-K Hose Retainer (0811-7500-2, 0811-7500-3)

Tips

PART NUMBER 9-XXX-75 (Tips rated for use at 7500 psi)
All of the following tips will have a grey tip handle

Orifice 4" Spray Pattern 6" Spray Pattern 8" Spray Pattern 10" Spray Pattern 12" Spray Pattern 14" Spray Pattern
.007"   307
.009"   309 409 509
.011" 211 311 411 511 611
.013" 213 313 413 513 613 713
.015" 215 315 415 515 615 715
.017" 217 317 417 517 617 717
.019"   319 419 519 619
.021"     421 521 621
.023"       523 623
.025"       525 625
.027"         627
.031"         631
.035"     435   635



Accessories

Part No. Description
72-2332 Swivel Adapter 1/4” M x 1/4” F
72-2333 Swivel Adapter 3/8” M x 1/4” F
72-2340 Swivel Adapter with inlet filter (60 Mesh)
72-2341 Swivel Adapter with inlet filter (100 Mesh)
54-1836 60 Mesh filter
54-1835 100 Mesh filter
52-5208 36” Airless Tip Extension
52-5209 60” Airless Tip Extension
72-2339 High Pressure “Y” Block (7,250 psi max)



Hoses

Part No. Description
71-4870 Hose Whip 1/4” F x 3/8” M 3 ft, 10,000 psi working pressure
71-4860 Hose 3/8” x 25 ft 8,000 psi working pressure
71-4861 Hose 3/8” x 50 ft 8,000 psi working pressure
