Spare Parts

Item No.	Description	Part No.

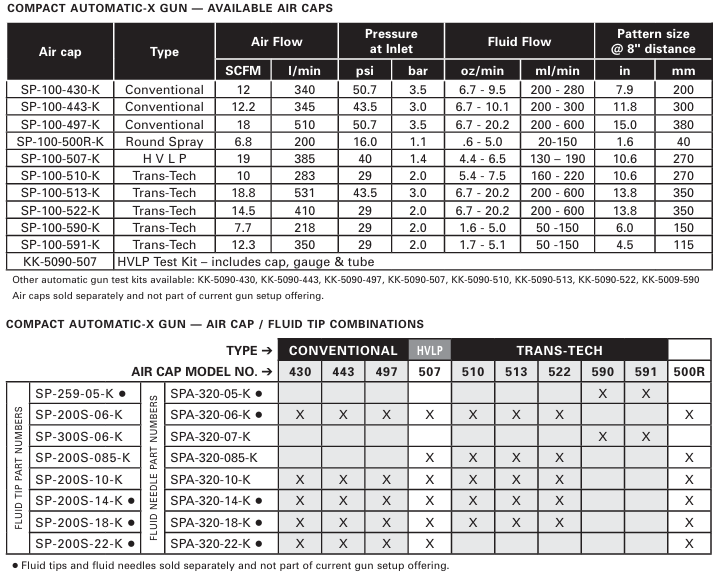

1	See chart and reference on page 6. Air cap with retaining ring, seals and no indexing ring.	SP-100-xxx-K
2	Fluid tip with air separator seal SPA-27-K5. See chart and reference on page 6. Ø 0.6 / 0.85 / 1.0 mm	SP-200S-xx-K
4	Locator ring for indexed air cap (optional item)	SPA-112
5	Air separator seal (kit of 5 rings)	SPA-27-K5*
6	Screw M4 x 25 kit of 4 (Torx 20)	SPK-108*
8	Spray head – Compact-X	SPA-50P
8a	Fixing rod on base plate	SPK-108*
9	Packing seal for needle	SPK-107*
10	O-ring	SPK-109*
11	O-ring gasket	SPK-107*
12	Gun body for Compact-X ( -G = Green / -B = Blue )	SPA-1-CMAX-G SPA-1-CMAX-B
12a	Locating air tube	SPK-108*
12b	O-ring	SPK-109*
13	Air valve (Fan & Atomizing air)	AGG-403
14	O-ring	SPK-104*
15	Piston assembly	SPA-60X-K
15b	Piston for air valve	SPA-60X-K
15c	O-ring for small piston	SPK-104*
15d	O-ring for large piston	SPK-104*
16	O-ring piston to needle	SPK-104*
17	Piston Spring	SPK-105*
18	Stainless steel needle 0.7 / 0.85 / 1.0 See chart and reference on page 6. Plastic tip 1.0 / 1.4	SPA-320-xx SPA-320P-xx
19	Housing	SPA-3
20	Ring and ball (2)	SPK-106*
21	Ring	SPK-106*
22	Needle Spring	SPK-105*
23	Spring cap	SPK-105*
24	Spring washer	SPK-105*
25	Adjusting knob	SPK-106*
27	Manifold assembly – complete with lever and air valves	SPA-55-N-K
28	Locking lever	SPA-56-K*
28a	Retaining screw of locking device	SPA-56-K*
32	Kit of 2 plugs which replace manual air valve (13) — for remote fan/atom	SPA-111-K2*
33	Kit of retaining ring with gasket	SPK-102-K*
34	Recirculation Port Plug (kit includes hex wrench SPA-30)	SPK-116*
