Description
Not sure which deflector cone to start with? CET will match you to the right setup.
What’s Included
In the Box — 2335844
The PEM-X1 R ships with all three deflector cones so you can match the spray pattern to the workpiece immediately. A control unit and gun cable are required separately — or as part of a Sprint 2 system or Spray Pack (2467124).
| Component | Part No. |
|---|---|
| PEM-X1 R Gun Body | 2335844 |
| Electrode Holder X1 R w/ Nozzle | 2322493 |
| Deflector Cone D18 | 2321981 |
| Deflector Cone D25 | 2321980 |
| Deflector Cone D34 | 2321171 |
| Deflector Cone Sleeve | 2320503 |
| Protective Wedge | 2320488 |
| Gun Hook | 2320330 |
| Wedge Tool | 2324205 |
| Hose Take-Up D10-12 | 2322761 |
| Union Nut X1 | 2320464 |
Application Guide
When to Choose
Round Spray
Deflector cones produce a 360° conical spray pattern that wraps powder around complex shapes, into recesses, and behind edges that a flat fan pattern simply can’t reach. The round spray PEM-X1 R is the right starting point when your workpieces have significant 3D geometry.
For predominantly flat panels or sheet metal, the PEM-X1 Wide Spray (2322587) delivers faster coverage. The gun body is identical — you can always add a flat spray electrode holder and nozzle later.
Ideal Applications
Complex 3D Shapes
Tubular & Round Parts
Recesses & Corners
Faraday Cage Areas
Welded Fabrications
Castings & Forgings
Cone Selection Guide
Want flat spray too? Add the electrode holder X1 F (2322529) and a flat spray nozzle (2321976) to give your 2335844 wide spray capability. Same gun body — swap the front end in seconds. Keep both setups on hand and switch by application.
Reach Deeper
Nozzle Extensions
Pair extensions with your deflector cones to reach deep inside cabinets, radiators, and box sections without repositioning the workpiece.
Getting Started
What You Need to Start Coating
The 2335844 is the gun only. Choose one of these paths to complete your system:
Option 1: Add to Existing System
Already have a Sprint 2 with a control unit? Add a gun cable (6m or 15m) and connect. Great for adding round spray capability alongside an existing flat spray gun.
Option 2: Spray Pack

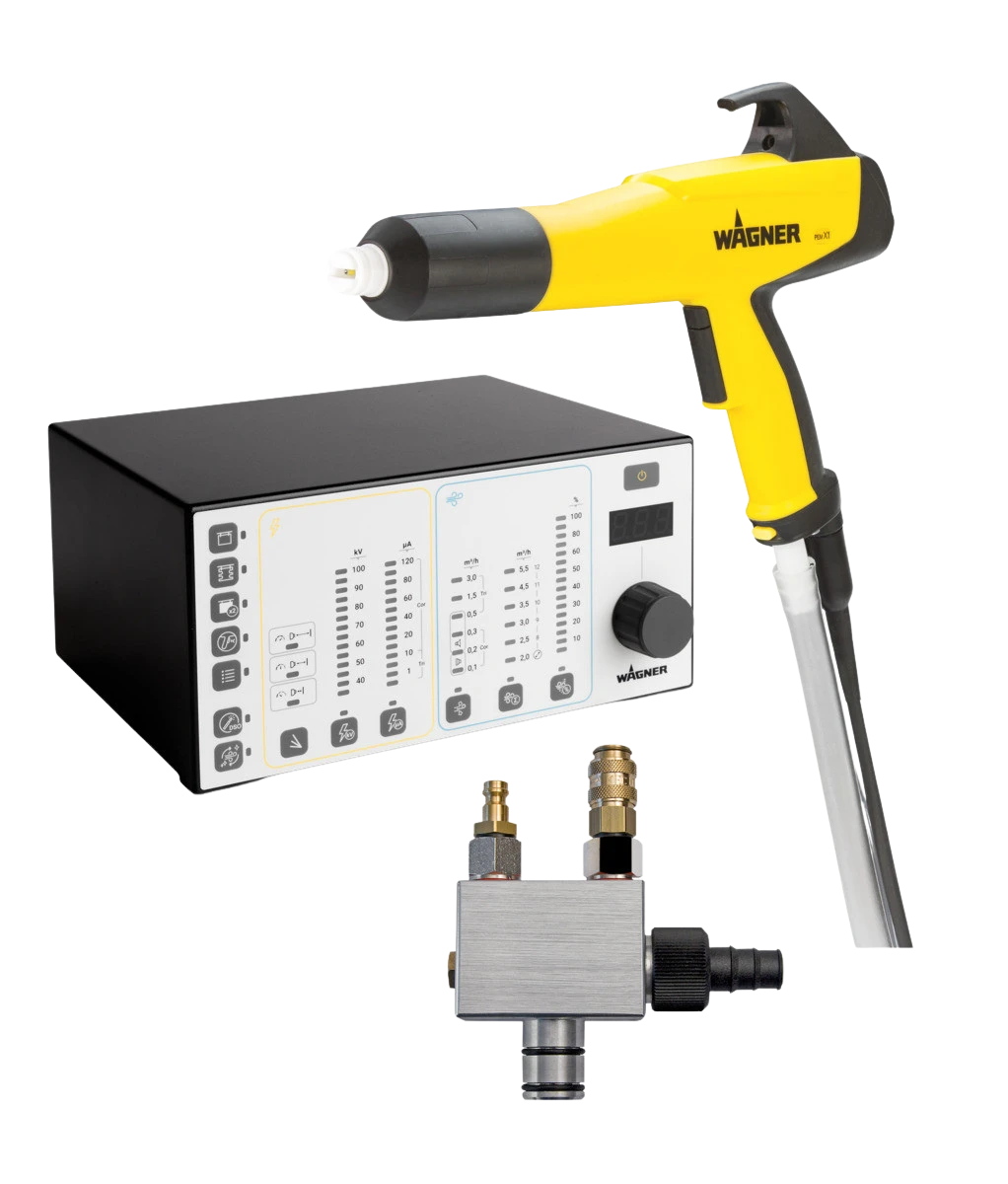

The Spray Pack (2467124) bundles a PEM-X1 gun, WACON Sprint 2 X control, PI-F1 injector, and powder hose set. Core components for building a system. Note: ships with flat spray — swap with your 2335844 front end for round spray.
View Spray PackOption 3: Complete Sprint 2
Full mobile system with trolley, injector, control unit, and gun. Choose Sprint 2 B (box feed) or Sprint 2 H (hopper feed). Expert versions also available.
View All SystemsCommon Questions
Frequently Asked Questions
What’s included with 2335844?
Gun body, electrode holder R w/ nozzle (2322493), all three deflector cones (D18/D25/D34), cone sleeve, wedge, hook, wedge tool, hose take-up, union nut. Control unit and cable required separately.
Which deflector cone should I use?
D18 for tight recesses and channels. D25 is the general-purpose default for most 3D shapes. D34 for widest coverage on larger workpieces. All three included — try each on your parts to find the best match.
Can I switch to flat spray?
Yes. Same gun body as the 2322587 Wide Spray. Add the electrode holder F (2322529) and flat nozzle (2321976). Swap the front end and you have wide spray. Keep both setups and switch by job.
What control unit do I need?
Any WACON Sprint 2 control: X, XE, or Expert. Easiest path from scratch is the Spray Pack (2467124) or a complete Sprint 2 system.
CoronaStar compatible?
Yes. The CoronaStar (2322868) plugs into any PEM-X1 for smoother finishes and reduced orange peel. Works with both flat and round spray configurations.
Where are spare parts?
CET stocks all PEM-X1 replacement parts. View the spare parts page for exploded diagrams with every part linked to its store page.
Also Consider
Other PEM-X1 Configurations
Why Buy From CET
The CET Difference
Authorized Wagner Distributor
Genuine parts, factory support, US fulfillment.
Cone Selection Help
Not sure which cone fits your parts? Call 586-210-0555 — CET will recommend the right setup for your workpiece geometry.
Full Parts In Stock
Gun, cones, electrodes, extensions, CoronaStar, and all spare parts stocked.
PEM-X1 Manual
Operating manual, spare parts diagrams, nozzle configs.
Contact CET for PEM-X1 R round spray configuration help, cone recommendations, or system pricing. 586-210-0555 · sales@cetinc.com
