Wagner Powder Coating Systems

(Showing 5 of 5)

Wagner · Authorized Distributor

Sprint 2
Powder Coating Systems

Five configurations covering every manual powder coating need — from portable cup gun case sets to full Expert systems with touchscreen control, Wagner Wizard, and integrated powder scale.

PEM-X1 GunAFC TechnologyQuick-Link InjectorATEX Certified

Not sure which Sprint 2 system fits your operation?  CET will match you to the right configuration.

586-210-0555✉ sales@cetinc.com

Expert Tier

Sprint 2 Expert Systems

7-inch touchscreen, Wagner Wizard digital assistant, integrated powder scale, Airclean automated cleaning, process documentation & data export. The master solution for production manual coating.

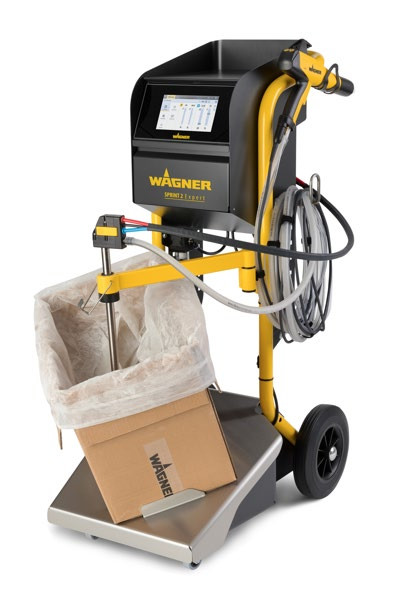

Wagner Sprint 2 Expert B W Box Feed Powder Coating System
ExpertBox FeedTouchscreen

Sprint 2 Expert B W

2473753 · Box Feed · Vibrating Table

Powder from original box on electric vibrating table. WACON Sprint 2 Expert touchscreen with Wagner Wizard, integrated powder scale, Airclean-ready, Quick-Link B injector with scraper ring, multifunctional head module. Expandable to dual gun. Includes PEM-X1 gun. US 115V.

View System

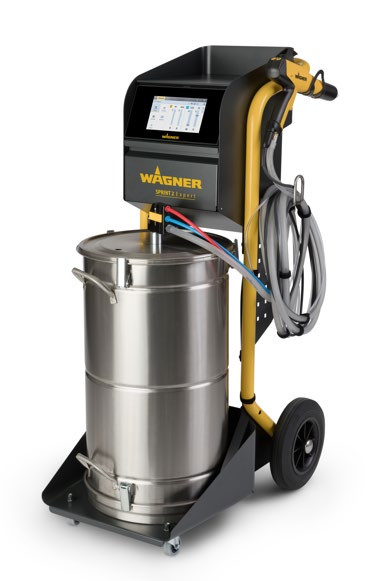

Wagner Sprint 2 Expert H W Hopper Feed Powder Coating System
ExpertHopper FeedTouchscreen

Sprint 2 Expert H W

2473767 · Hopper Feed · 25L/60L Tank

For 25L or 60L stainless steel fluidized tanks (ordered separately). WACON Sprint 2 Expert touchscreen with Wagner Wizard, integrated powder scale, Airclean-ready, Quick-Link H injector, multifunctional head module. Includes PEM-X1 gun. US 115V.

View System

Standard Tier

Sprint 2 Standard Systems

WACON Sprint 2 XE control with rotary knob, 50 recipes, AFC air flow control, DSO surface optimizer. Proven performance at an accessible price point.

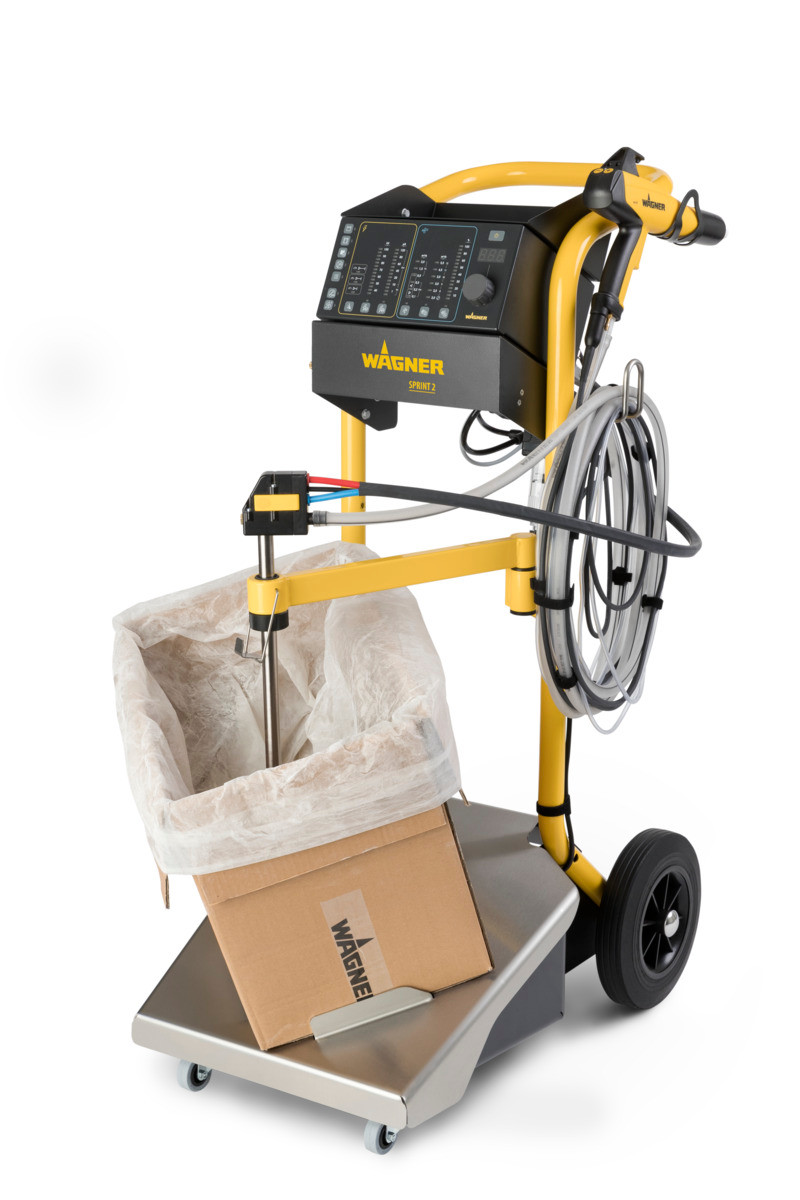

Wagner Sprint 2 B Box Feed System
StandardBox Feed

Sprint 2 B

2466208 · US 115V

Box feed with vibrating table. WACON Sprint 2 XE, Quick-Link B injector, swivel arm, mobile base. Includes PEM-X1.

View System
Wagner Sprint 2 H Hopper Feed System
StandardHopper Feed

Sprint 2 H

2466209 · US 115V

Hopper feed for 25L/60L tanks (sold separately). WACON Sprint 2 XE, Quick-Link H injector, mobile base. Includes PEM-X1.

View System

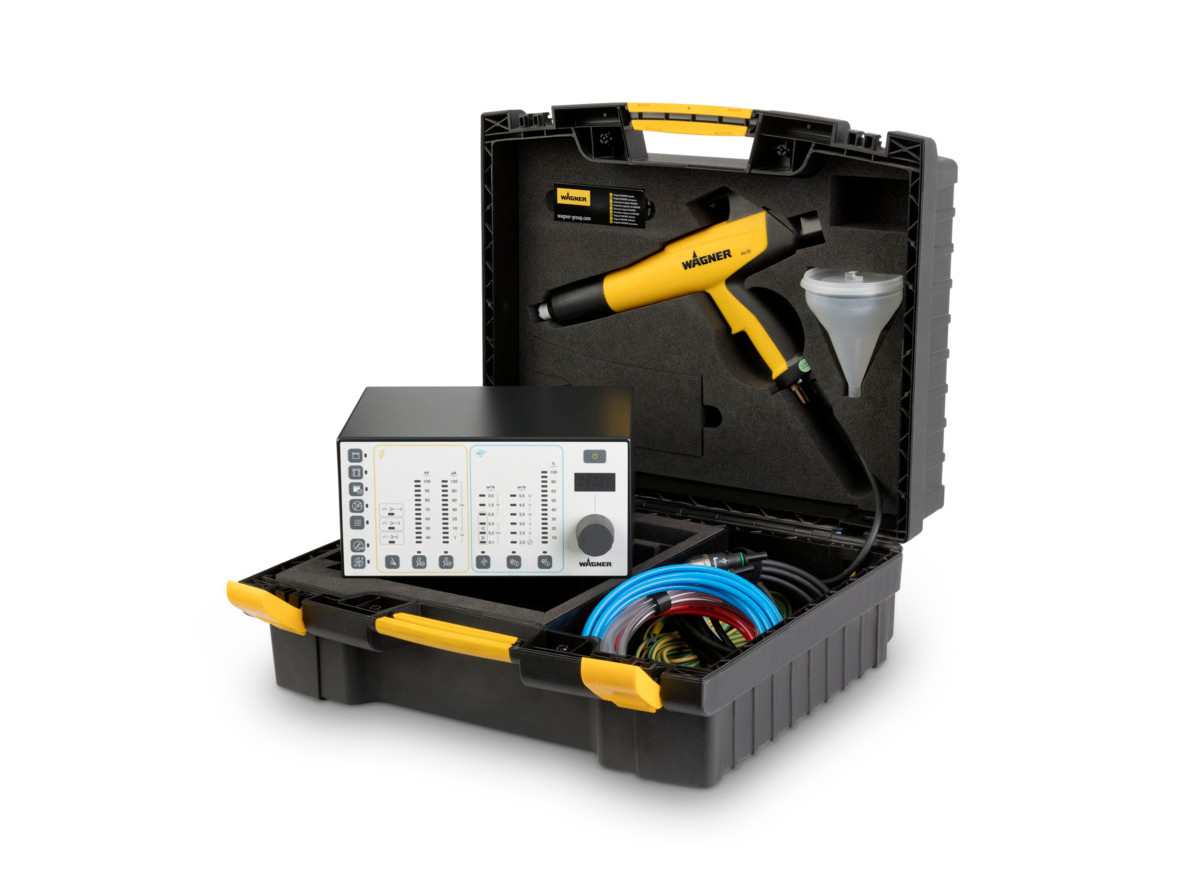

Wagner Sprint 2 Cup Gun Case Set
StandardCup Gun

Sprint 2 CG Case Set

2467115 · Portable Case

Portable case set with PEM-X1 CG cup gun, WACON Sprint 2 X, cable. Case doubles as stand. Fast color changes for small batches and lab work.

View Case Set

Side-by-Side

Compare All Sprint 2 Systems

Key differences at a glance. All systems include the PEM-X1 gun (or CG cup gun) and AFC technology.

FeatureExpert B WExpert H WSprint 2 BSprint 2 HCG Case Set
Powder Feed Original box 25L/60L tank* Original box 25L/60L tank* Cup
Control Unit WACON Expert WACON Expert WACON Sprint 2 XE WACON Sprint 2 XE WACON Sprint 2 X
Display 7" Touchscreen 7" Touchscreen Rotary knob + LEDs Rotary knob + LEDs Rotary knob
Wagner Wizard ✓ ✓ — — —
Powder Scale ✓ ✓ — — —
Airclean Ready Optional Optional — — —
Process Data Export ✓ USB ✓ USB — — —
AFC Technology ✓ ✓ ✓ ✓ ✓
DSO Function ✓ ✓ ✓ ✓ ✓
Gun PEM-X1 PEM-X1 PEM-X1 PEM-X1 PEM-X1 CG
Injector Quick-Link B Quick-Link H Quick-Link B Quick-Link H Integrated
Quick-Link Cleaning ✓ + scraper ring ✓ ✓ + scraper ring ✓ —
Dual Gun Ready ✓ On request Optional On request —
Best For Full-featured production High-volume production Standard production Standard high-volume Small batch / lab / color changes

* Tank not included, ordered separately (25L or 60L). All B/H systems include mobile trolley base. US versions shown (115V/60Hz).

Expert Advantage

What Makes Expert Different

Wagner Wizard

Digital coating assistant: select workpiece geometry, size, structure, thickness, and powder type in 5 steps. Wizard determines the ideal recipe and recommends nozzle, extension, and gun distance.

7" Touchscreen

Intuitive menu navigation replaces the rotary knob. Recipe management, error history, operating hours, maintenance counter, and user management all accessible via touch.

Integrated Powder Scale

Scale under the base plate monitors powder consumption. Auto-logs weight by user, recipe, and coating period. Export data via USB for analysis and reporting.

Airclean Kit

Optional automated internal cleaning of hose and gun via compressed air. Color change in under 30 seconds. Airclean Remote with magnetic feet for flexible positioning.

Process Documentation

Export production and service logbooks via USB. Optional EtherCAT interface for connection to PLCs, robot technology, or cloud platforms like COATIFY.

Multifunctional Head Module

Standardized perforated plate structure with dust-protected storage and hanging options. Space for second control unit for dual gun expansion.

All Systems Include the PEM-X1 Gun

490g, 100kV cascade, up to 480 g/min with Quick-Link injector. Flat spray, round spray, extensions, and CoronaStar compatible.

View PEM-X1 Gun

Common Questions

Frequently Asked Questions

Standard vs. Expert?

Standard uses WACON Sprint 2 XE with rotary knob and 50 recipes. Expert upgrades to a 7" touchscreen with Wagner Wizard, powder scale, process documentation, Airclean automated cleaning, and multifunctional head module. Both include AFC and DSO.

Box feed (B) vs. hopper feed (H)?

Box feed draws directly from the original powder box on a vibrating table — simpler color changes, less cleaning. Hopper feed uses 25L or 60L stainless steel tanks for sustained, consistent delivery on high-volume runs. Tanks sold separately for H models.

What is the Wagner Wizard?

Expert-only feature. A guided digital assistant: select workpiece geometry, size, coating structure, thickness, and powder type in 5 steps. The Wizard determines the ideal recipe and recommends nozzle type, extension length, and gun distance. Even inexperienced operators get professional results.

Can I expand to dual gun?

Yes — Sprint 2 B and Expert B W support expansion to a dual gun system with a second swivel arm, injector, gun, and control unit. The Expert head module has space for the second control unit. Sprint 2 H dual expansion available on request. Cup Gun case set is single gun only.

Why Buy From CET

The CET Difference

Authorized Wagner Distributor

Genuine Wagner systems and parts. Factory support, US-based fulfillment, full warranty.

Systems, Guns & Parts In Stock

Sprint 2 systems, PEM-X1 guns, spare parts, nozzles, extensions, and accessories stocked for fast shipping.

Technical Support

Call or text 586-210-0555 — CET will match you to the right system, gun, and nozzle configuration for your application.

Contact CET for Sprint 2 system pricing, configuration help, or spare parts availability.  586-210-0555  ·  sales@cetinc.com
