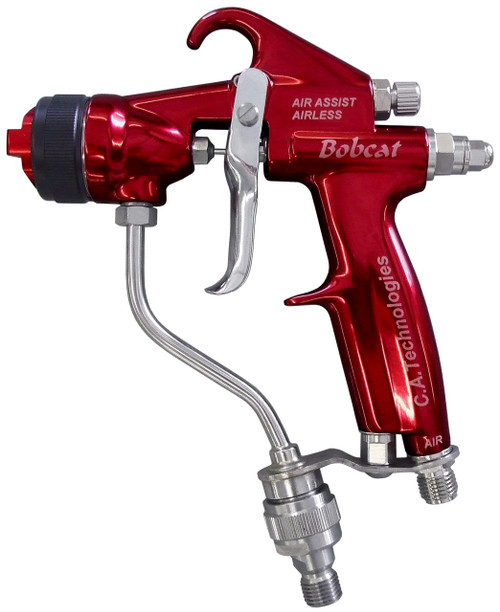

The Bobcat B715 takes the 0.015” orifice to its widest point in the Bobcat system — a 70° angle producing a 14” pattern at ~22 oz/min at 1000 PSI. It delivers the same fluid output as the B415 and B515 and B615, stretched to the maximum fan width the Bobcat lineup offers.

The B715 is the widest-fan configuration for industrial primers, medium-body industrial coatings, and medium-viscosity enamels that require 0.015” orifice delivery. When large flat panels, wide sheet metal, and high-volume production lines are wide enough that 12” (B615) still requires too many passes, the B715 at 14” is the right move — same material, same pressure, same pump, just wider coverage per pass.

Switching from B415, B515, or B615 to the B715 requires no pressure or air adjustment on the same material. Call or text 586-210-0555 to confirm the right angle for your substrate before ordering.

Fluid Tip

36-715

0.015” orifice · 70° angle · ~14” pattern

Maximum-width configuration for 0.015” — ~22 oz/min at 1000 PSI with 14” coverage for industrial primers and medium-body coatings on the widest flat panels and surfaces. Field-replaceable tip.

Air Cap

26-101

AAA HVLP air cap · ≤18 PSI at handle

Same air cap as all Bobcat configurations. The 70° tip geometry controls fan width; the air cap refines atomization independently. B415, B515, and B615 settings carry directly to B715 on the same material.

Gun Type

AAA

Air Assist Airless · 1500 PSI max

Requires AAA pump (e.g., Peak 14:1). Pressure settings from B415, B515, or B615 carry directly to B715 on the same material — the 70° angle does not affect fluid pressure requirements.

Repair Kits

How does B715 compare to B615, B515, and B415?

All four use the same 0.015” orifice and deliver ~22 oz/min at identical pressure. B415 = 40° for 8”; B515 = 50° for 10”; B615 = 60° for 12”; B715 = 70° for 14”. No pressure adjustment needed when switching between any of them on the same material. B715 is the maximum-width endpoint — choose based on your substrate dimensions.

Can I carry my B615 or B515 settings over to the B715?

Yes — fluid pressure and air pressure transfer directly when spraying the same material. The 70° angle changes only fan geometry. Swap the tip and gain 2” of additional coverage over the B615 per pass, or 4” over the B515 — no other adjustments needed.

What if I need a heavier material at 14” fan width?

The B717 uses 0.017” at 70° for 14” at ~29 oz/min, B719 uses 0.019” for ~36 oz/min, and B721 uses 0.021” for ~45 oz/min — all at 70° for the same 14” fan. Call or text 586-210-0555 to confirm the right orifice for your material.

Should I keep multiple 0.015” tips on hand?

Many industrial finishing operations do. Keeping 36-415 (8”), 36-515 (10”), 36-615 (12”), and 36-715 (14”) on the same gun body lets you match fan width to substrate width instantly with zero pressure changes between them. This is the most efficient setup for production lines running mixed-width flat panels with the same material.

What repair kit does the Bobcat use?

10-137 covers routine maintenance — all o-rings and the seat. 10-138 is the complete kit adding the air valve assembly and needle seal cartridge. CET stocks both for same-day shipment. Most in-stock orders ship same day — stocked at C.A. Technologies’ Colorado facility.

Where can I find the Bobcat parts manual?

The full parts manual with exploded diagram, tip flow chart, and all replacement part numbers is available via the download button below. CET includes documentation with every order.
